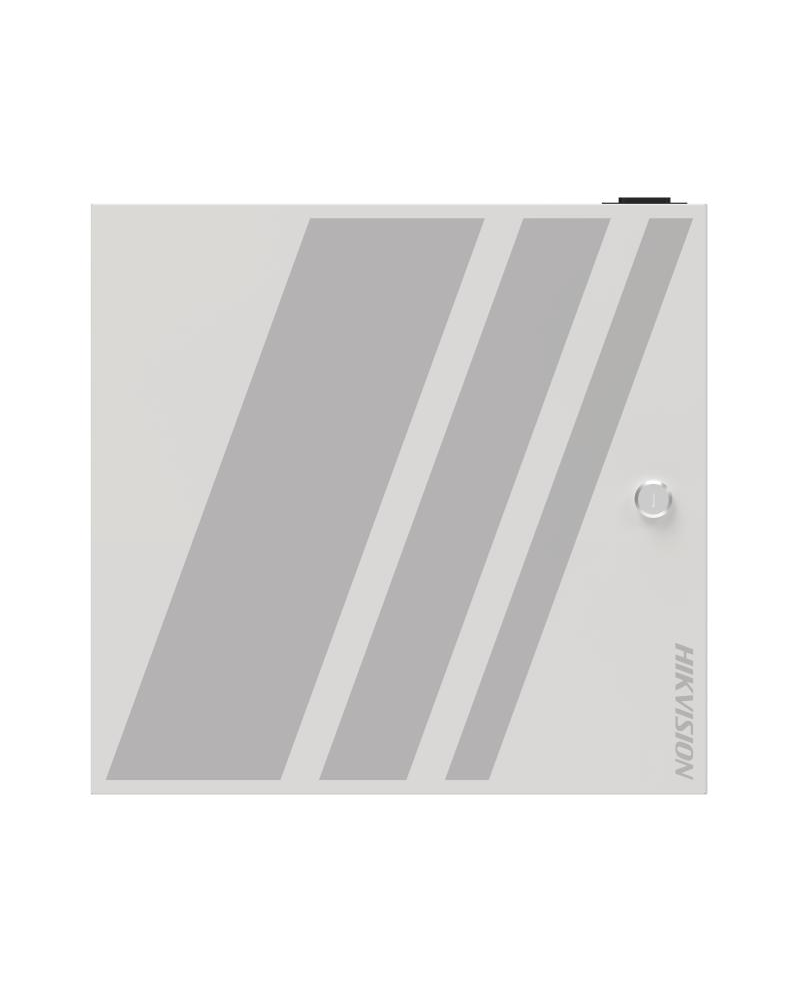

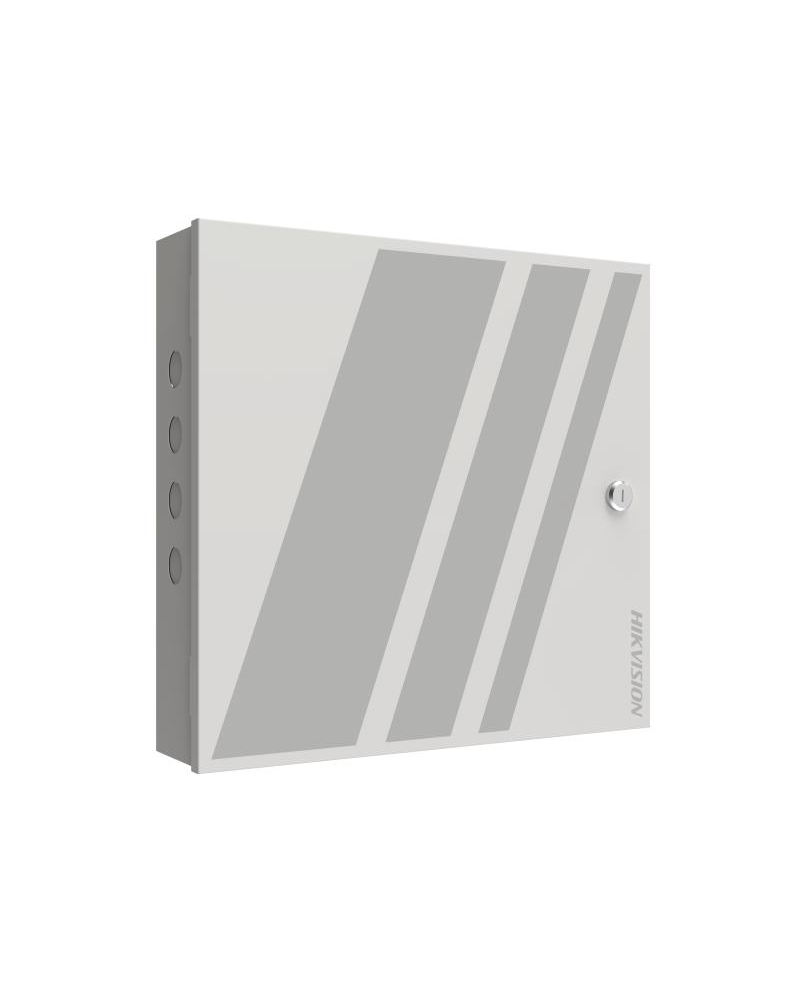

Hikvision DS-K2702WX-E1 2 POE Door Network Access Controller
Hikvision DS-K2702WX-E1 POE 2 Door Network Access Controller
- Supports 2-door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled

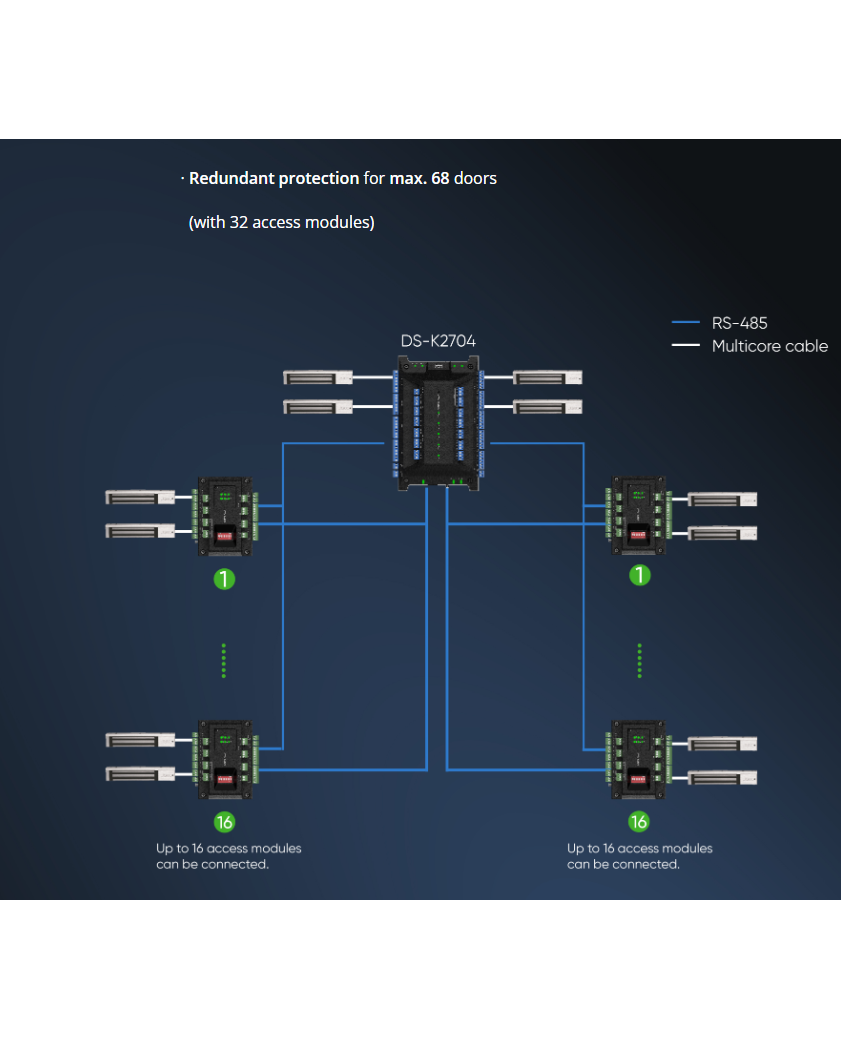

- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Powers supply by PoE, and Wi-Fi is available
DS-K2700X Series Access Controller - Unboxing & demo
