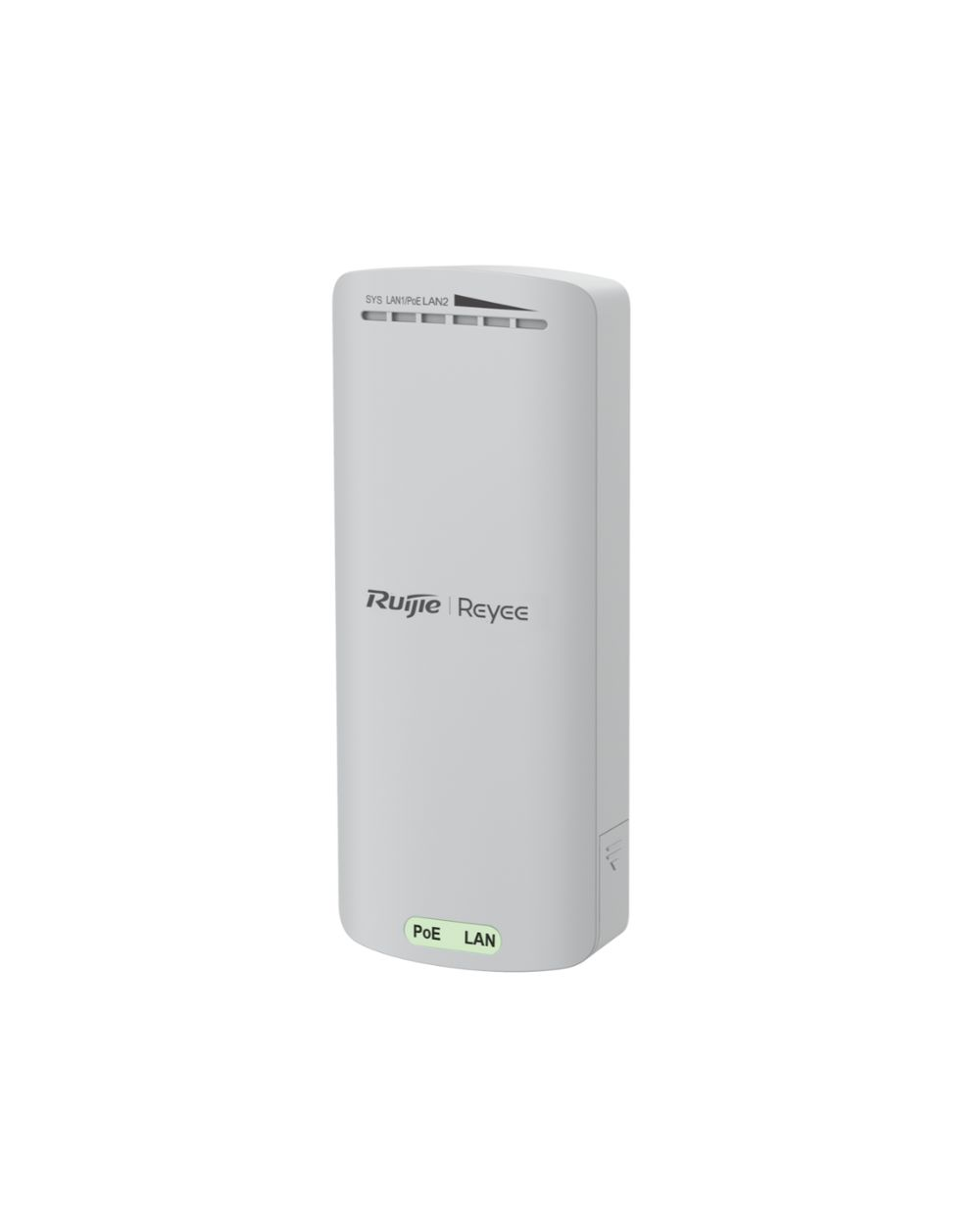

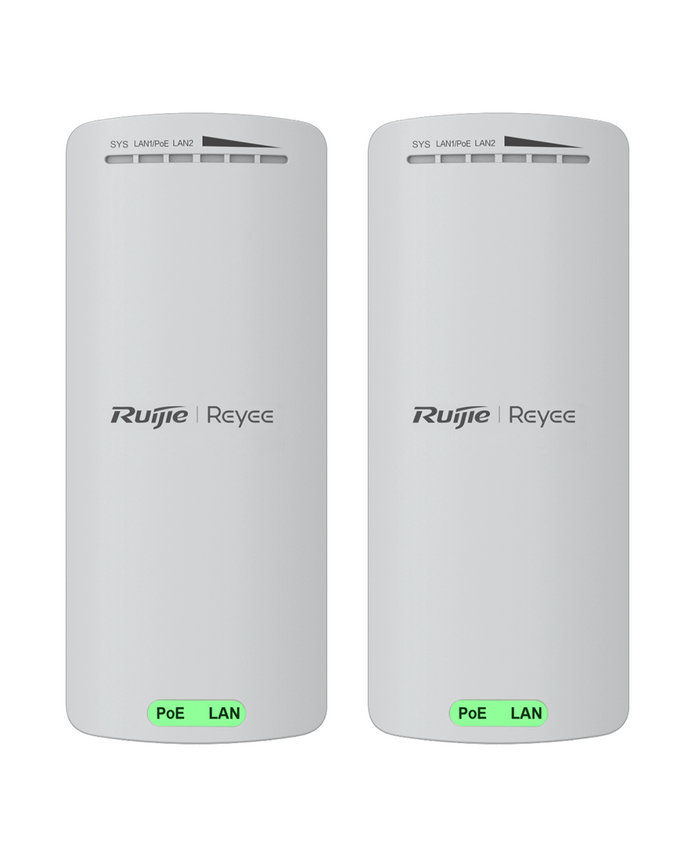

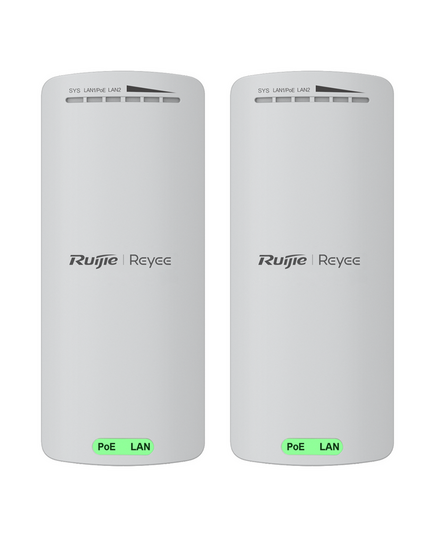

RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge Pair

Name: RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge Pair
SKU: RG-EST100-E
Price: 59.424 GBP
Availability: OutOfStock

Write a review

CODE: RG-EST100-E

£59⁴²

£49⁵² exc. VAT

Out of stock

Extend your network effortlessly with the RG-EST100-E! Enjoy real-time data transmission up to 500m, IP55 protection, and easy remote monitoring via Ruijie Cloud.

Reliable 500m wireless bridge with IP55 weatherproofing and real-time data transmission, perfect for elevators, campuses, and buildings.

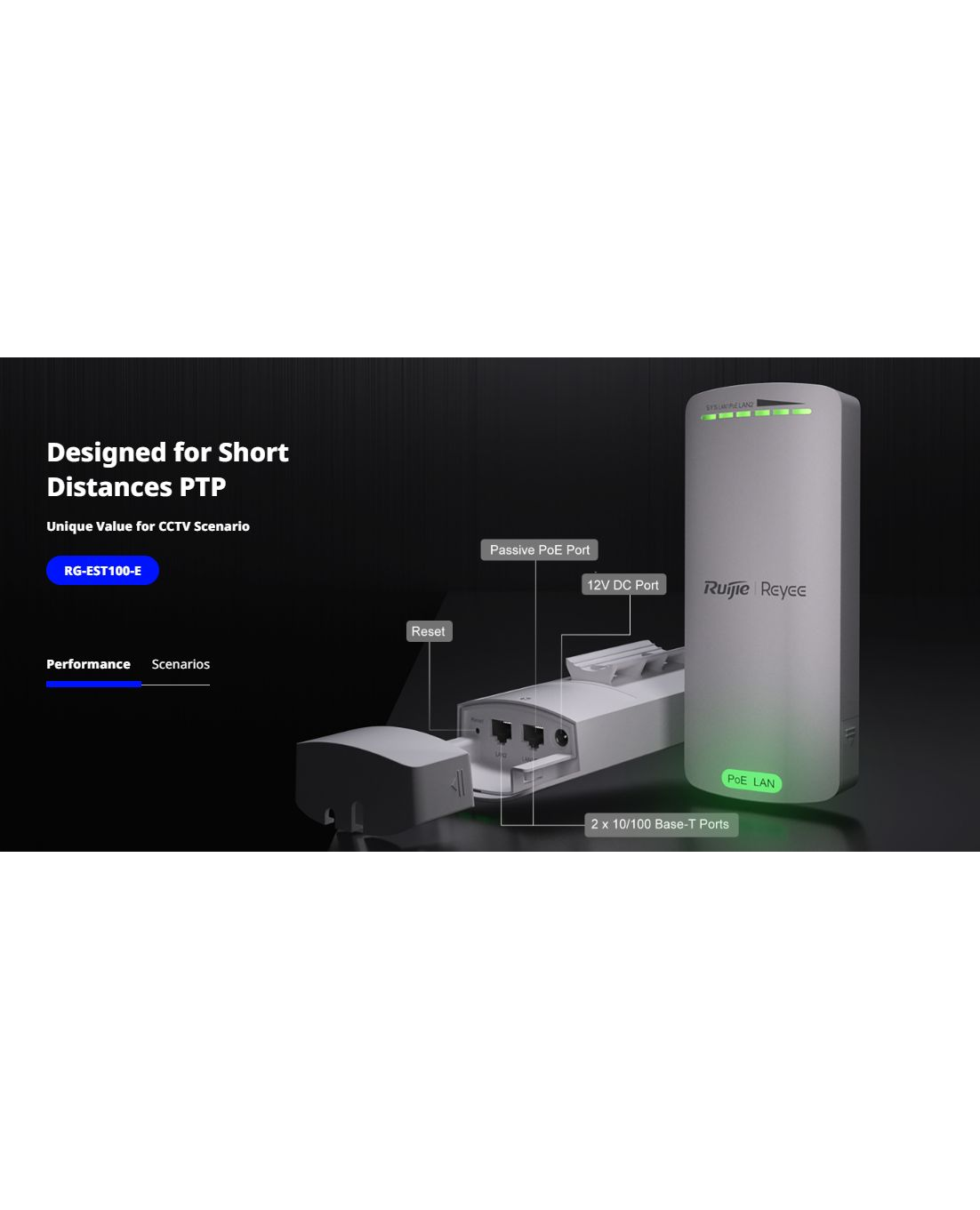

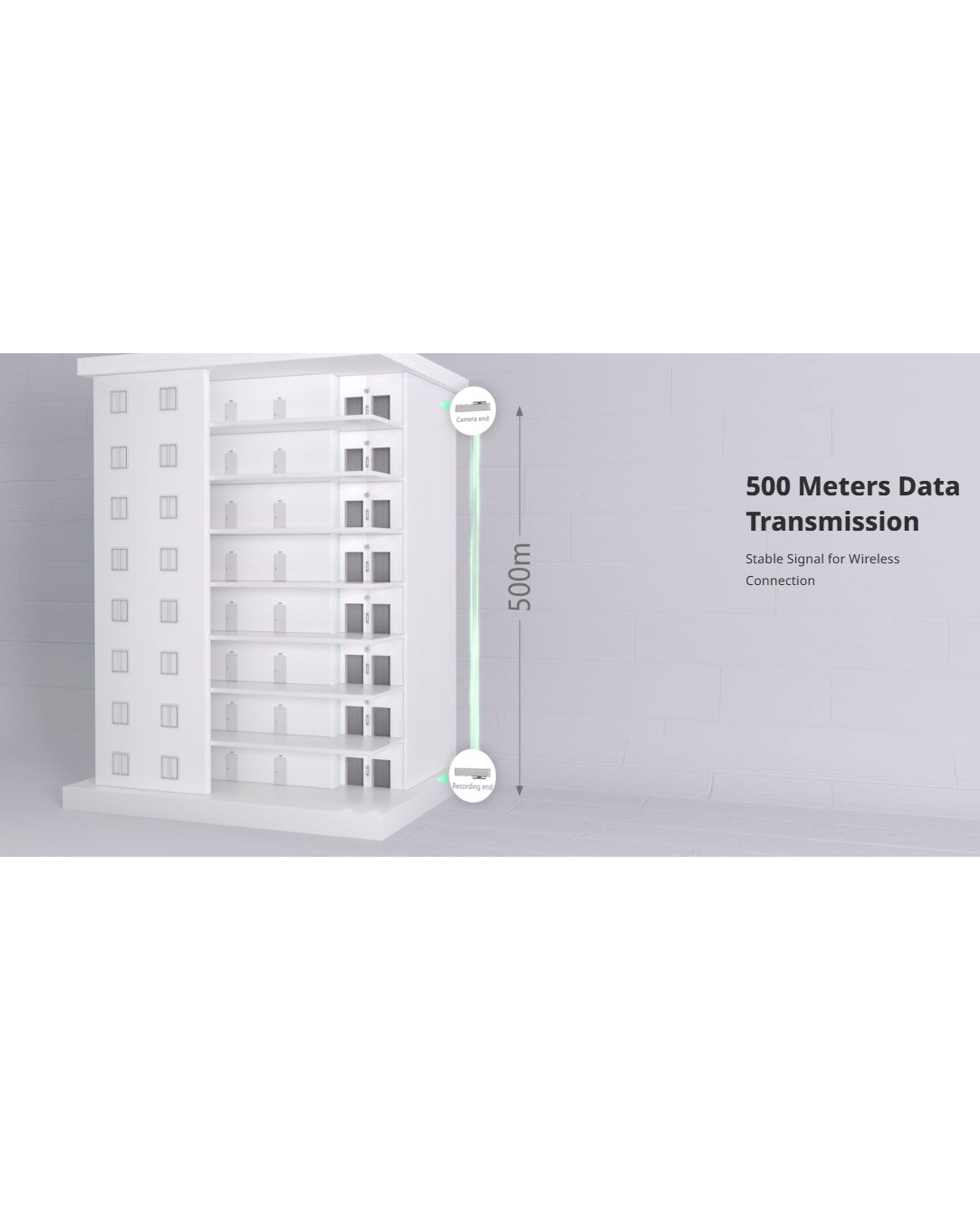

RG-EST100-E can easily transmit data from 500 m away in real time

◼ Factory-free configuration, without complex alignment

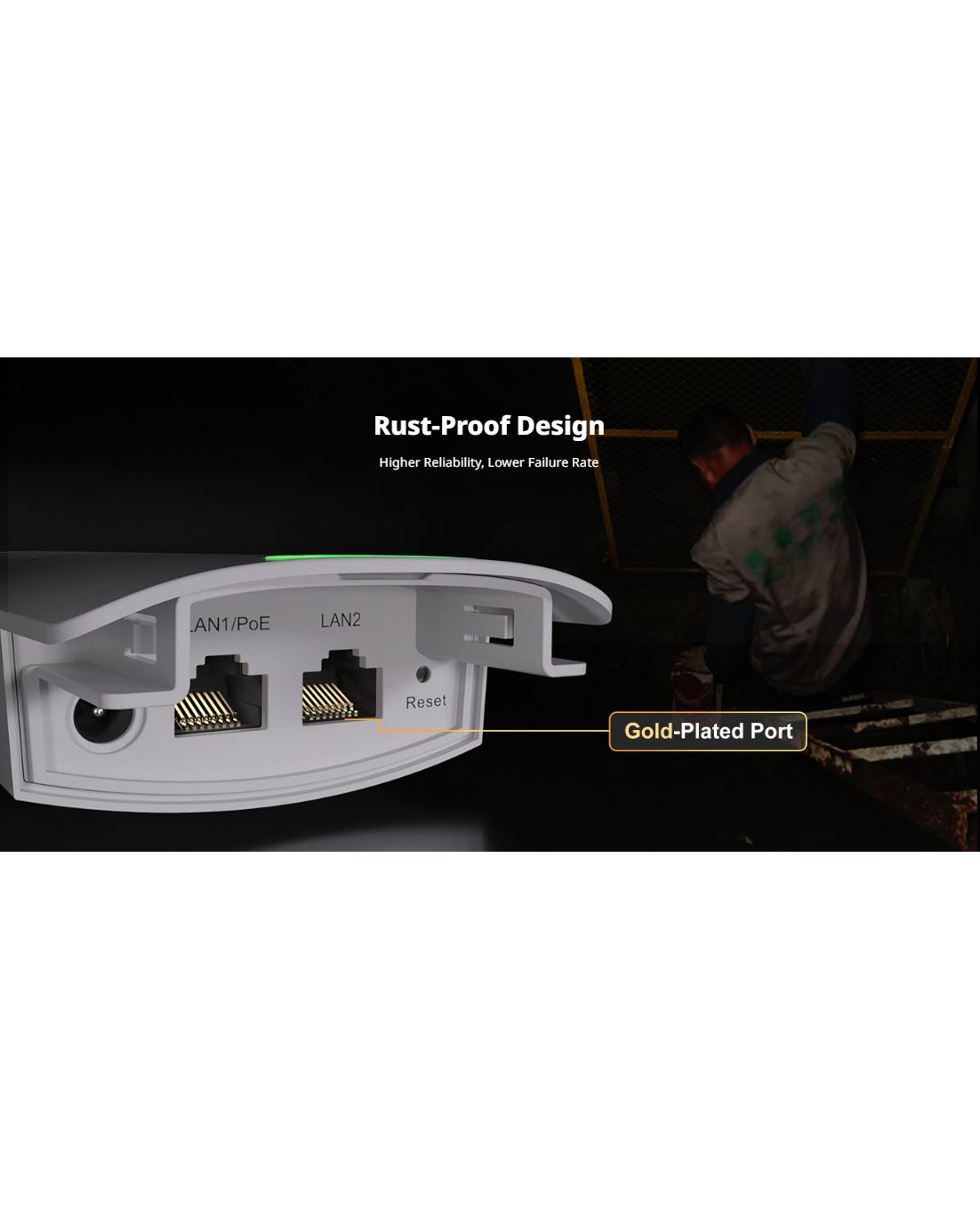

◼ IP55 Weatherproof, -30°C~60°C guarantee stable operating at outdoor environment or elevator environment

◼ Support maximum 10 x 3 MP cameras loading at 100 m, 5 x 3 MP cameras loading at 500 m

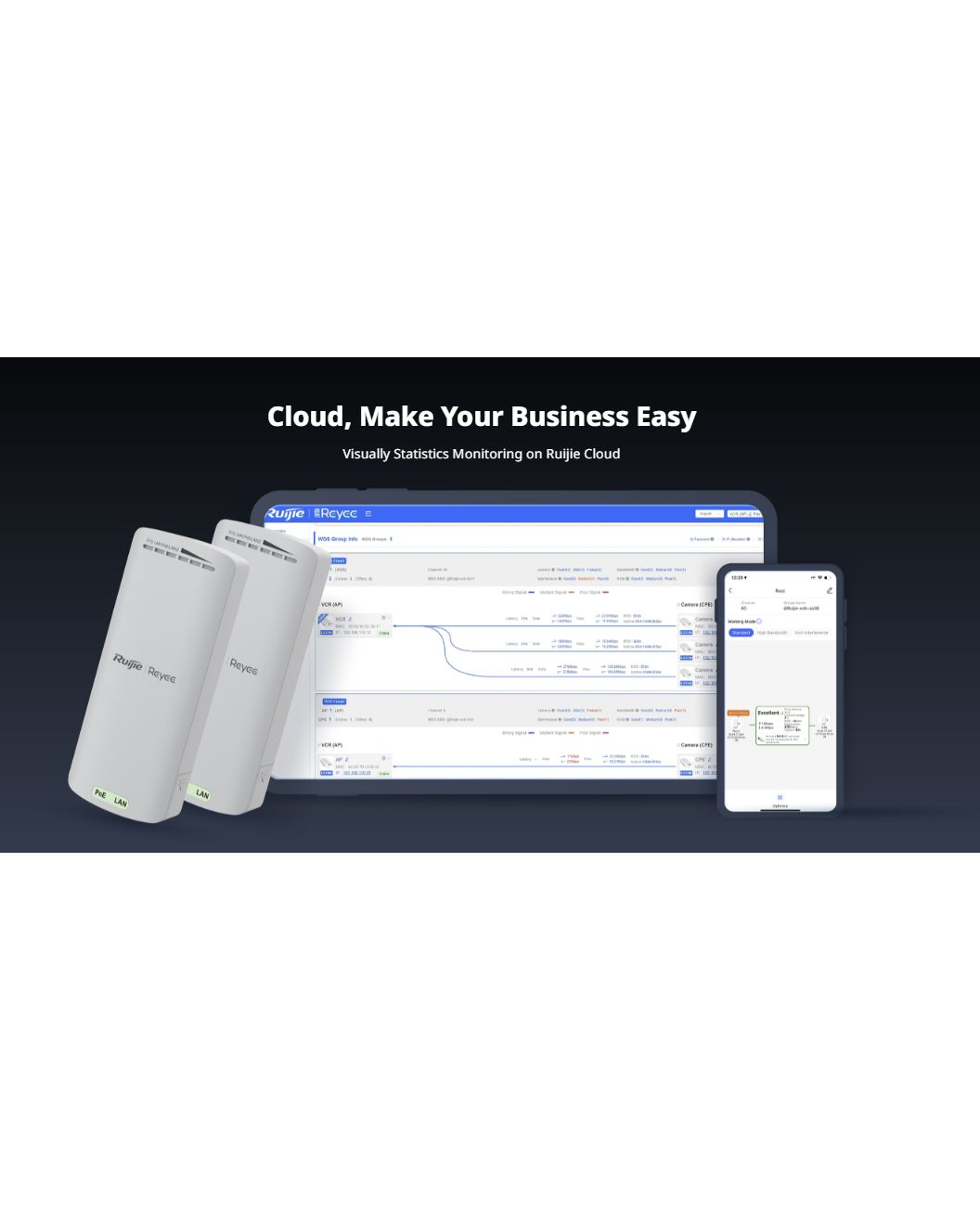

◼ Visually Intuitive statistics monitoring on Ruijie cloud, easy remote maintenance

Delivery (Free UK Mainland for orders over £120*)

Payment options

Unsure of what you need?

Description
Attachments
Video gallery
Reviews

Elevator, Campus, Building, etc.

Highlight Features
RG-EST100-E can easily transmit data from 500m away in real time
Factory-free configuration, without complex alignment
IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely

Key Specification
Radio Design-2.4 GHz Single-Band Dual-Stream
Transmission Protocol-IEEE 802.11b/g/n
Operating Band-802.11b/g/n: 2.400～2.483GHz
Antenna-Directional antennas, 8 dBi
Polarization-Horizontal: 70°, Vertical: 70°
Bridging Distance-500m (recommended)
Spatial Streams-2x2, MU-MIMO
Memory/Flash-64 MB/8 MB
Maximum Throughput-Up to 300 Mbps at 2.4 GHz
Max. Transmit Power- ≤100 mW(20 dBm) (adjustable)
IP Rating-IP55
Lightning Protection-±6 KV(Common Mode)

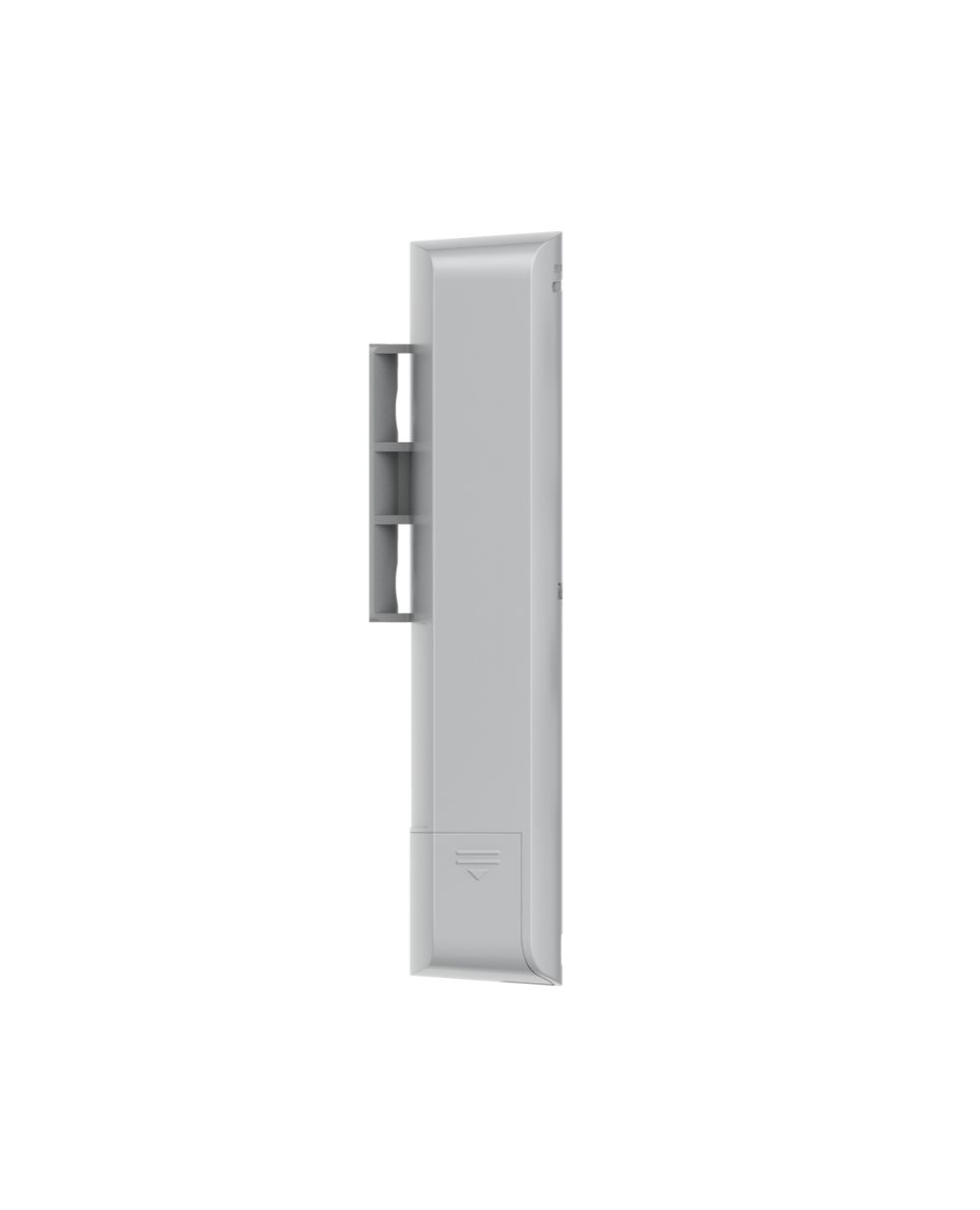

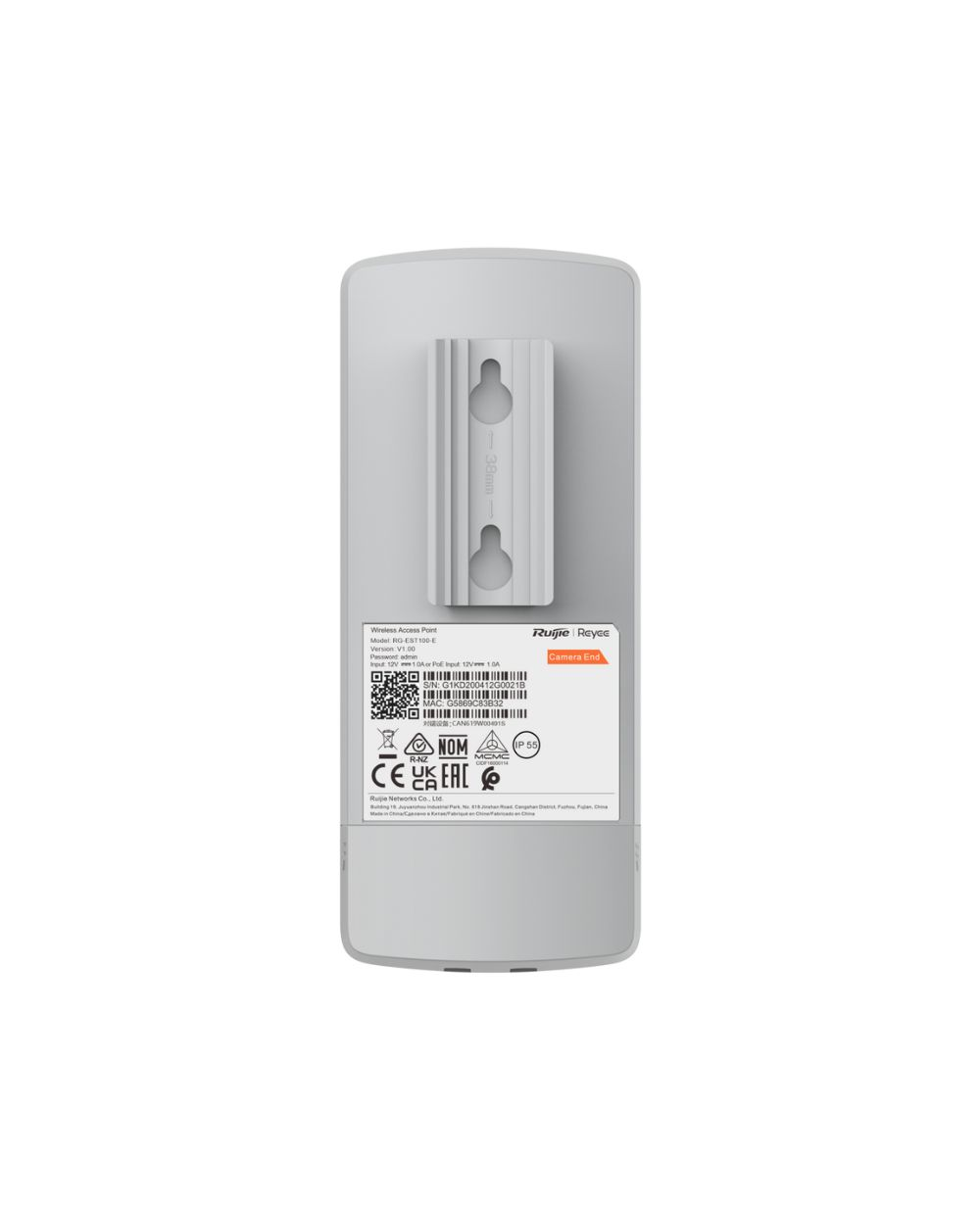

Installation-Wall-mounted/ Pole-mounted
Dimensions （D x W x H）-165.5mm×68.7mm×42mm
Weight-0.3 kg
Certification-CE

Ruijie Reyee RG-AirMetro, EST Series Wireless Bridges 3.0(1)B11P300 Configuration Guide (V1.0) (00-Ruijie_Reyee_RG-AirMetro,_EST_Series_Wireless_Bridges_3.0_1_B11P300_Configuration_Guide__V1.0_.pd, 4,205 Kb) [Download]

EST100-E User Manual (EST100-E_User_Manual.pdf, 2,768 Kb) [Download]

EST100-E Wireless bridge Firmware (EST100-E_User_Manual_kjel-v1.pdf, 2,768 Kb) [Download]

RG-EST100-E Datasheet (EST100-E_20250110__1_.pdf, 1,462 Kb) [Download]

Ruijie Reyee RG-EST100-E Wireless Bridge Installation Guide (V1.2) (00-Ruijie_Reyee_RG-EST100-E_Wireless_Bridge_Installation_Guide__V1.2_.pdf, 837 Kb) [Download]
