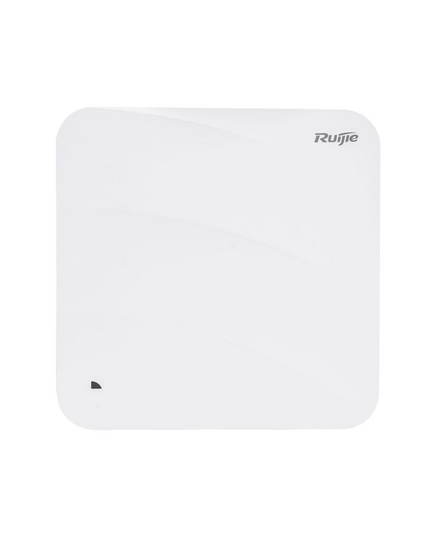

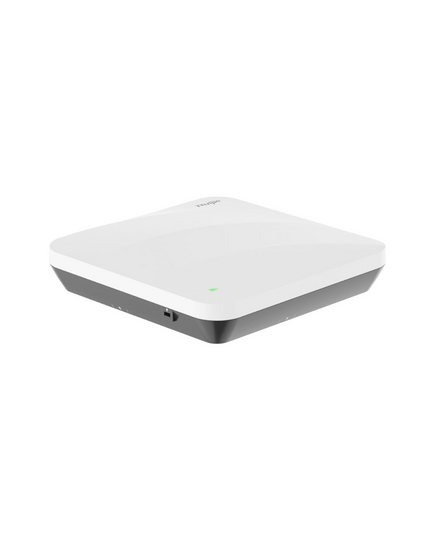

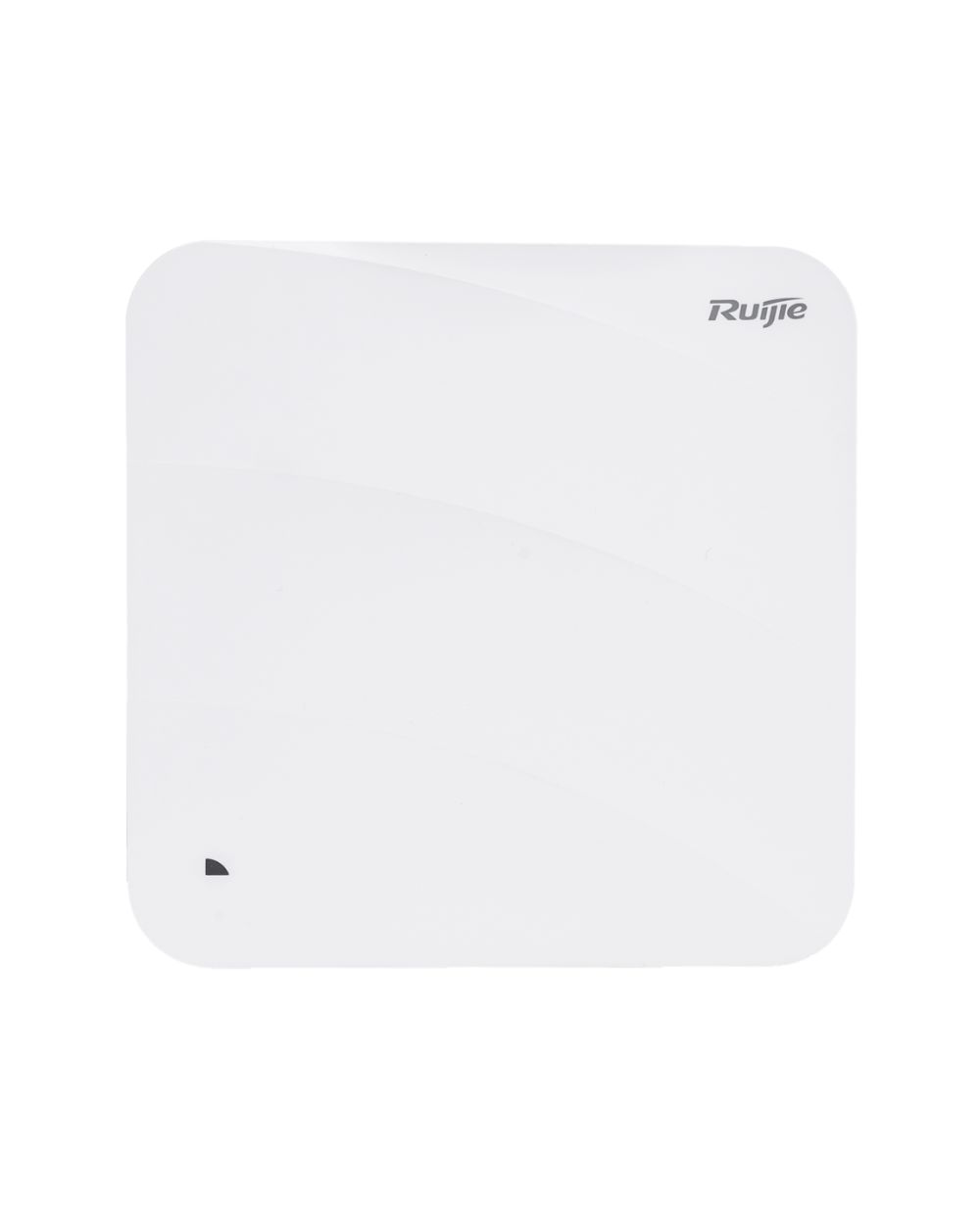

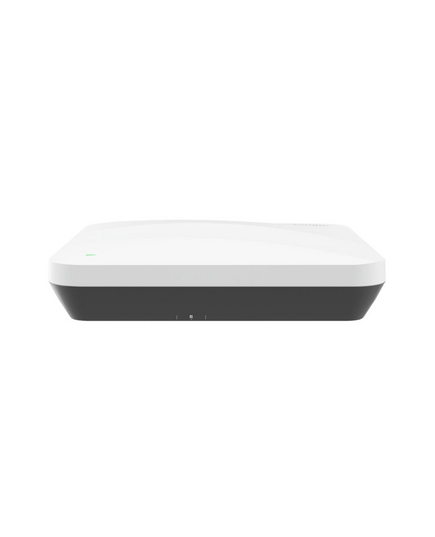

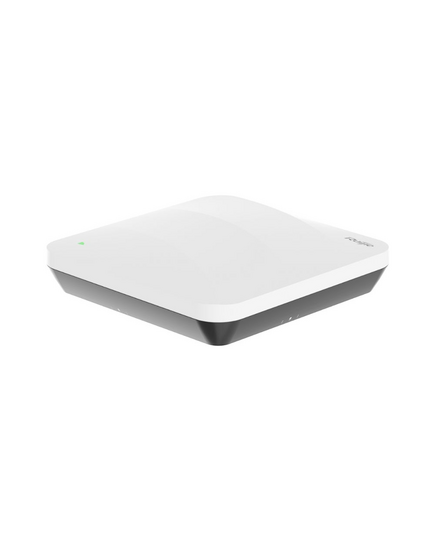

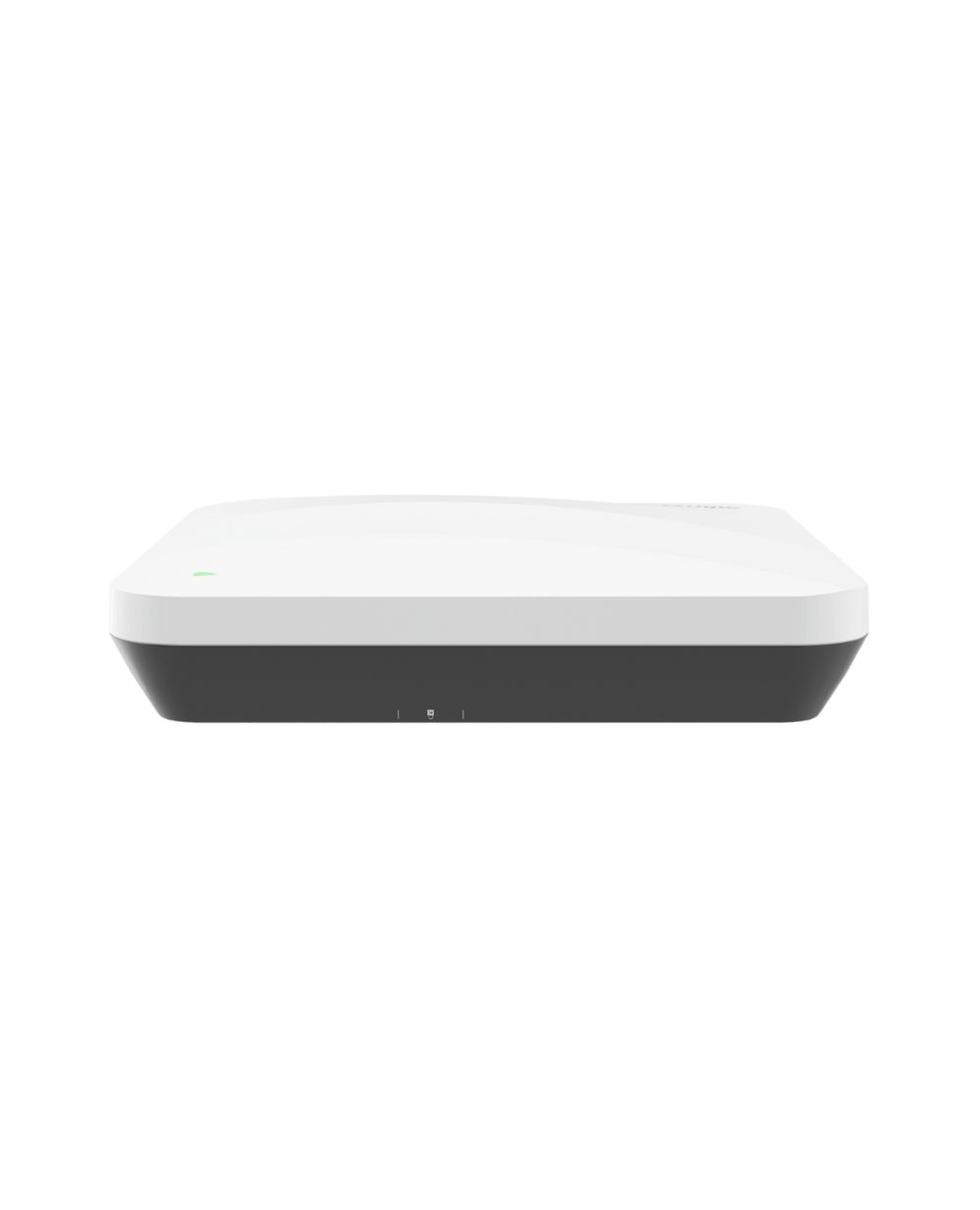

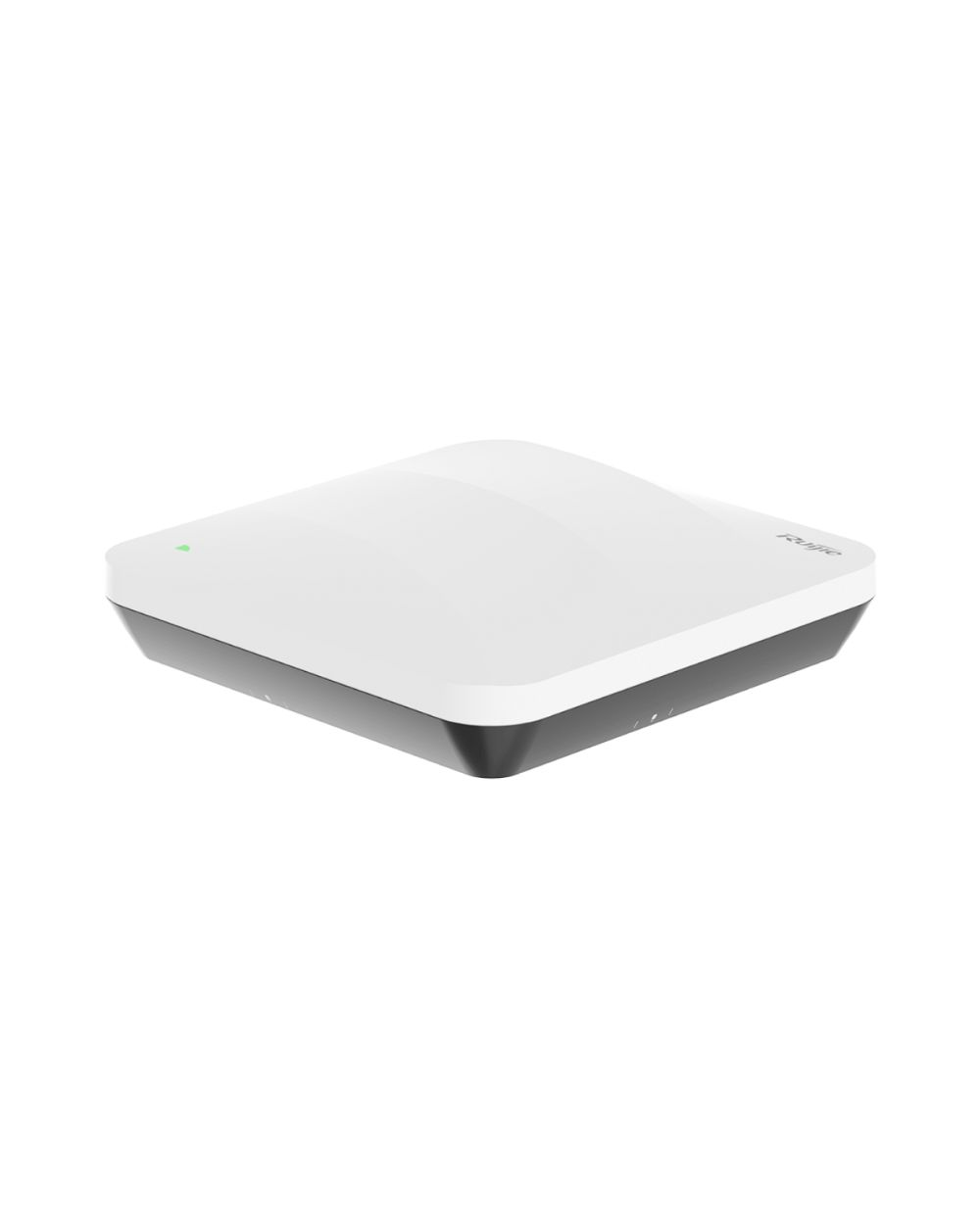

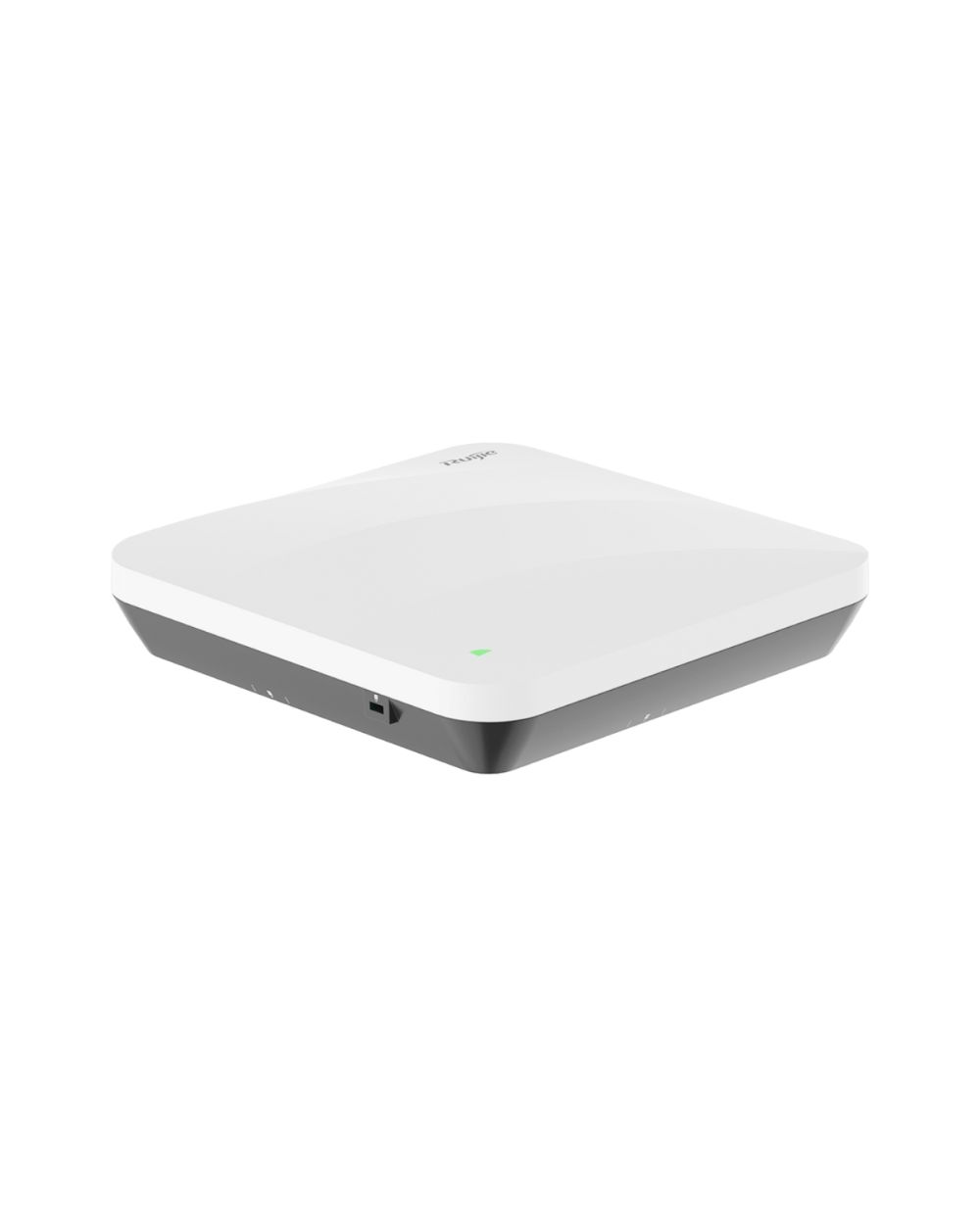

RG-AP820-L(V3), Wi-Fi 6 AX3000 Indoor AP
Indoor scenarios for higher education, government, general education, finance, and business sectors.
Highlight Features

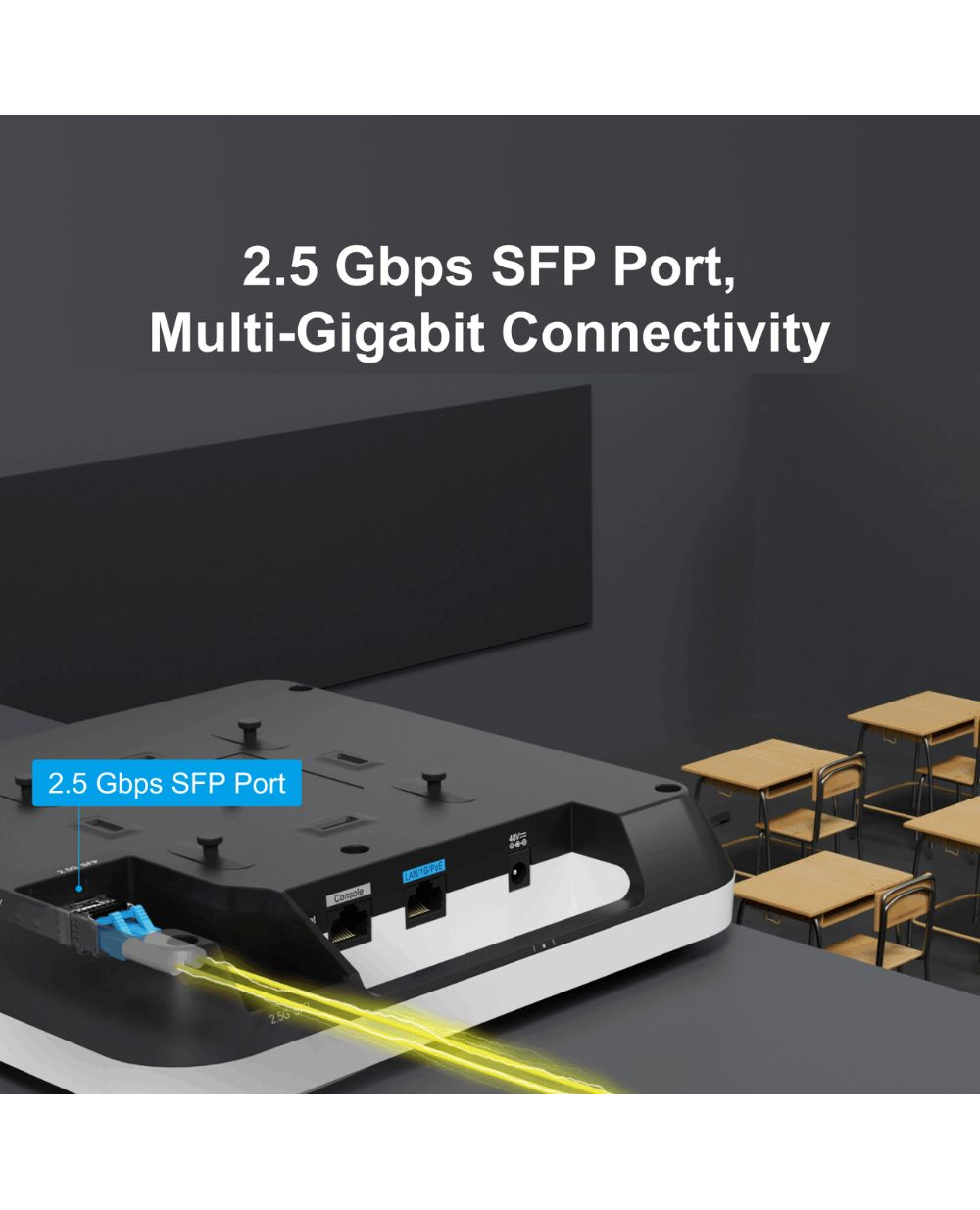

2.5 Gbps SFP Port, Multi-Gigabit Networking

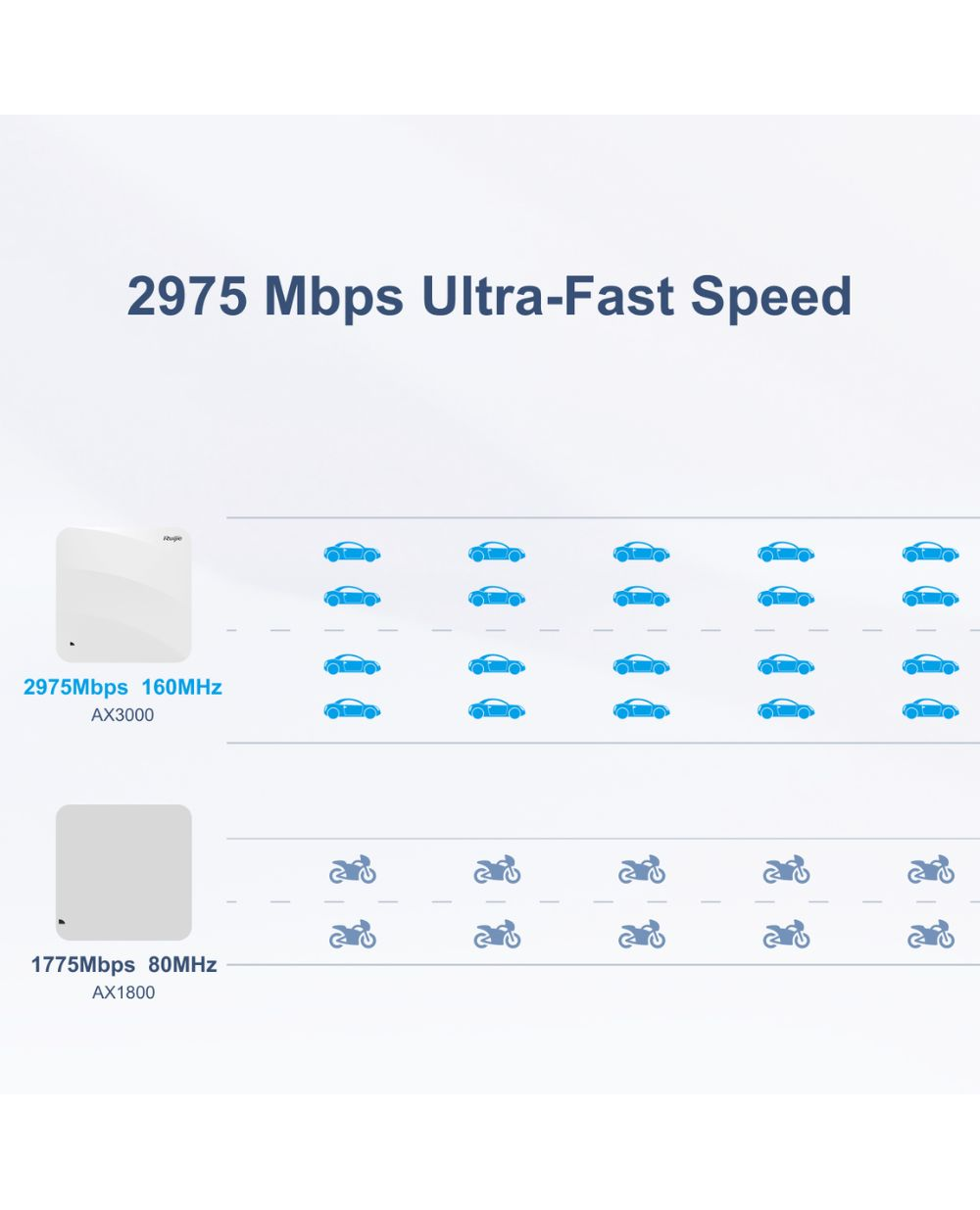

Next-generation AX3000 chip, supporting 160 MHz 2.976 Gbps
Next-generation Wi-Fi 6 technology, higher concurrency, lower latency
Unified cloud management, intelligent tuning, easy O&M
Key Specification
Wireless Protocols-802.11a/b/g/n/ac/ax
Radio Design Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2) up to 4 spatial streams
Data Rate-Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps
Antenna Type-Built-in omnidirectional antennas

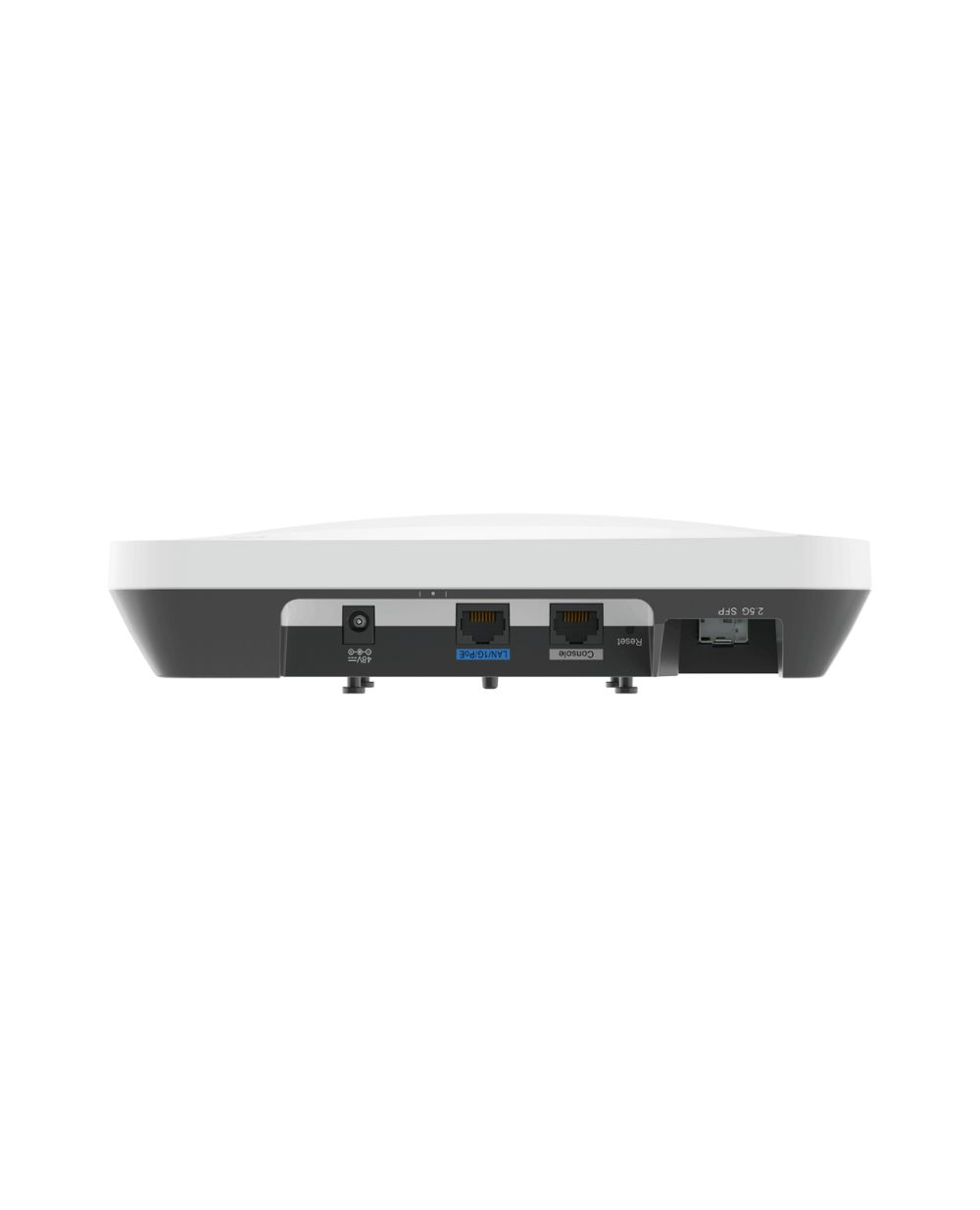

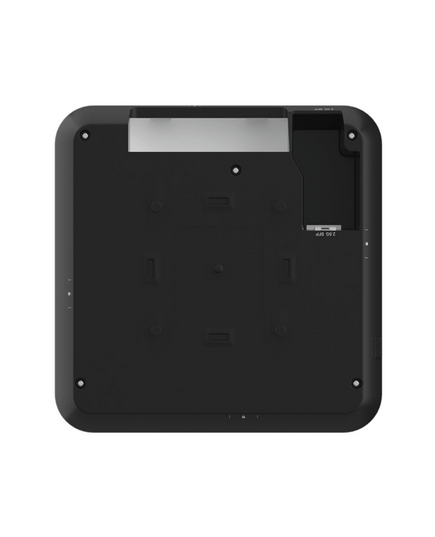

Fixed Service Port 1 x 10/100/1000BASE-T port - 1 x 2.5GE SFP/RJ45 combo port
Bluetooth-Bluetooth 5.1
Input Power Supply-48 V DC/0.6 A power supply PoE (802.3af)
Max. Power Consumption - 12.95 W
External Power Supply-No
Operating Temperature- –10°C to +50°C (14°F to +122°F)
IP Rating-IP41
Dimensions (W x D x H)-220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.)

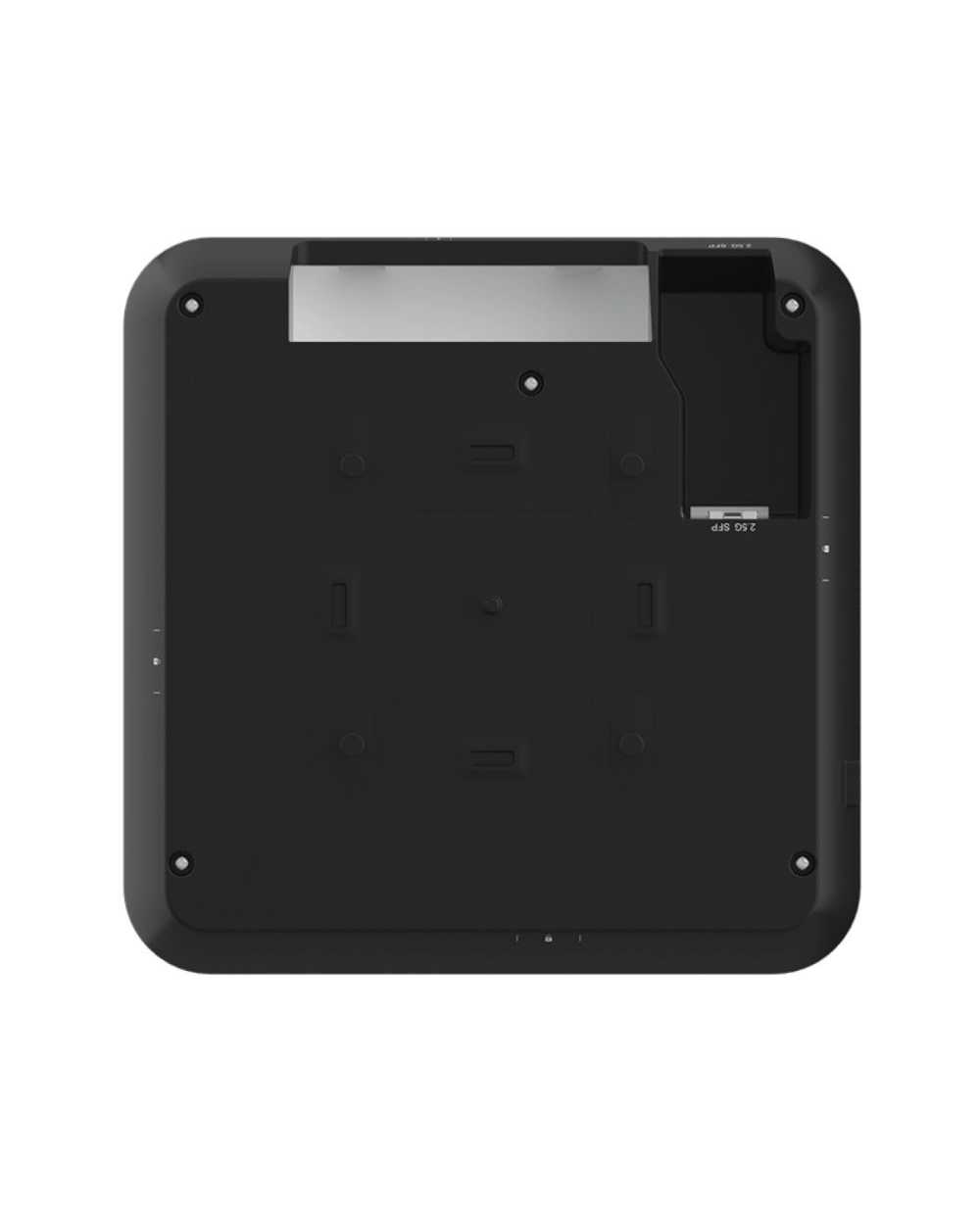

Mounting-Wall/Ceiling-mount
Warranty-3 Years
