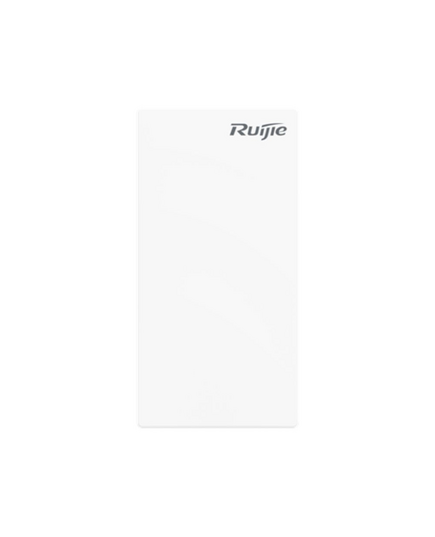

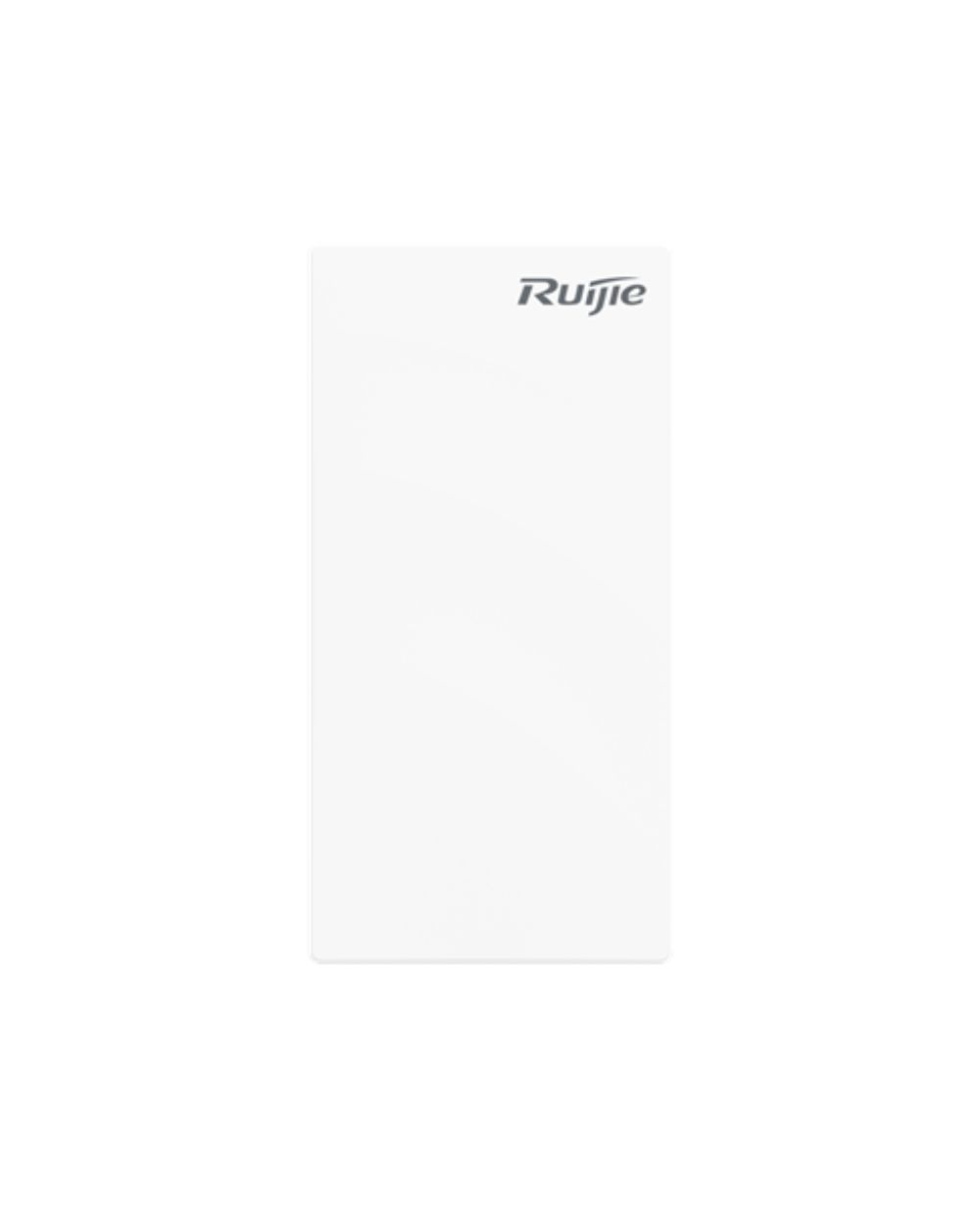

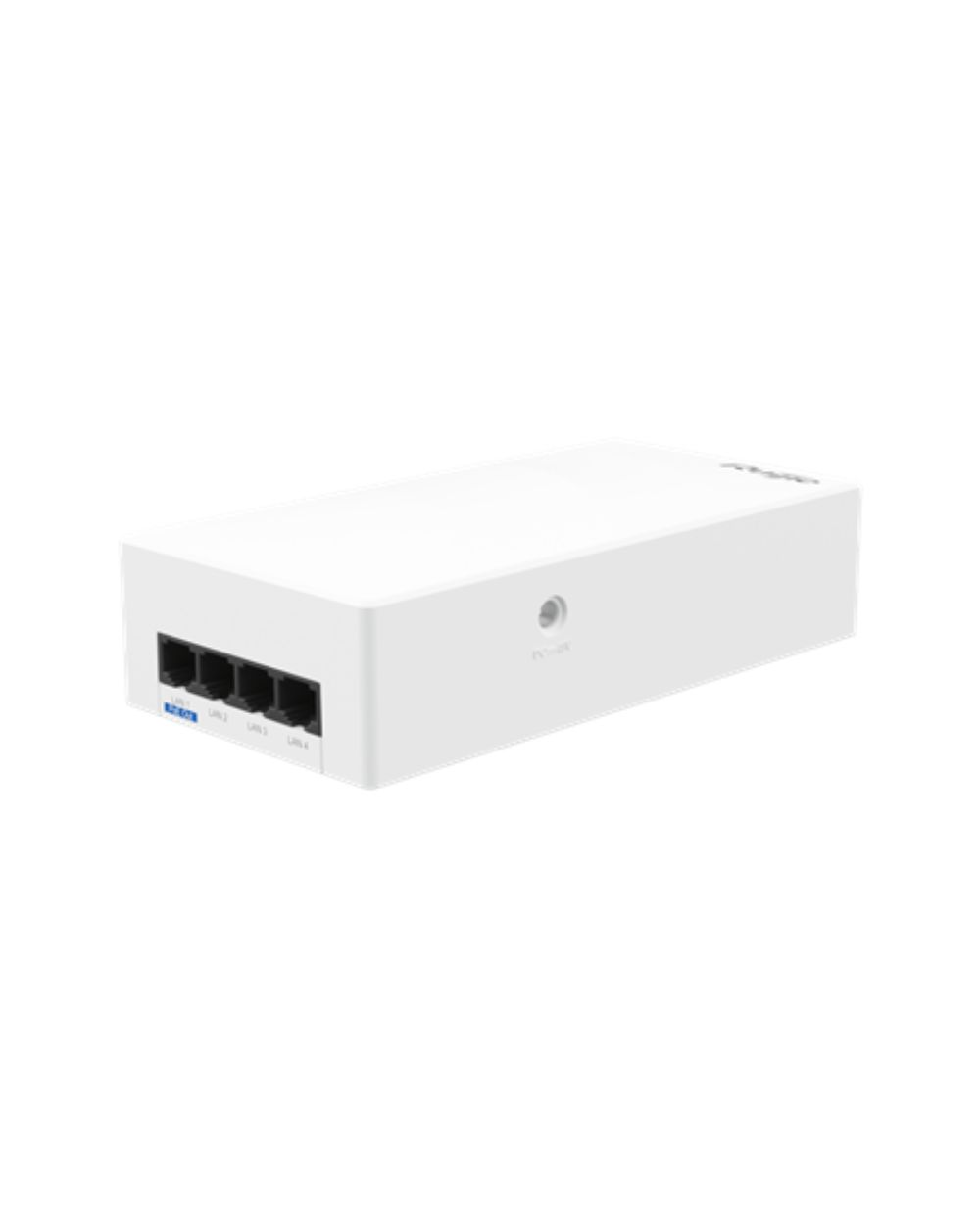

RG-AP180P-L Wi-Fi 6 Dual-Radio 2975 Mbps Wall Plate AP (PoE Passthrough) AX3000
High-density small-sized scenarios covering star hotels, enterprise VIP offices, and apartments
Highlight Features

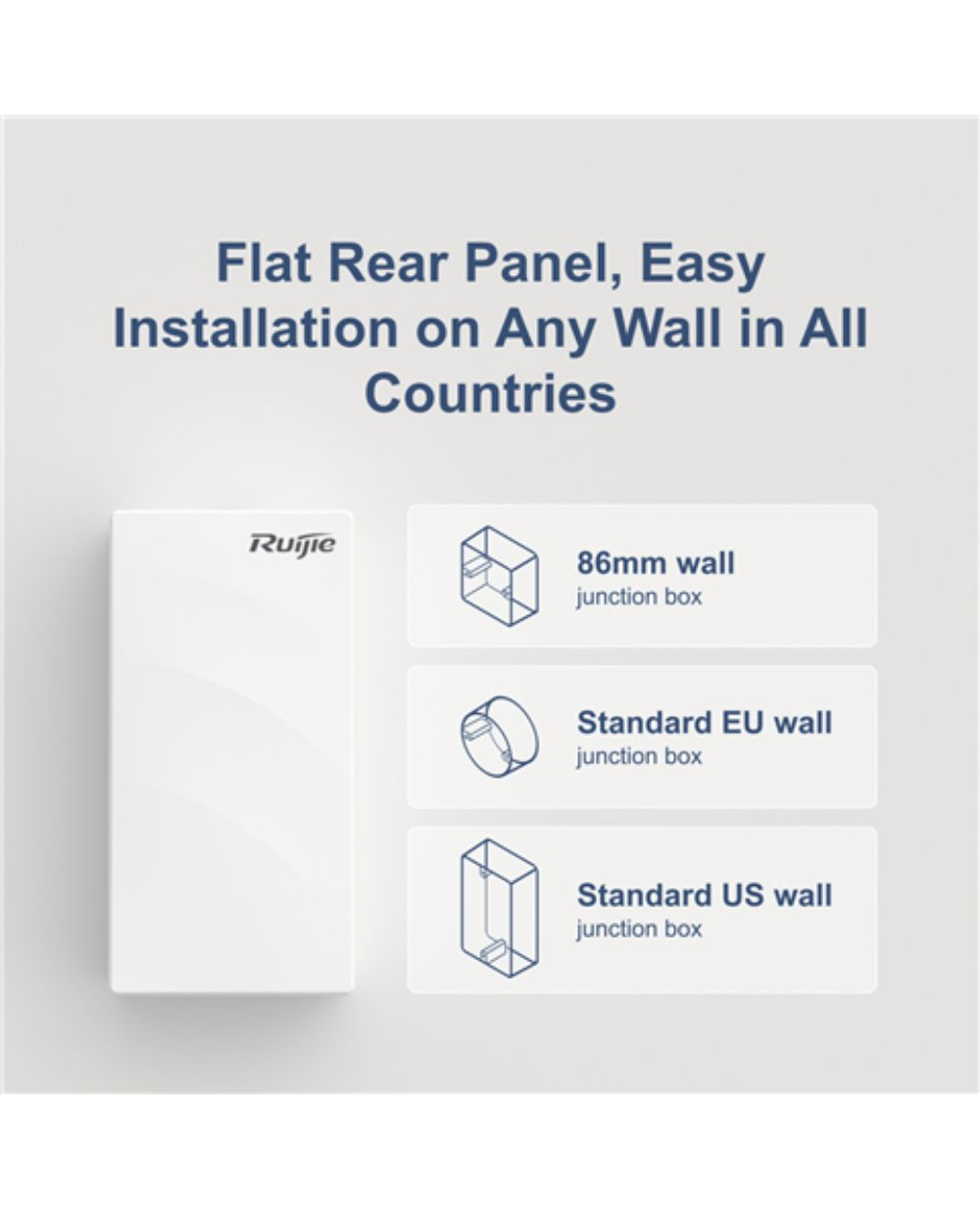

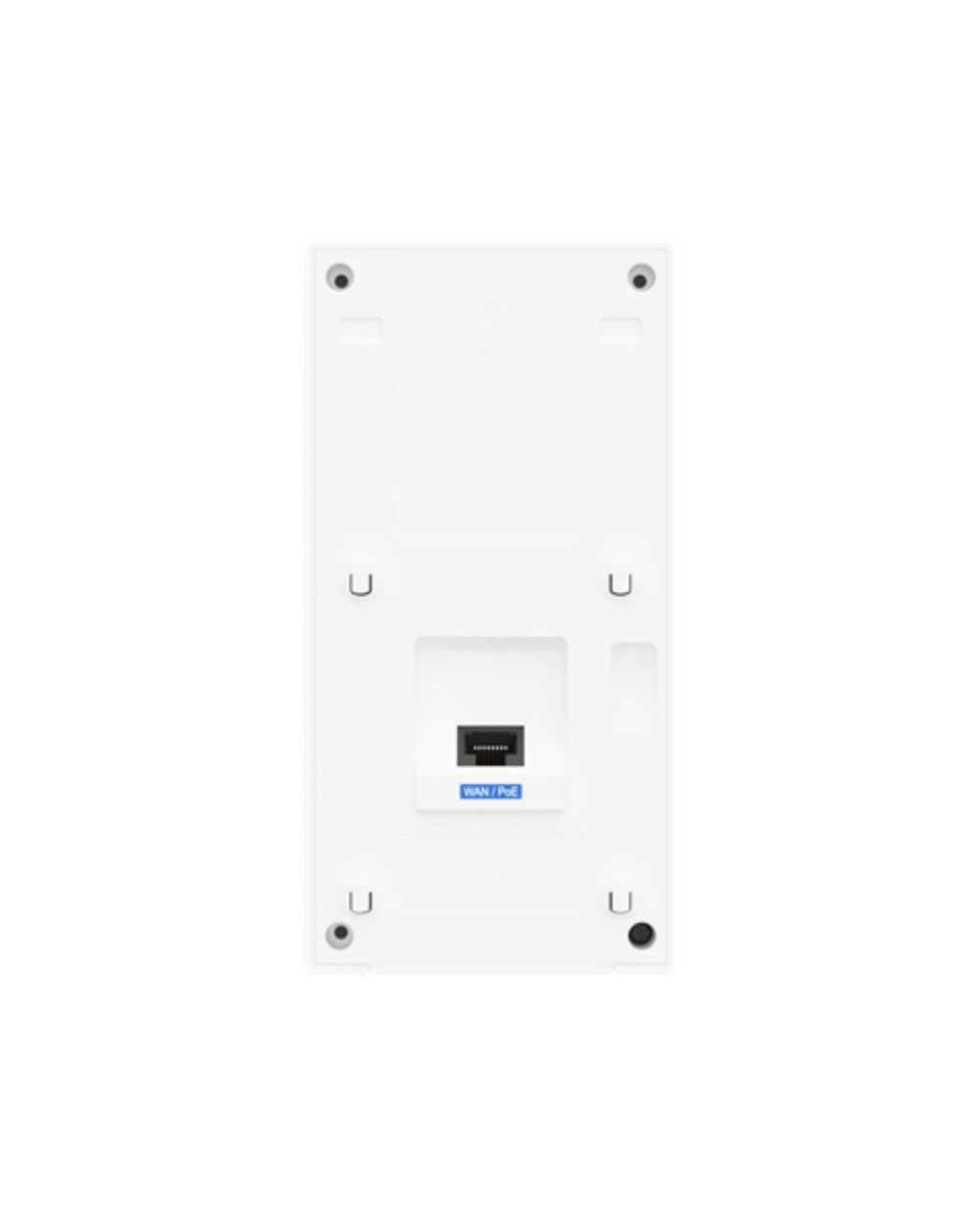

Flat Rear Panel, Easy Installation on Any Wall in All Countries

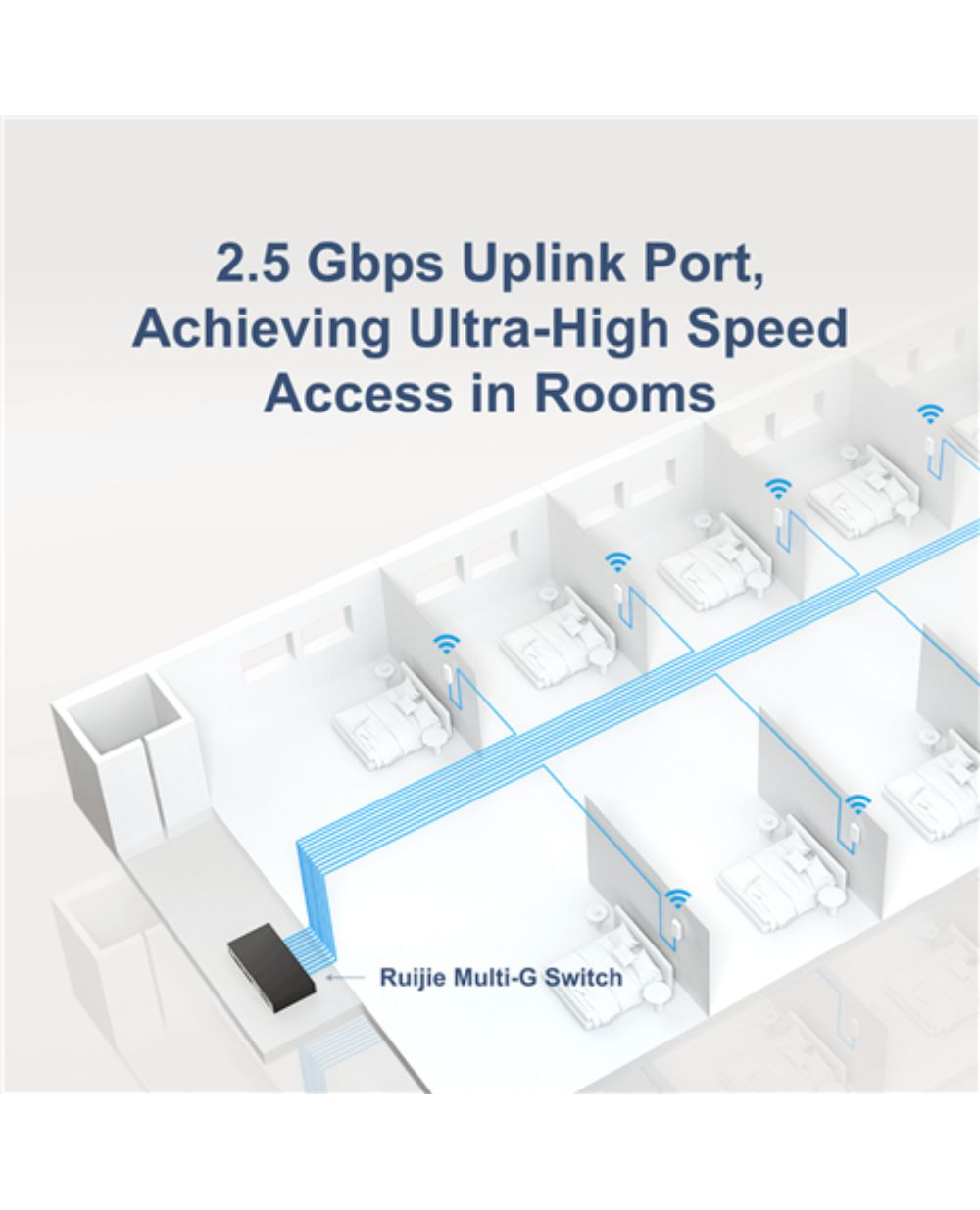

2.5 Gbps Uplink Port, Achieving Ultra-High Speed Access in Rooms

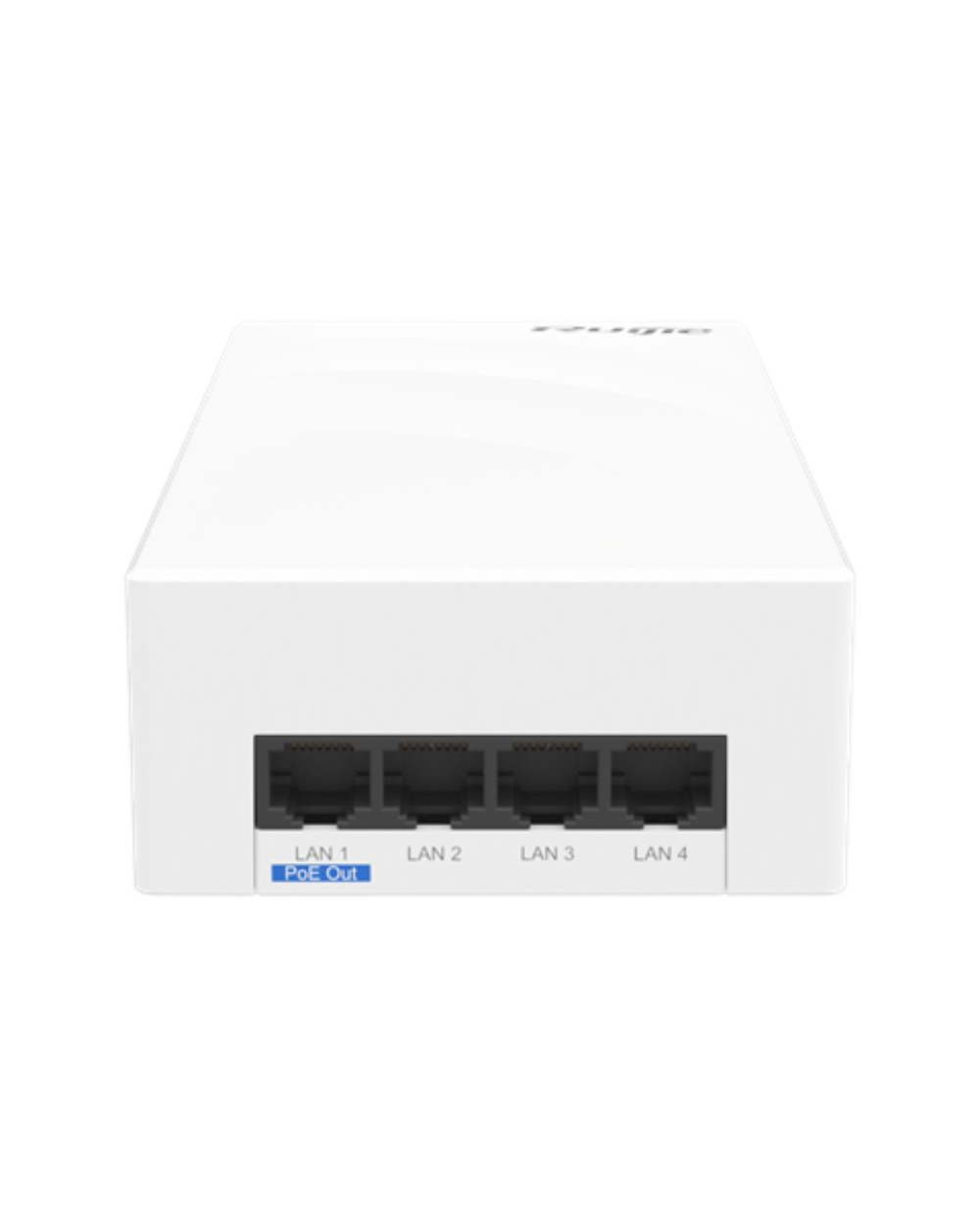

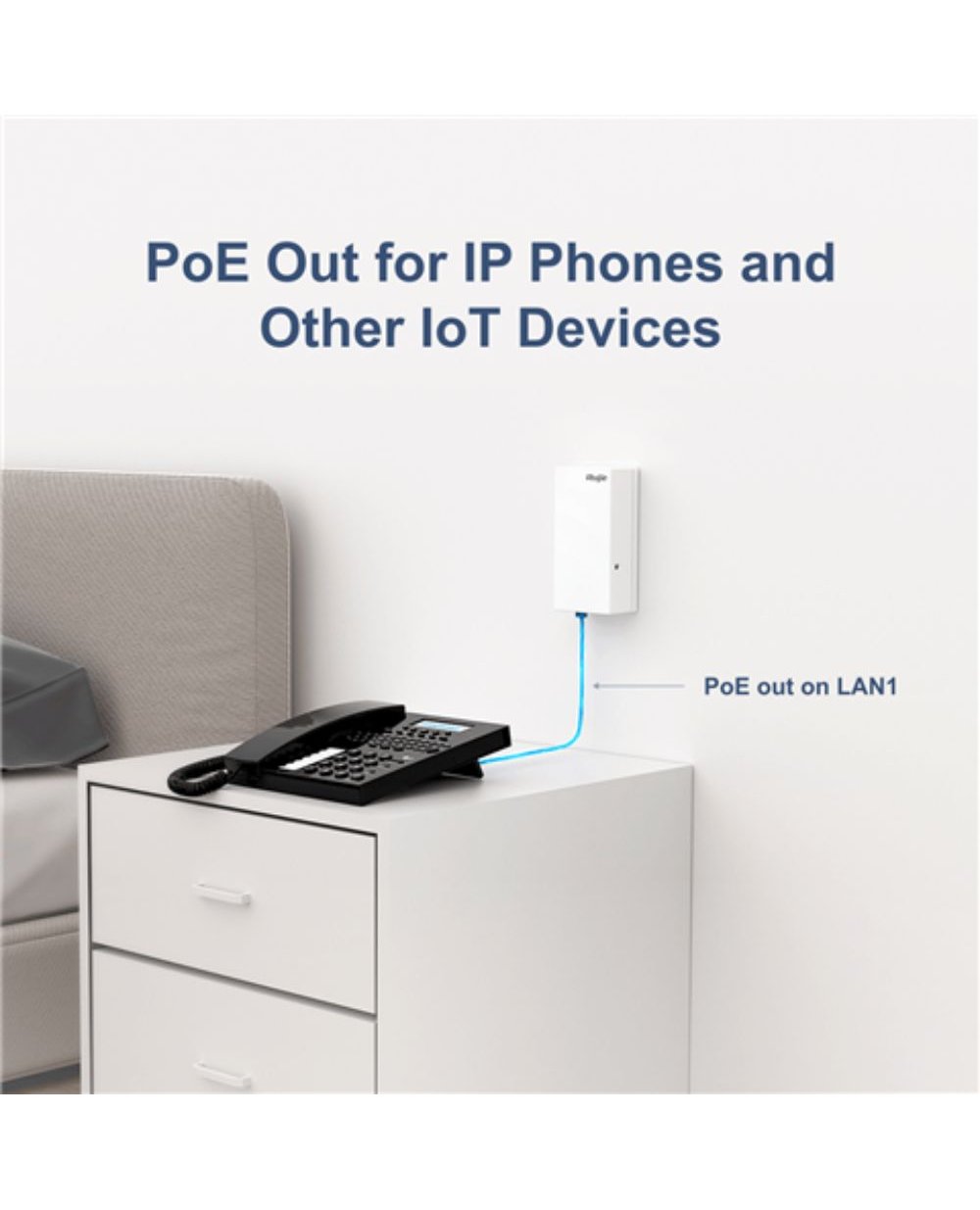

PoE Out for IP Phones and Other IoT Devices
2975 Mbps High Speed with 160 MHz Band
Ruijie cloud management, intelligent optimization
Key Specification
Wireless Protocols-802.11a/b/g/n/ac/ax
Data Rate-Combined peak data rate:2.4 GHz + 5 GHz, 2.976 Gbps

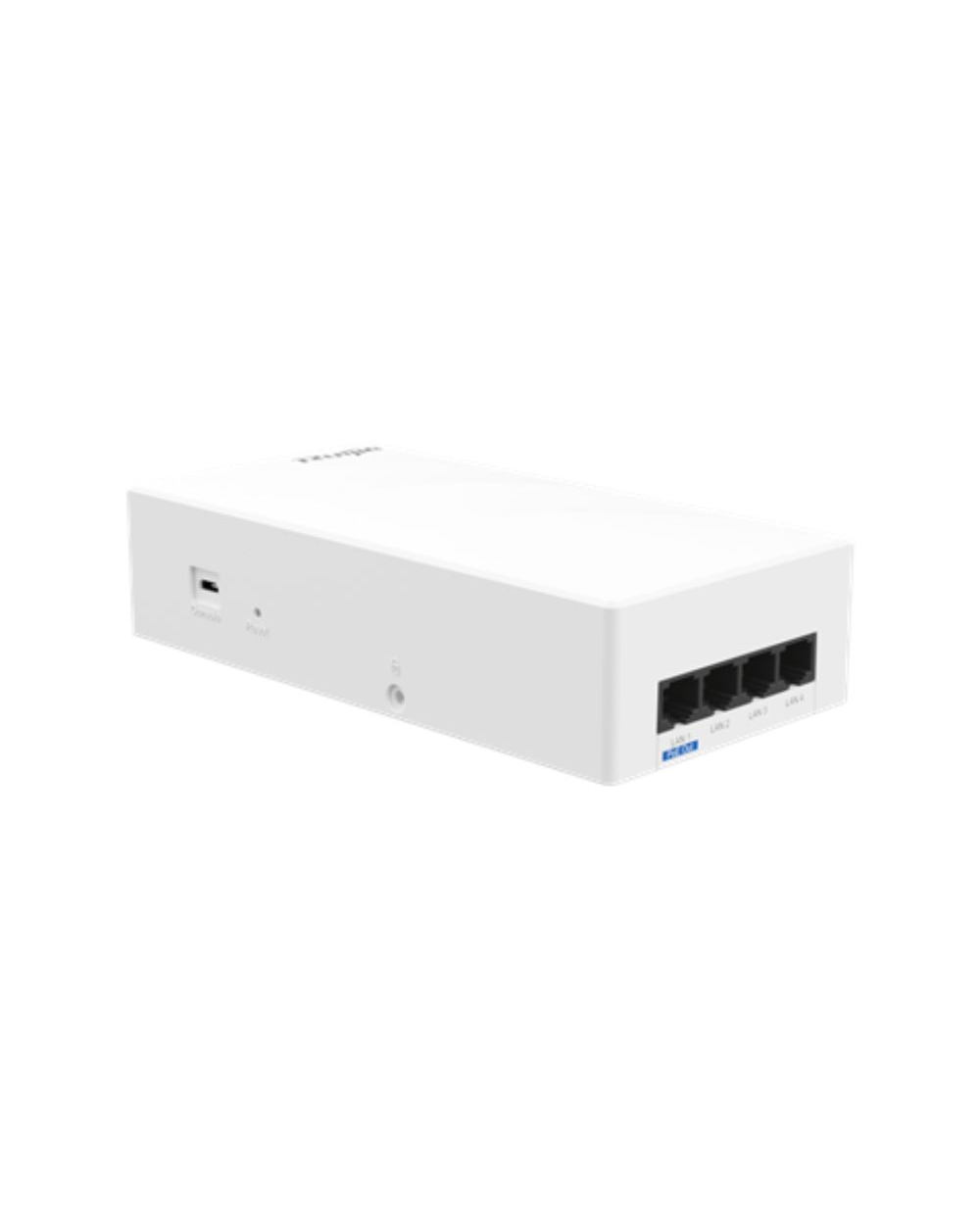

Fixed Service Port-Uplink: 1 x 100/1000/2500Base-T Ethernet port-Downlink: 4 x 10/100/1000Base-T Ethernet ports
Input Power Supply-48 V DC/0.6 A power supply-PoE/PoE+ (802.3af/at)
External Power Supply-Yes
IP Rating-N/A
Mounting-Wall-mount/86-mm, EU, and US standard junction boxes
Radio Design-Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2)-up to 4 spatial streams
Antenna Type-Built-in omnidirectional antenna
Bluetooth-Bluetooth 5.1
Max. Power Consumption-25 W
Operating Temperature-0°C to +40°C (–32°F to +104°F)
Dimensions (W x D x H)-86 mm x 170 mm x 43 mm-( 3.4 in. × 6.7 in. × 1.7 in.)
Warranty-3 Years
