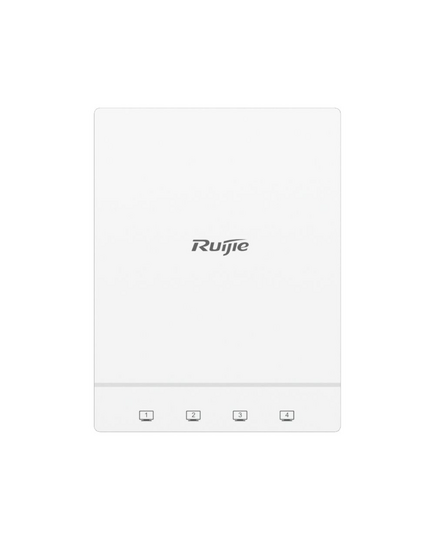

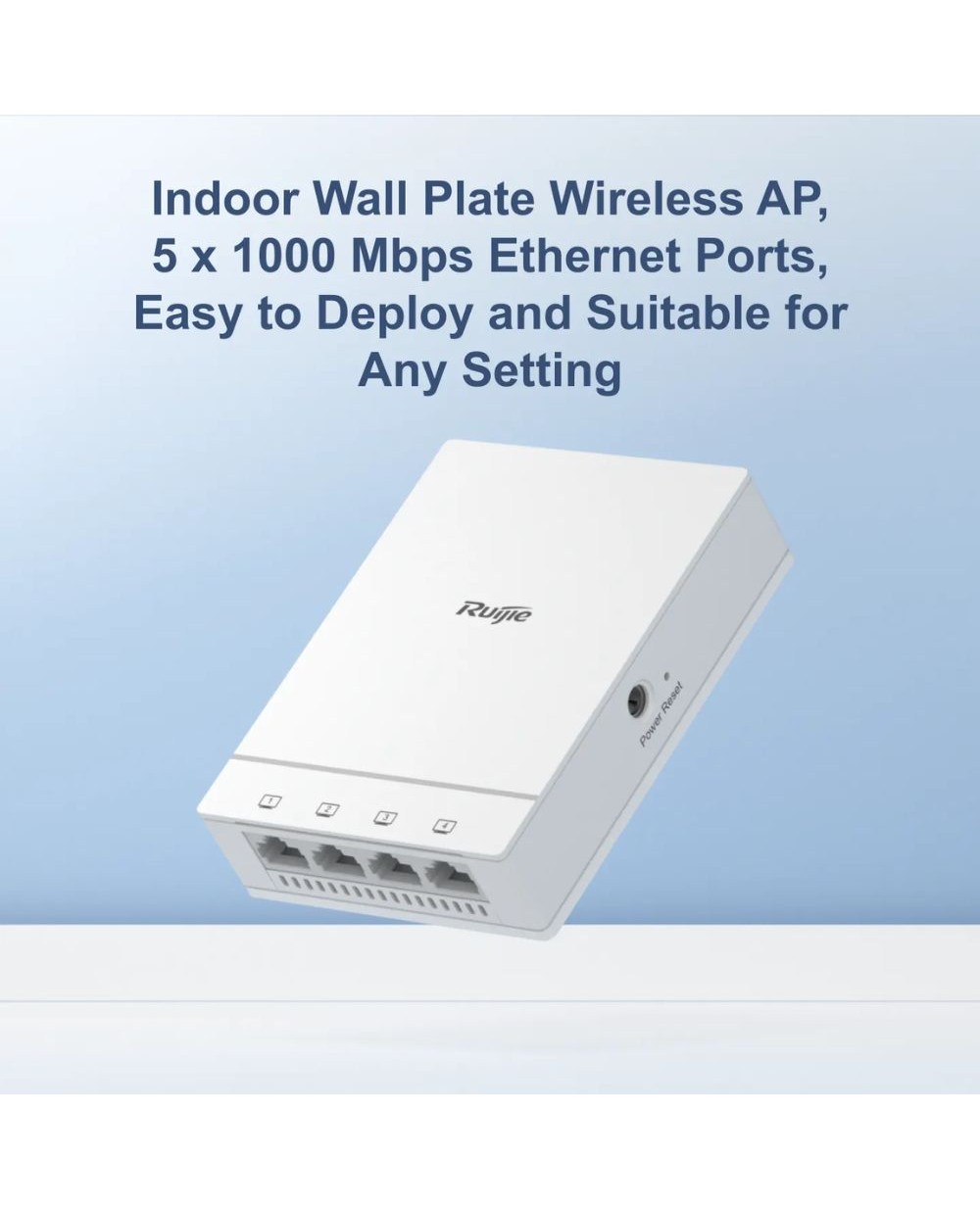

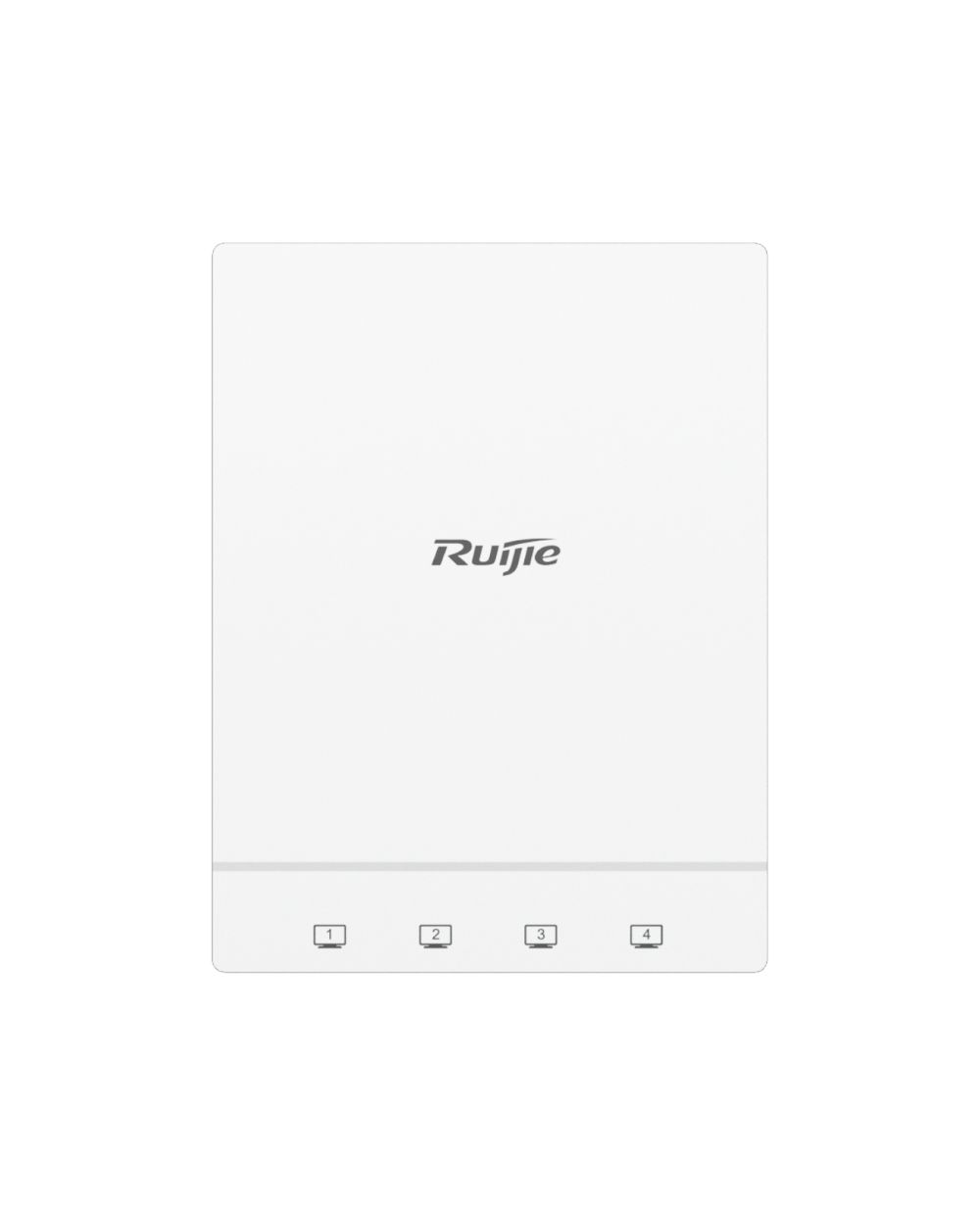

RG-AP180, Wi-Fi 6 Dual Radio 1.775 Gbps Indoor Wall Plate Wireless AP
Recommended for indoor scenarios such as dormitories, offices, hotels, stores, and classrooms
Highlight Features

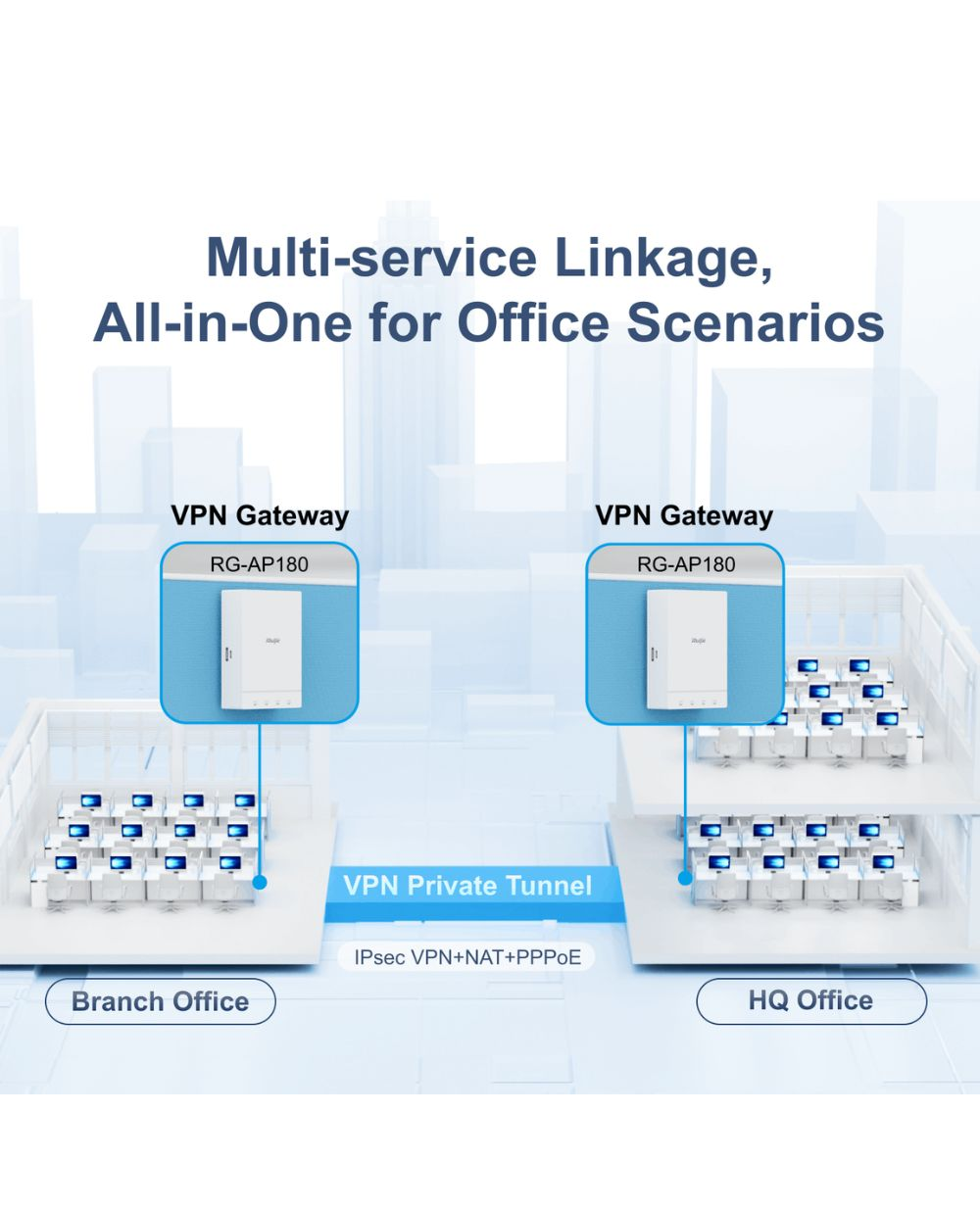

Multi-service Linkage, All-in-One for Office Scenarios

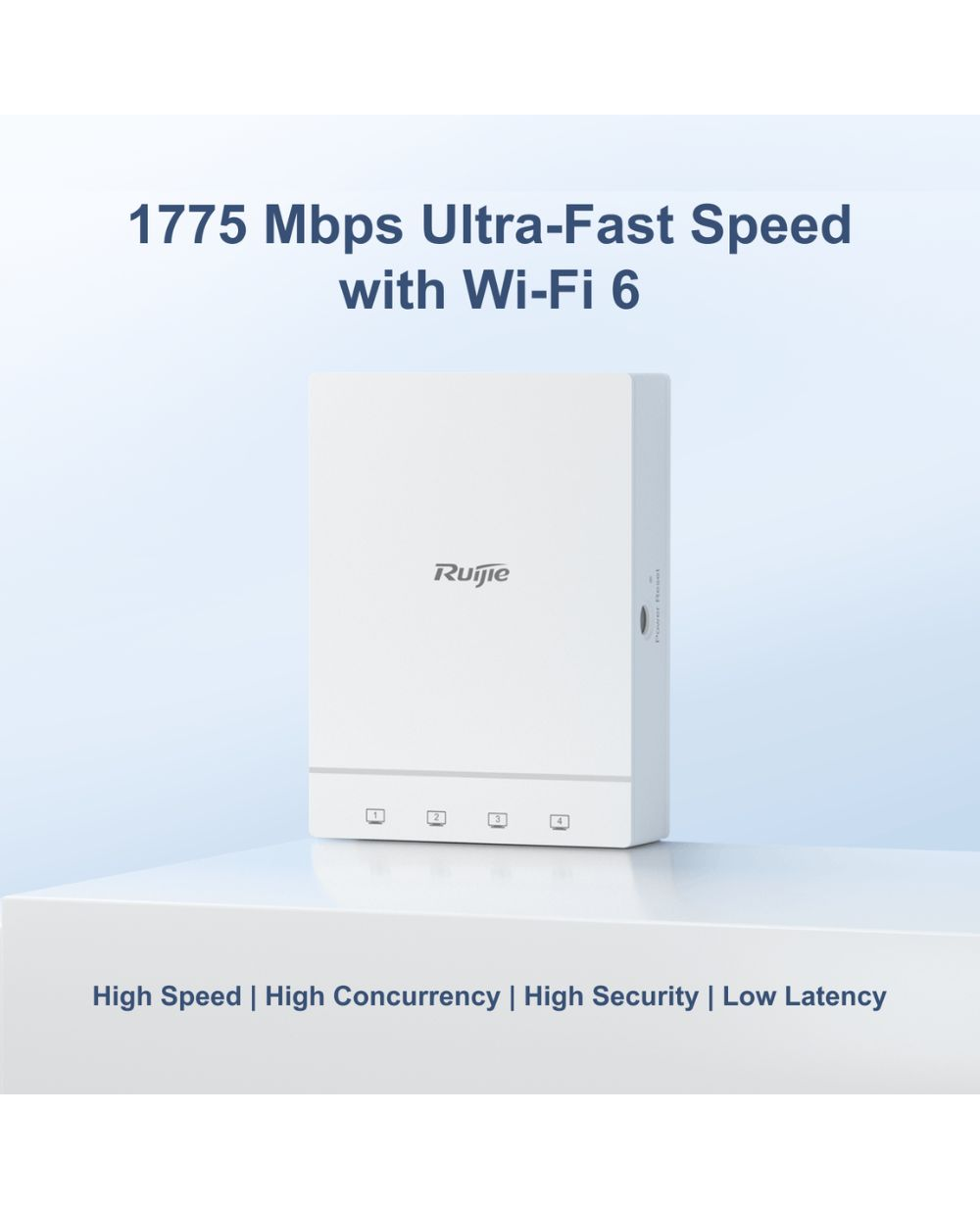

1.775 Gbps Ultra-Fast Speed with Wi-Fi 6
Full-Scenario Enterprise-class Authentication for Enhanced Security

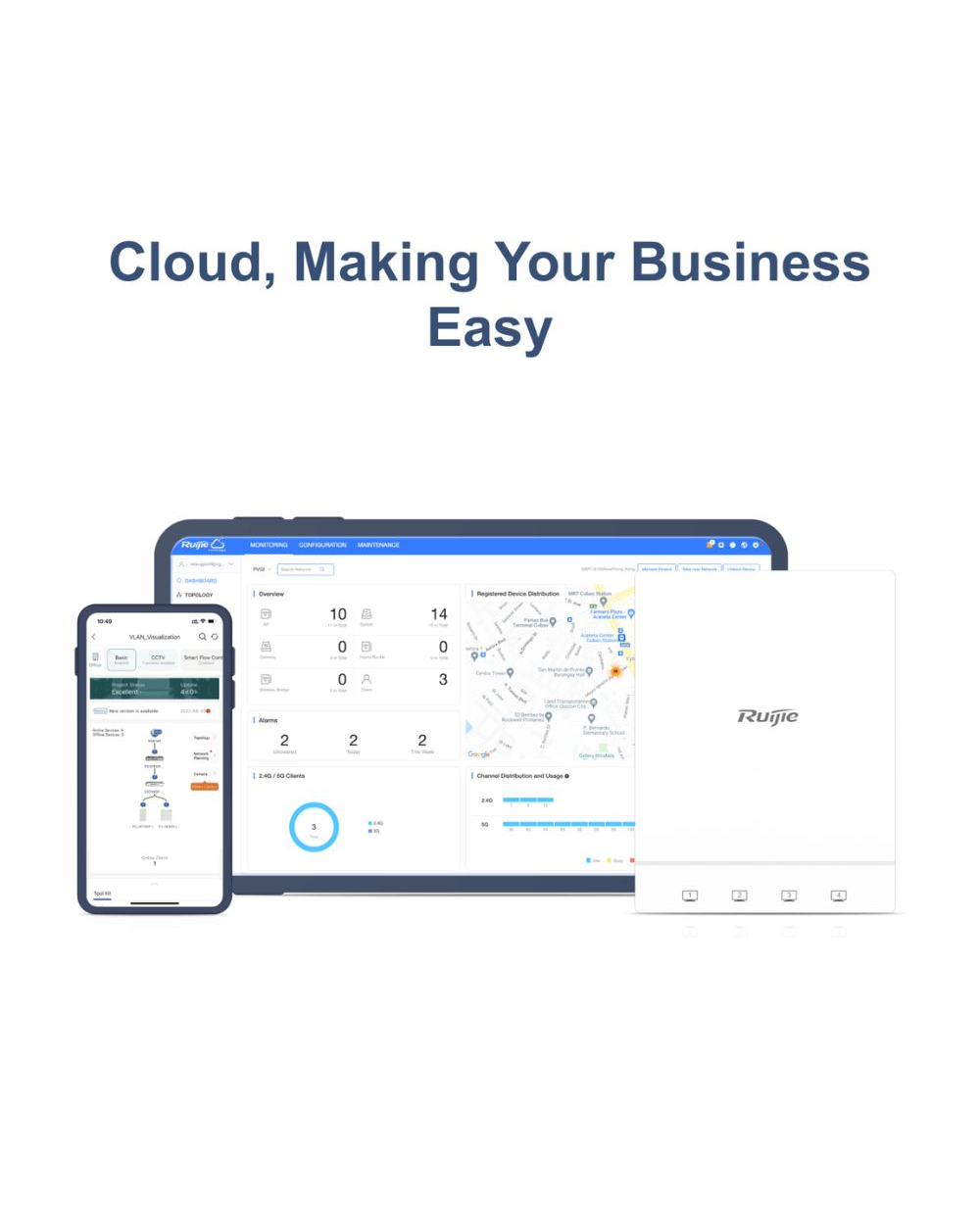

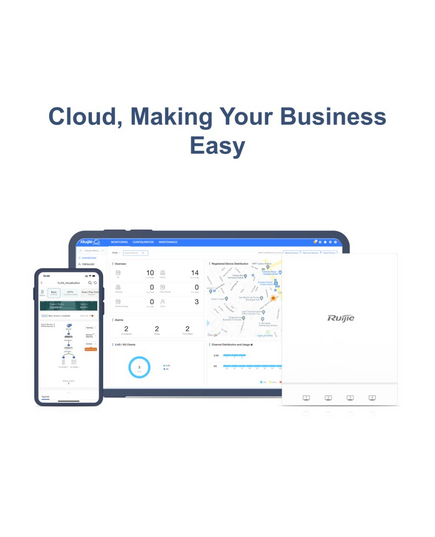

Ruijie Cloud Management, Intelligent Optimization, and Easy O&M
Key Specification
Wireless Protocols-802.11a/b/g/n/ac/ax
Radio Design-Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2) up to 4 spatial streams
Data Rate-Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps
Antenna Type-Built-in intelligent antennas

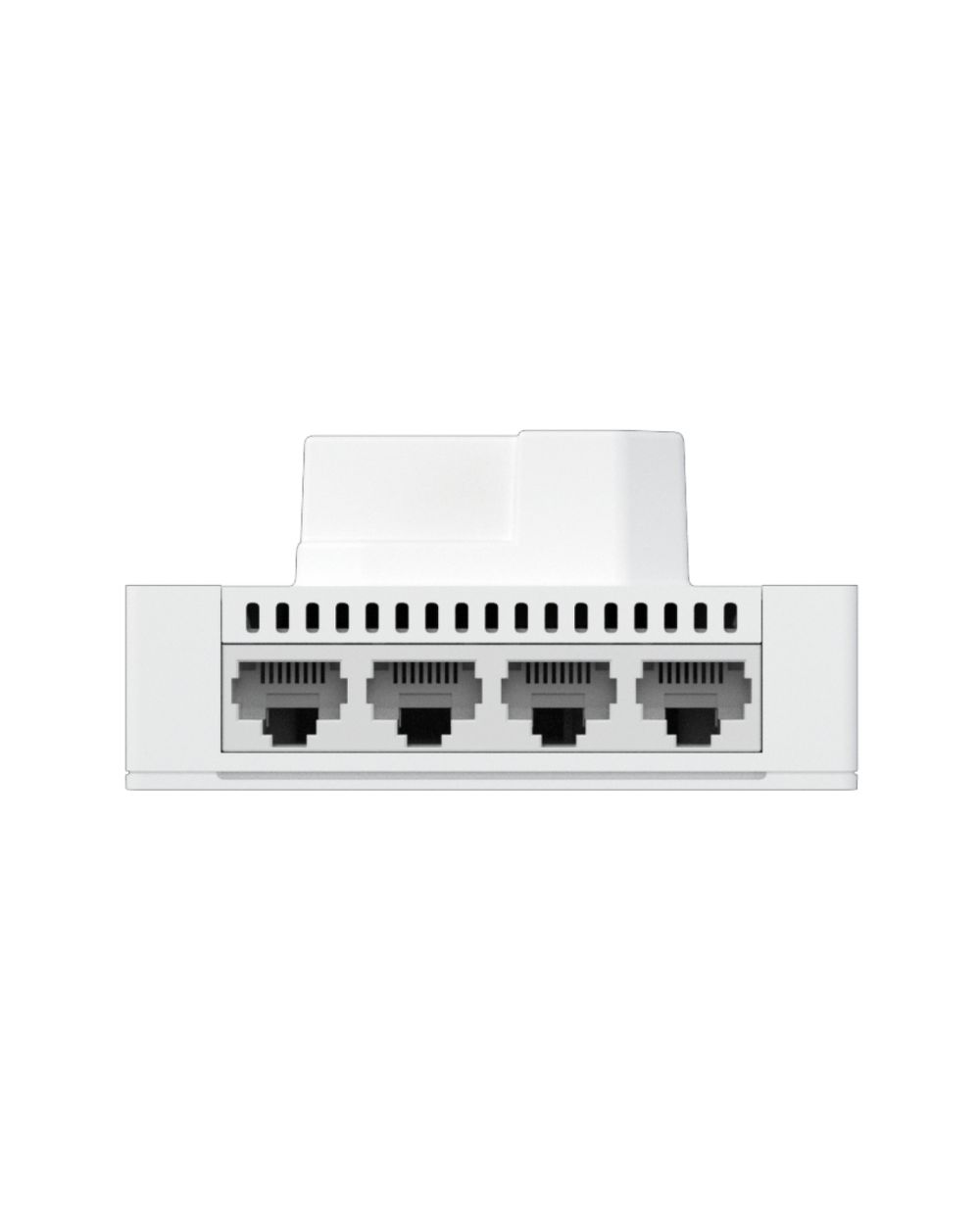

Fixed Service Port-Uplink: 1 x 10/100/1000BASE-T port, Downlink: 4 x 10/100/1000BASE-T ports
Bluetooth-Bluetooth 5.0
Input Power Supply-12 V DC/1 A power supply-PoE/PoE+ (802.3af/at)
Max. Power Consumption-10 W
External Power Supply-No
Operating Temperature- –10°C to +50°C (14°F to +122°F)
IP Rating-N/A

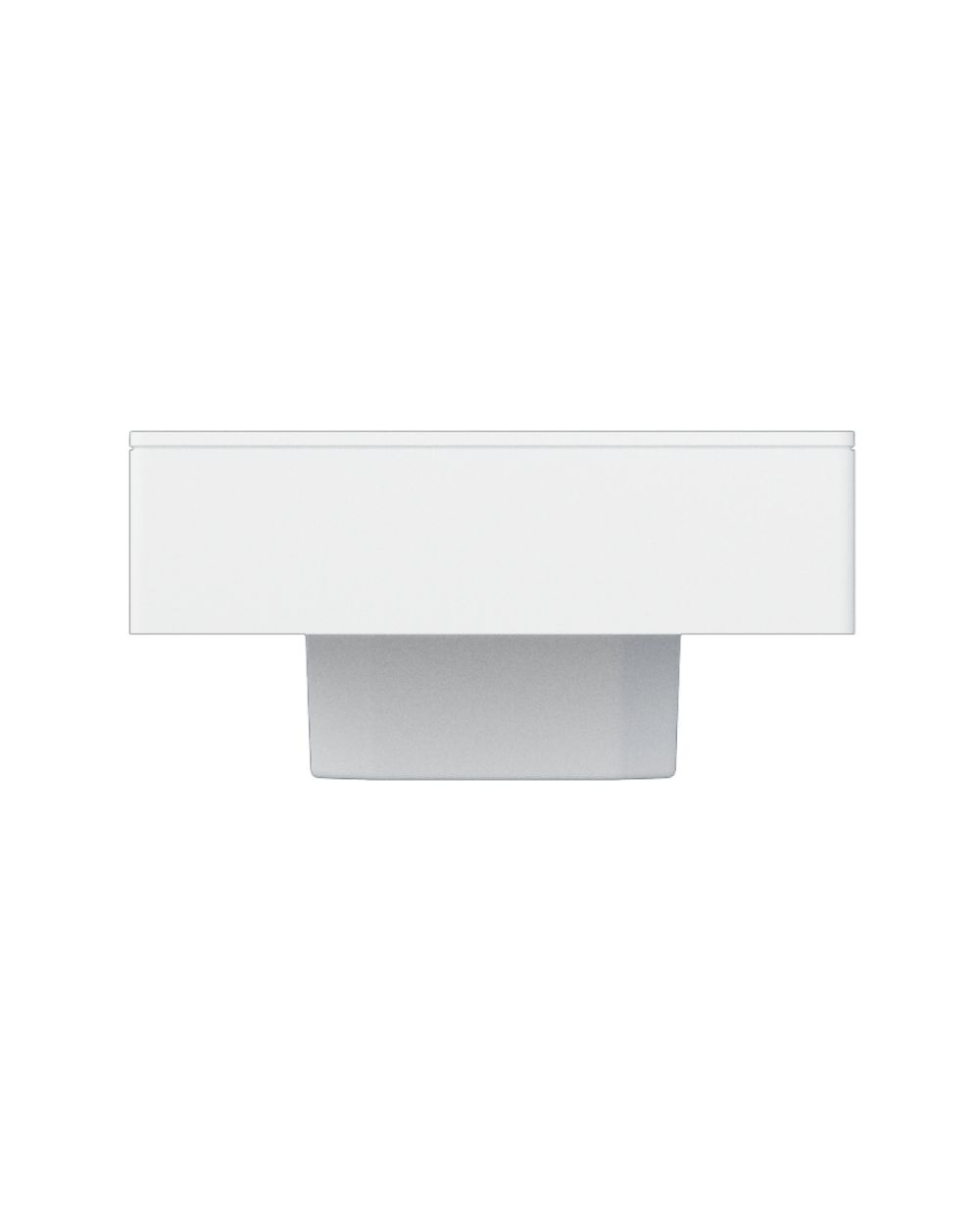

Dimensions (W x D x H)-In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.)
Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)

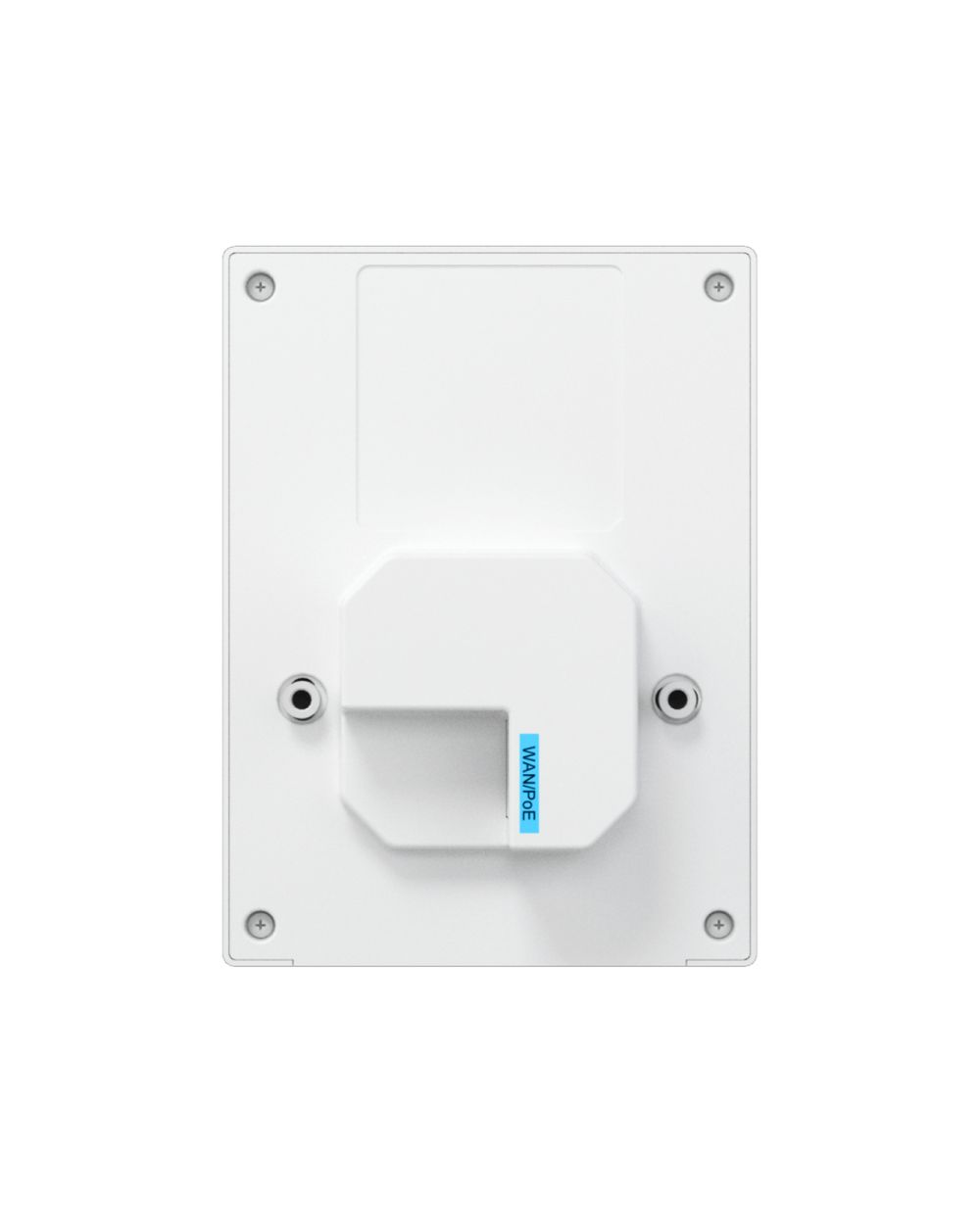

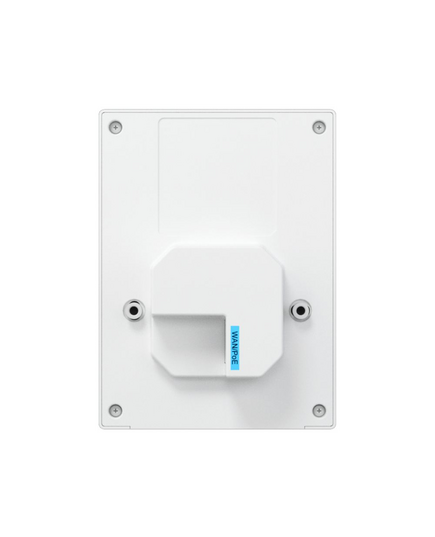

Mounting-Wall mount/ 86-mm and EU standard junction boxes
Warranty-3 Years
