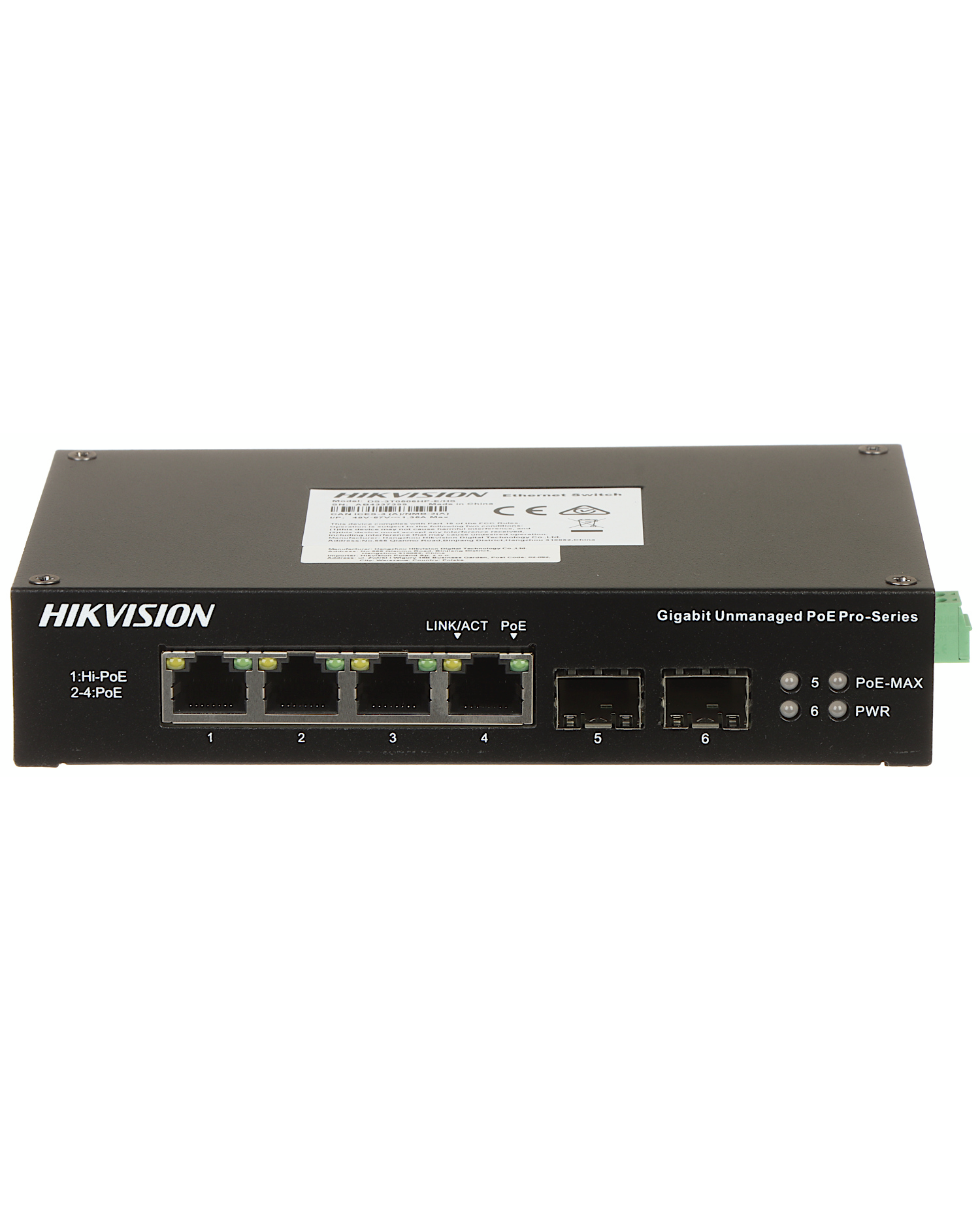

HIKVISION DS-3T0506HP-E/HS 4-Port Gigabit Unmanaged Hi-PoE Switch
DS-3T0506HP-E/HS switches are layer 2 Hi-PoE switches, providing PoE power supply technology and wider temperature (-
30 °C to 65 °C) design on the basis of network access to ensure stable data upload. The switches support Hi-PoE, long range,
port isolation, and PoE watchdog functions.
- 3 × gigabit PoE port, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wire-speed forwarding.
- Wider temperature (-30 °C to 65 °C) design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
