Ruijie RG-ES126FGS-LP 24-PORT 100MBPS + 1 UPLINK PORT 1000MBPS + 1 GIGABIT RJ45/SFP COMBO PORTS, 24 OF THE PORTS SUPPORT

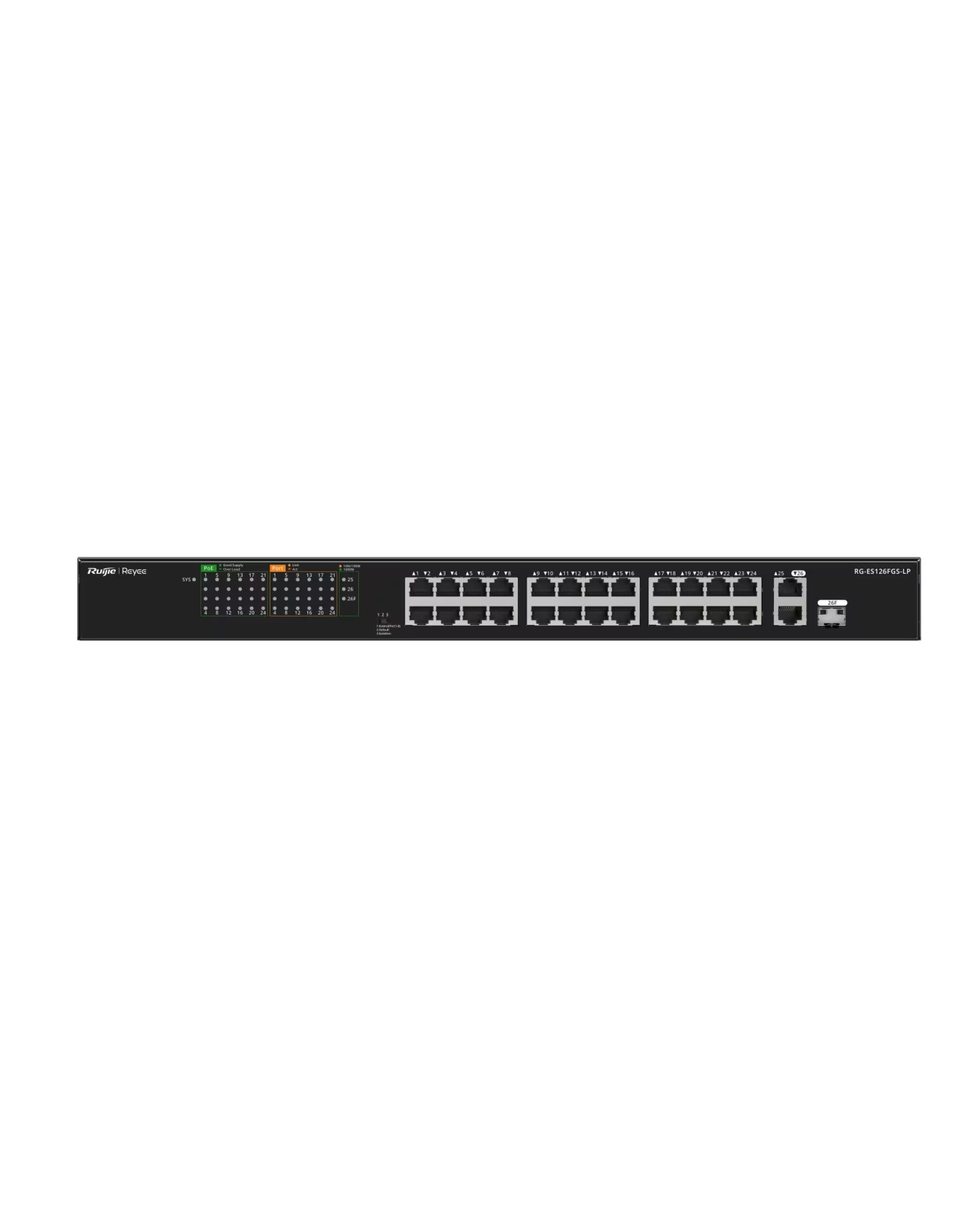

Ruijie RG-ES126FGS-LP — 24-Port PoE+ Unmanaged Switch with Gigabit Uplinks
The Ruijie RG-ES126FGS-LP is a high-performance unmanaged PoE+ switch designed for reliable networking in CCTV systems, small to medium-sized offices, retail environments, and other setups requiring multiple powered devices. It provides both data and power to IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment.
Equipped with 24 × 10/100 Mbps PoE+ ports and 2 × Gigabit uplink ports (one RJ45 and one combo RJ45/SFP), the switch delivers a total PoE power budget of 180 W, supporting up to 30 W per port. This makes it ideal for powering multiple high-demand devices simultaneously.
The RG-ES126FGS-LP is fully plug-and-play, requiring no configuration. It automatically detects and supplies power to compatible devices. A durable metal chassis ensures long-term reliability, while fanless design allows silent operation. Additional features include port-isolation mode for enhanced security and an extended-reach mode that allows cable runs up to 200 meters for devices located far from power sources.
With a switching capacity of 8.8 Gbps and a forwarding rate of 6.55 Mpps, the RG-ES126FGS-LP ensures smooth data flow even under heavy loads, making it a robust, cost-effective solution for expanding wired network infrastructure with PoE support.
Key Features
-
24 × 10/100 Mbps RJ45 PoE+ ports, supporting up to 30 W per port and 180 W total
-
2 × Gigabit uplink ports (1 RJ45 1000 Mbps, 1 combo RJ45/SFP)
-
Unmanaged, plug-and-play operation
-
Supports IEEE 802.3af/802.3at standards
-
Multiple working modes: default, port-isolation, and extended-reach mode
-
Durable metal housing with built-in surge protection
-
Fanless, silent operation
-
Switching capacity: 8.8 Gbps; Forwarding rate: 6.55 Mpps
