Ruijie RG-ES118GS-P-L 16-PORT 1000MBPS + 2 GIGABIT SFP PORTS

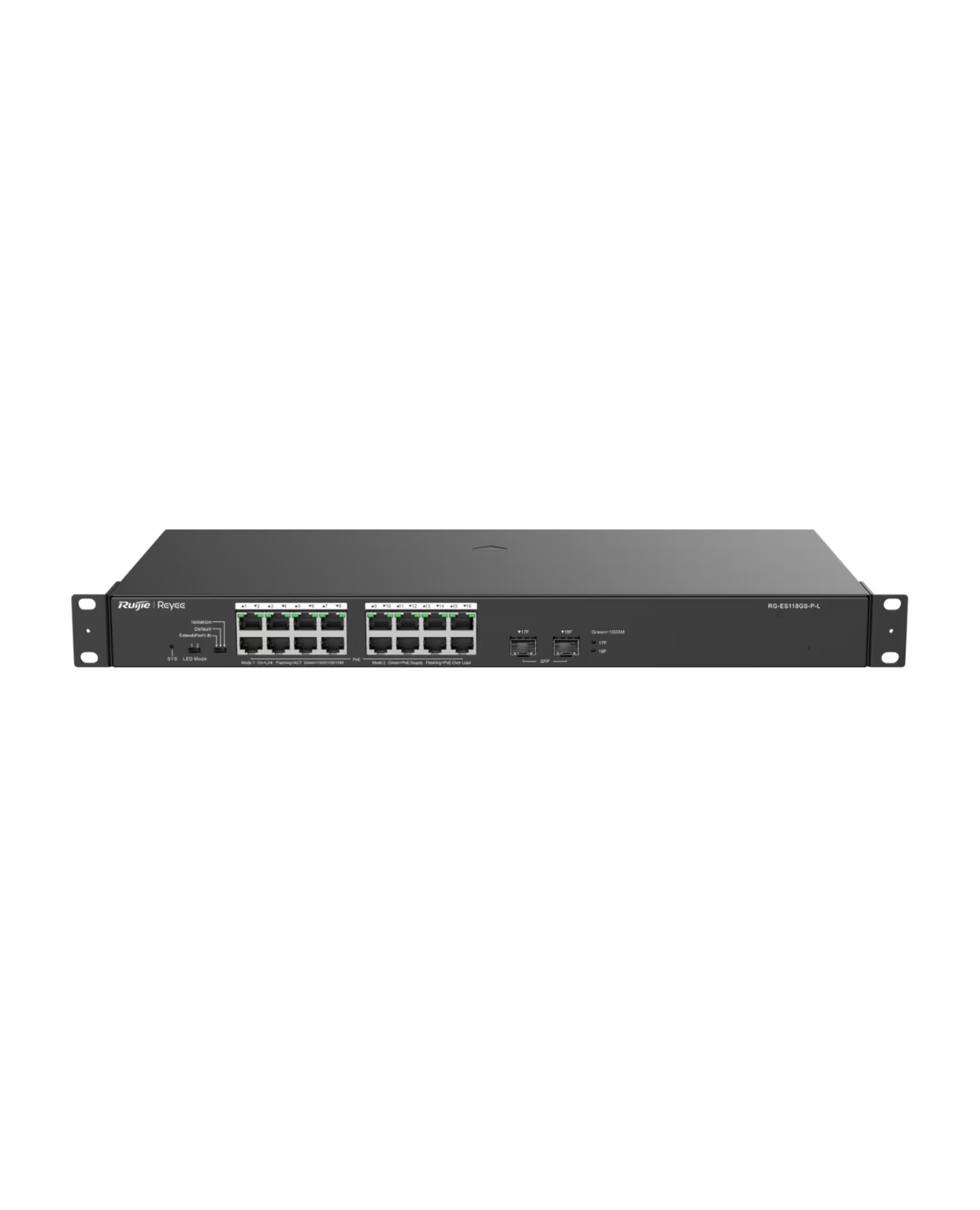

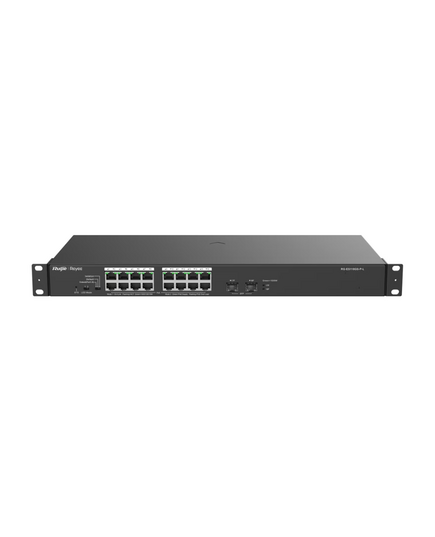

Ruijie RG-ES118GS-P-L — 18-Port Gigabit Unmanaged PoE+ Switch
The Ruijie RG-ES118GS-P-L is an 18-port unmanaged PoE+ switch designed for CCTV networks, small businesses, and environments requiring both data and power over Ethernet. It includes 16 Gigabit PoE/PoE+ RJ45 ports and 2 Gigabit SFP uplink ports for flexible expansion and high-speed backbone connectivity.
With a total PoE power budget of 247 W, the switch can power multiple IP cameras, access points, and VoIP phones simultaneously. Its plug-and-play design requires no configuration, while features such as auto-negotiation, auto-MDI/MDIX, and port isolation ensure stable and secure operation. The RG-ES118GS-P-L delivers a switching capacity of 36 Gbps and a forwarding rate of 26.8 Mpps, making it suitable for high-traffic environments.
The metal chassis provides durability and efficient heat dissipation, and built-in surge protection helps safeguard connected devices.
Key Features
-
16 × Gigabit PoE/PoE+ RJ45 ports
-
2 × Gigabit SFP uplink ports
-
Total PoE power budget: 247 W
-
Unmanaged, plug-and-play operation
-
Port isolation and flow-control options
-
Switching capacity: 36 Gbps
-
Forwarding rate: 26.8 Mpps
-
Auto-negotiation and auto-MDI/MDIX support
-
Metal chassis with surge protection
