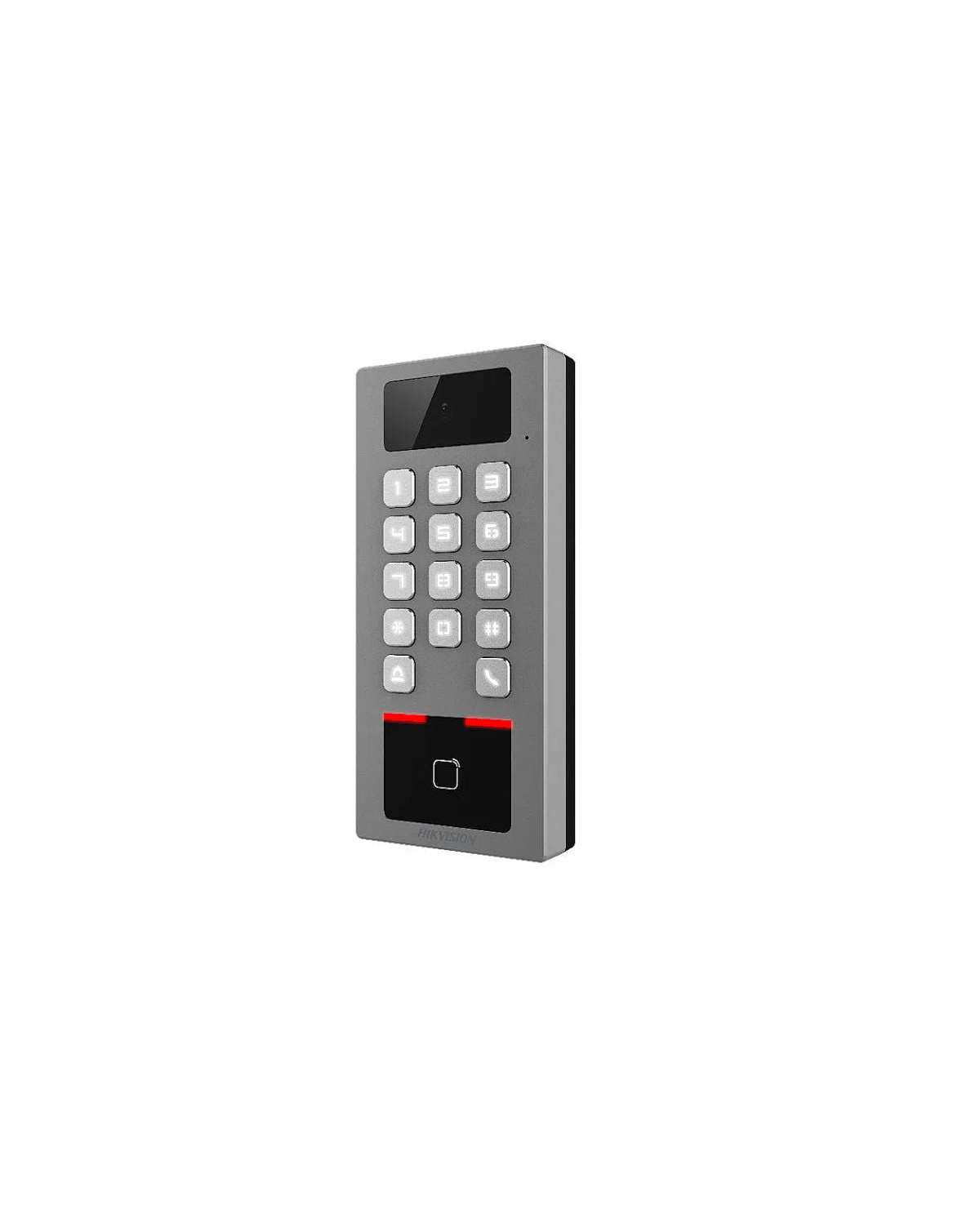

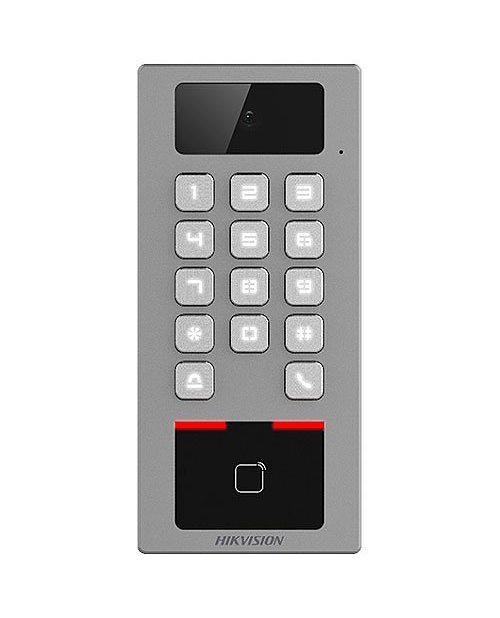

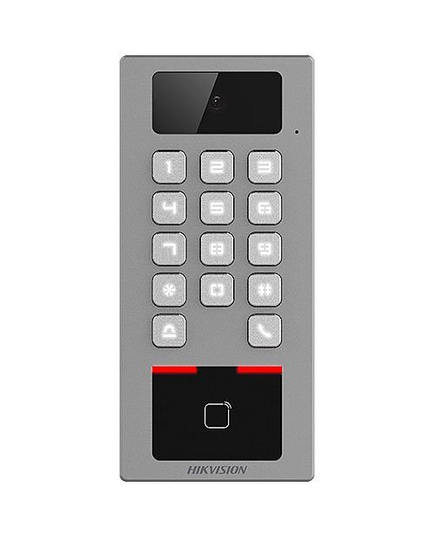

The DS-K1T502DBWX-C controller can operate autonomously or in the network mode. The device enables single door or read in/out access control. In addition, the built-in camera allows the registration of photos of people logging in and the transmission of the camera image directly to the computer managing the system.

• Manage access control and intercom functions in one device
• IP65 & IK09 protections, as well as increased stability with zinc alloy materials
• Supports multiple authentication methods (card, PIN, etc.)
• Remote control via the Hik-Connect mobile app
• Connects to external access controller via Wiegand protocol
• Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
• RS-485 communication for connecting external card reader and calling elevator
• Supports AP mode
• Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
• Supports up to 256 GB SD card memory
• Supports PIN settings under platform mode and local mode
• Setting the priority of wired network and wireless network is available
