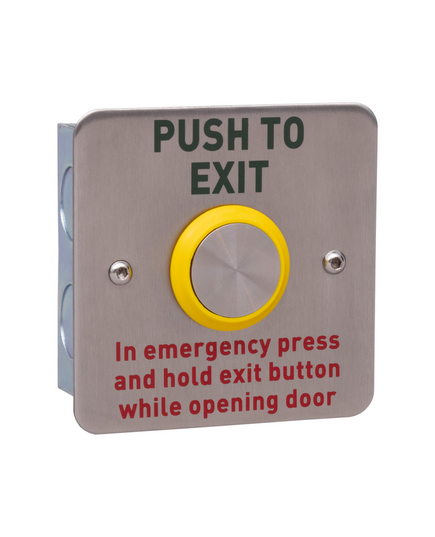

RGL Self Resetting Exit Button SREB/YB
Technical specifications
• Flush fitting • Stainless steel plate • IP65 rated switch • Output: 4 AMP contact @ 30V AC/DC • Double pole NO/NC contact • Both contacts can be installed to provide a fail safe solution • Use normally open circuit to trigger a timed exit on controller (Normally closed circuit will remove power to lock directly on a momentary basis) • Can be used to replace a green break glass that is often misused (must be approved by local fire control)
Features:
• Stainless Steel Button • Momentary operation / contact • Flush fitting as standard • Easy clean surface • Ideal for general / sensitive areas • Gasket and gland included • Screw footprint for flush fitting onto standard back box • Distance between fixing holes 60mm • Yellow halo to assist visually impaired users
