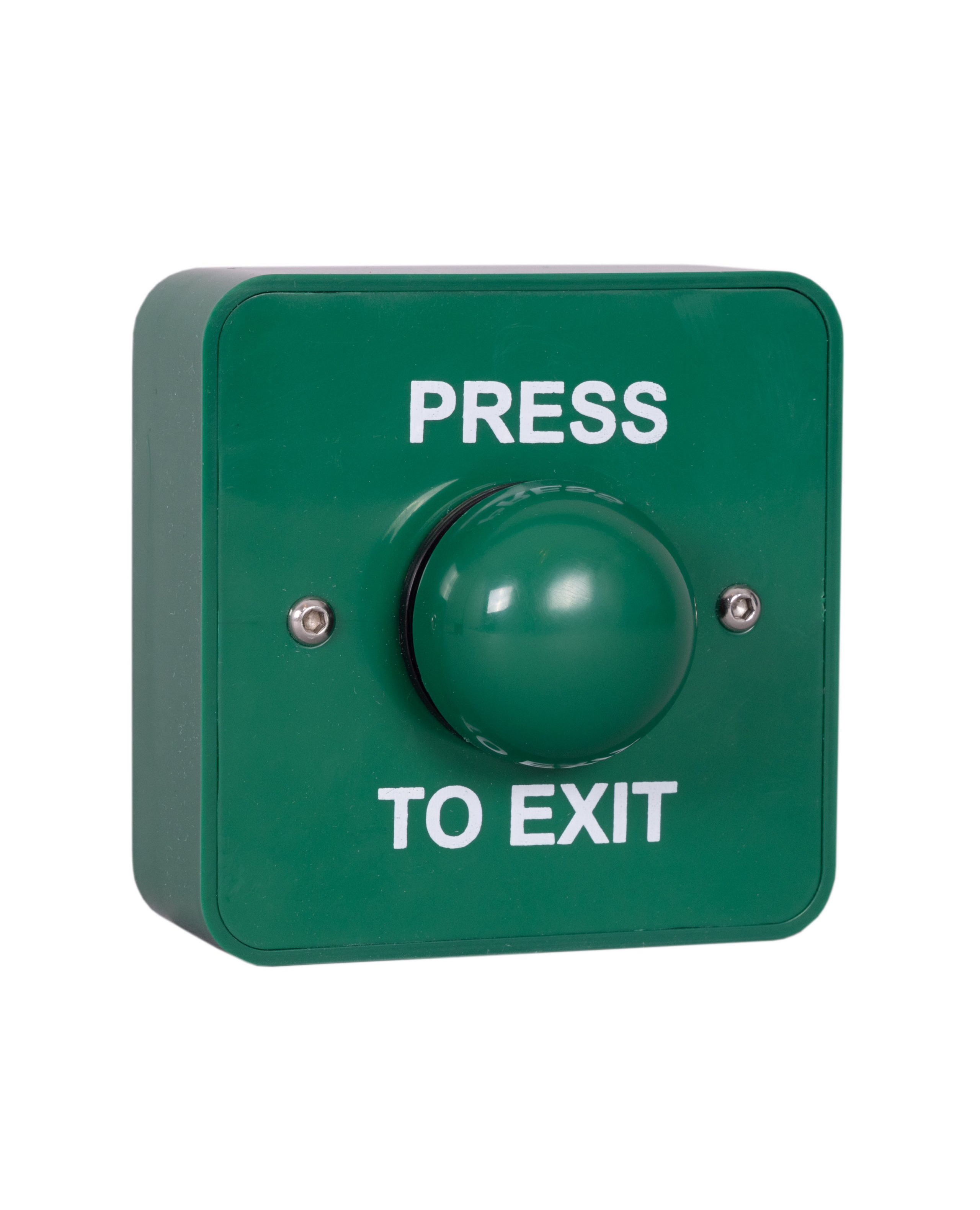

RGL Green Dome Exit Button G-EBGB/PTE
Technical specifications
- Contacts : Double pole N/O – N/C
- Output : 4 AMP contact @ 30 V AC/DC
- Wear resistant legend
- Security screws (Allen key type)
- Internal or External use
- Green Button rated IP66 ingress protection
- Silver contacts
- Operating temperature -20 to +60C
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
Features:
- All plastic large green button
- Momentary operation / contact
- High impact plastic back box
- Can be surface or flush fitting
- Easy clean surface
- Ideal for general/sensitive areas
- Screw footprint for flush fitting onto standard back box
- Anti rotational mounting
