Roger Technology BH30/806 24v BRUSHLESS Electric Sliding Gate Kit - 800kg

Electric Sliding Gate Automation Kit
The Roger Technology BH30/806 is a 800kg sliding electric gate kit which includes mechanical limit switch making it the safest sliding gate motor on the market which is perfect for domestic dwellings.

The BH30/806 BRUSHLESS motor kit, low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 800Kg. with built-in digital controller B70 series, mechanical limit switch.

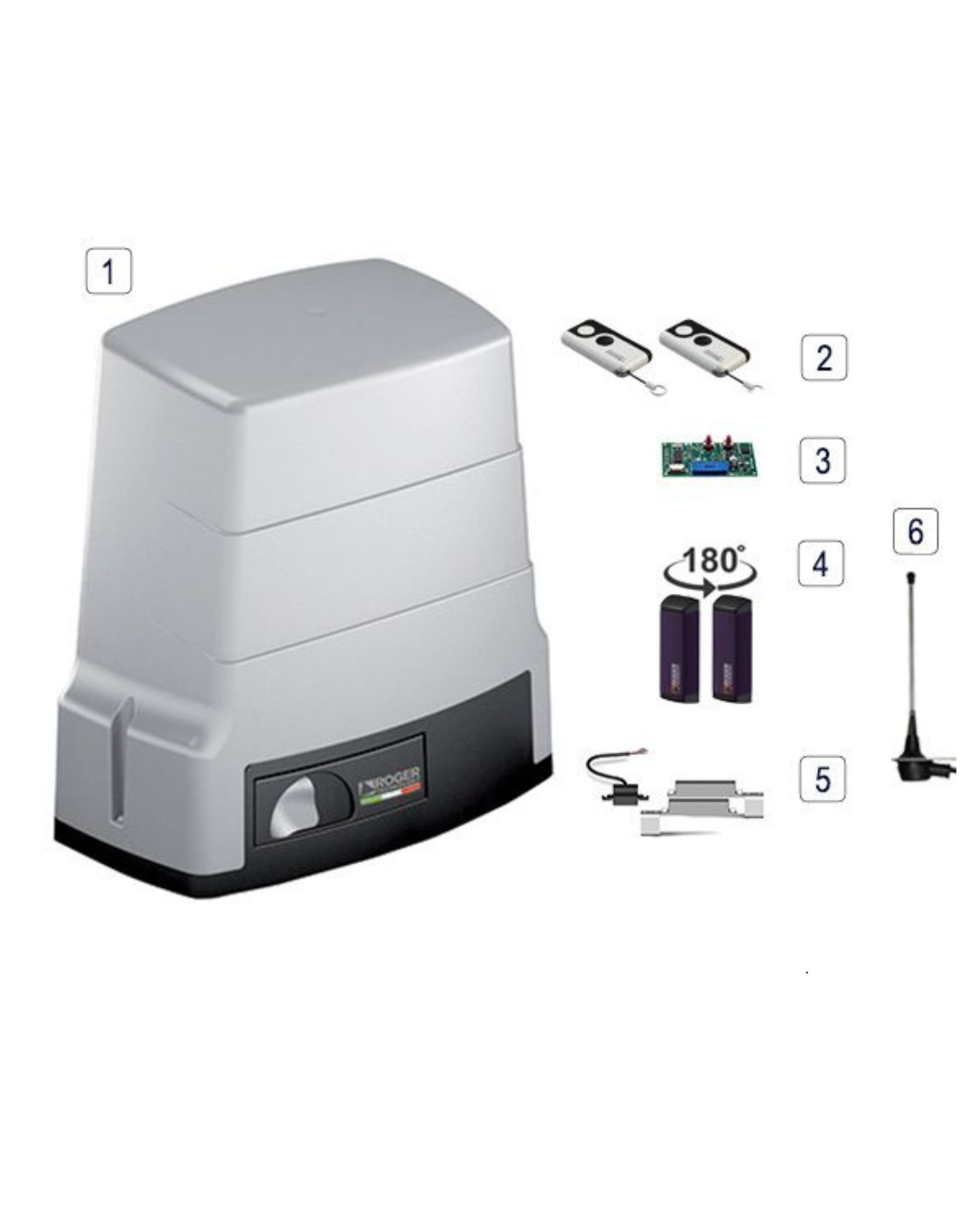

Electric Gate Kit Contents:
[1] Roger BH30/804 Super Intensive Motor & PCB Controller
[2] SYNUS Remote (x2)
[3] H93 Receiver Card
[4] 180° Roger Technology M90 Photocells
[5] MC775 Magnetic Limit Switch
[6] Aerial/Antenna

Electric Motor Features
Ideal: For sliding gates up to max. 800-1000 kg.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation and start up due to its simple functions and its height and depth adjustments.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.

Technical Specifications:
Max Gate Weight: 800-1000kg
Power: 24V
Power rating: 200W
Max thrust: 50 - 1000N
The frequency of use: Intensive use
Operating temperature: -20 C° +55 C°
Protection level: IP 43 Stroke:
Manoeuvre speed: 12 m/min (0.20 m/s)
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Operating cycles per day (opening/closing - 24hrs nonstop): 1300 cycles
Limit switch: Mechanical
Reductor Type: Irreversible

Electric Gate Kit Contents:
[1] Roger BH30/804 Super Intensive Motor & PCB Controller.
[2] E80/TX52R/R Remote Control (x2)
[3] H93 Receiver Card
[4] Aerial / Beacon (Design may vary)
[5] 180° Roger Technology M90 Photocells (Pair)
[6] MC775 Magnetic Limit Switch

Optional Extras:
[7] 4m Steel or Nylon Rack
