Roger Technology SMARTY5/S 36v BRUSHLESS Electric Gate Kit - Single - 5m Max

Industrial Single Electric Gate Automation Kit

The Brushless SMARTY industrial motors are the largest electromechanical actuators in the Roger Technology range. Boasting features such as low voltage & super intensive use, an on-board native encoder, irreversible swing and are suitable for gate leafs up to 7m length! (Smarty 7)

The SMARTY motors are the ideal replacement for hydraulic motors on large gates, bringing the next generation of an on-board safety features.The Edge 1 control board brings features like separate motor power on open and close, and it will run a magnetic lock straight from the board.

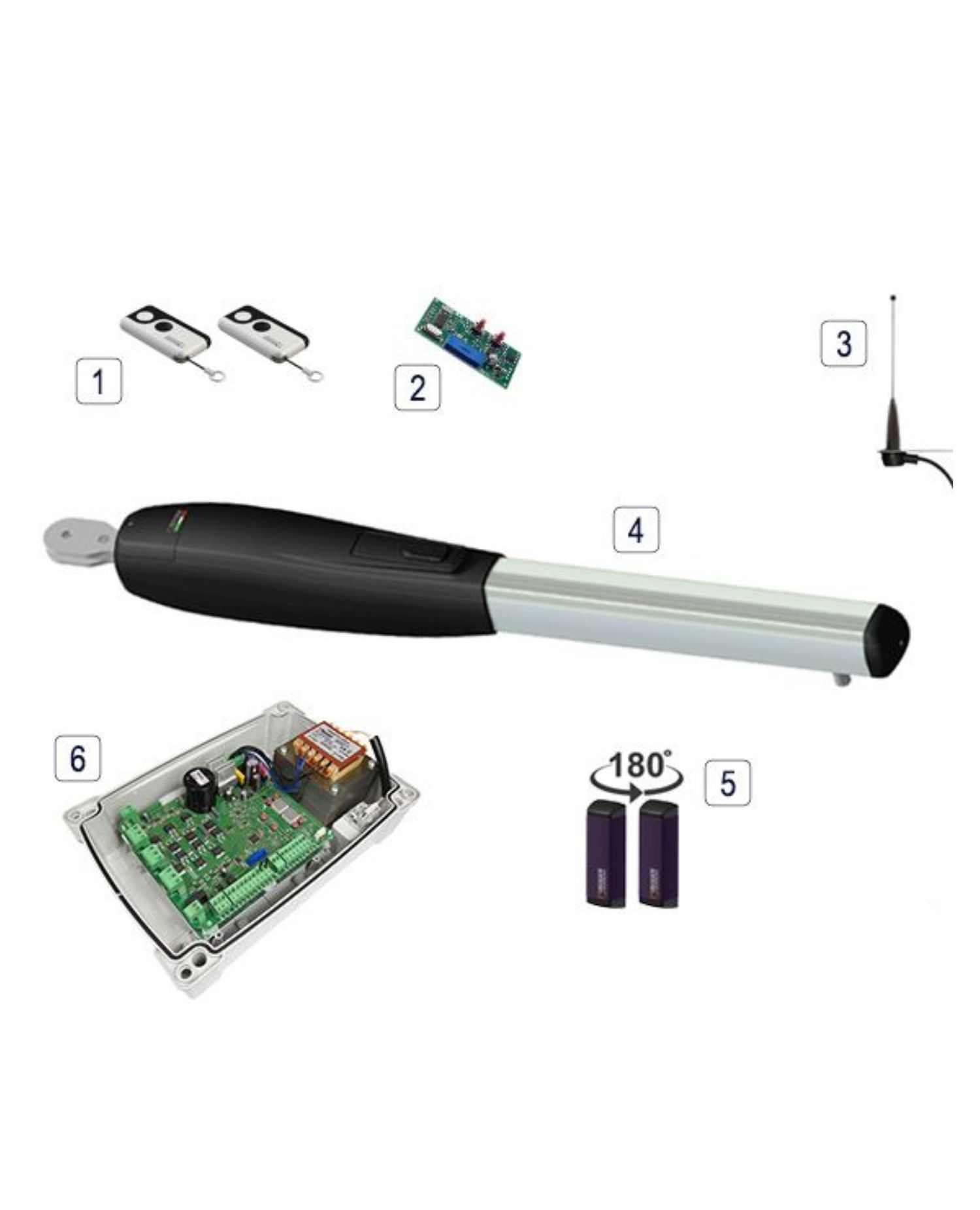

Electric Gate Kit Contents:
[1] SYNUS Remote Control (x2)
[2] H93 Receiver Card
[3] Aerial/Antenna
[4] SMARTY5 Super Intensive Motor (x1)
[5] 180° Roger Technology M90 Photocells
[6] Edge 1 'Digital' Brushless Controller

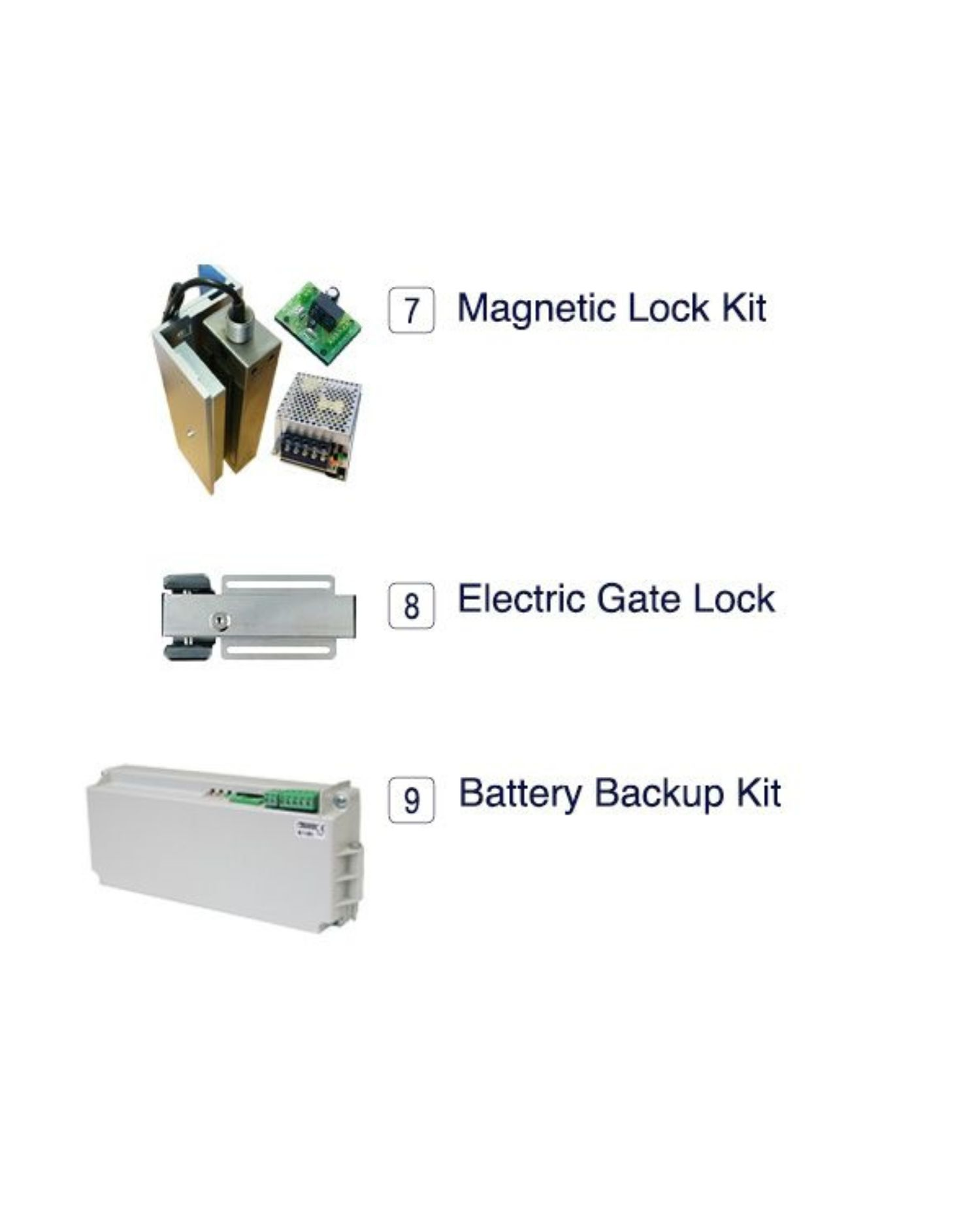

Optional Extras:
[7] Magnetic Lock Kit
[8] Single Electric Gate Lock
[9] B71/BC/INT Battery Backup

Electric Motor Features

Super Intensive Use: Capable of running non-stop.
Twin Heavy Duty Bearings. For swing gates upto 5m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and start up due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate lock
Convenient: Battery back up available

• Power 36V
• Power rating 200W
• Max thrust 600 - 5000N
• Frequency of use Intensive use
• Operating  temperature -20 C° to 55 C°
• Protection level IP 44
• Stroke Max 370 mm
• Manoeuvre speed 1,66 - 1 cm/s
• Opening time at 90° 25 - 40 s
• Maximum dimension product in mm L1162 x W166 x 137H
• Operating cycles per day (opening/closing - 24 hours no stop) 1000 cycles
• Limit switch Mechanical stopper in opening and closing
• Always included in the individual product package or kit Kit 3 hinge plates short, to weld.(KT238), 2 mechanical stop (MC782)
• Reductor Type Irreversible

A mains filter should be fitted on the supply to the control panel. It reduces mains interference and prolongs the life of the PCB.

If you have wooden gates then we strongly recommend the use of our adjustable bracket set as these commercial grade motors come with standard weld-on brackets.
