Roger Technology SMARTY 7 BRUSHLESS 36v Electric Gate Kit - Single

The Brushless SMARTY industrial motors are the largest electromechanical actuators in the Roger Technology range. Boasting features such as low voltage & super intensive use, an on-board native encoder, irreversible swing and are suitable for gate leafs up to 7m length! The SMARTY motors are the ideal replacement for hydraulic motors on large gates, bringing the next generation of an on-board safety features.

The Edge 1 control board brings features like separate motor power on open and close, and it will run a magnetic lock straight from the board.

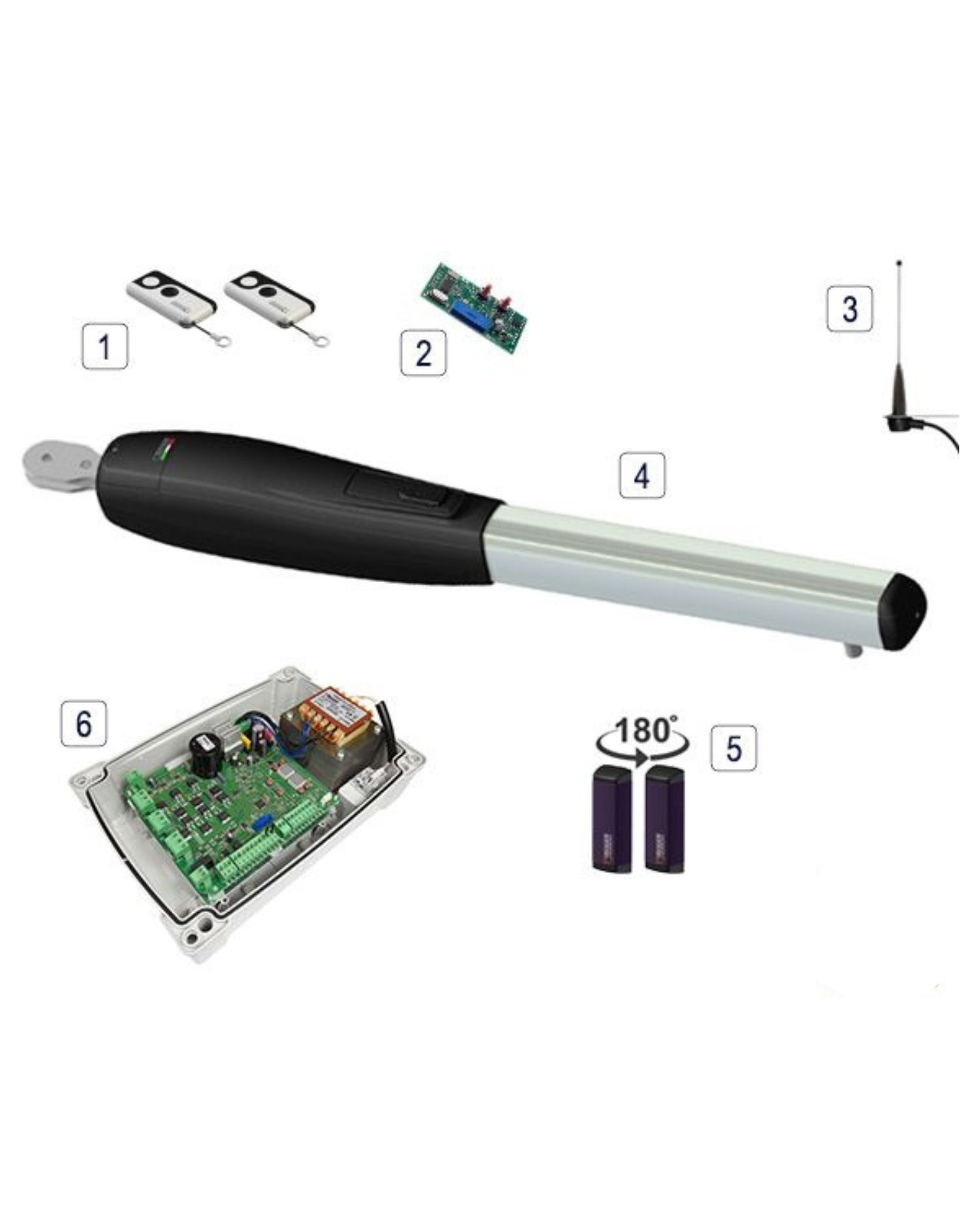

Electric Gate Kit Contents:
[1] SYNUS Remote Control (x2)
[2] H93 Receiver Card
[3] Aerial/Antenna
[4] SMARTY7 Super Intensive Motor (x1)
[5] 180° Roger Technology M90 Photocells
[6] Edge 1 'Digital' Brushless Controller

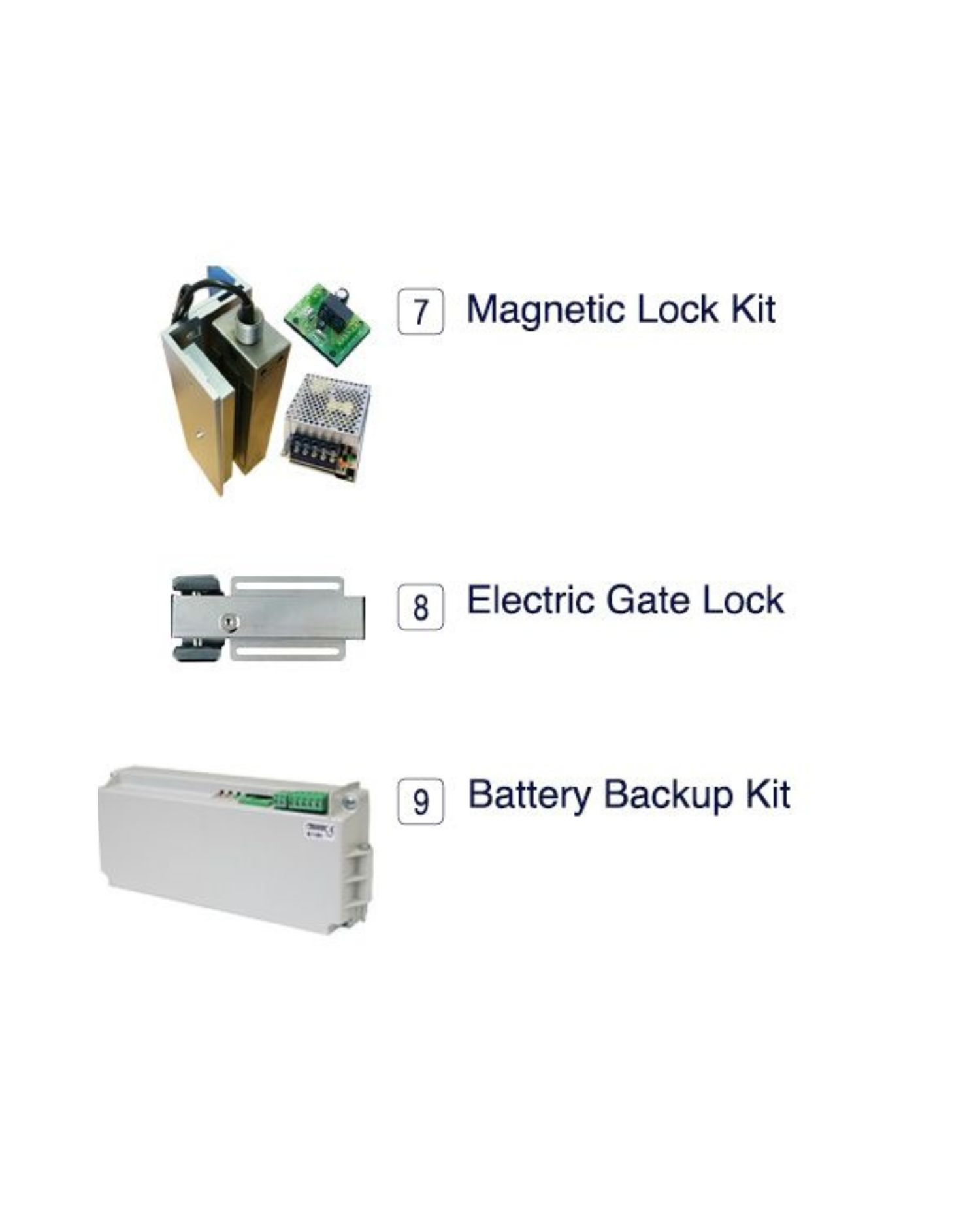

Optional Extras:
[7] Magnetic Lock Kit
[8] Single Electric Gate Lock
[9] B71/BC/INT Battery Backup

Features:
Super Intensive Use: Capable of running non-stop.
Twin Heavy Duty Bearings. For swing gates upto 7m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.

Technical Specifications:
Power 36V
Power rating 200W
Max thrust 600 - 5000N
Frequency of use Intensive
Operating temperature -20 C° to 55 C°
Protection level IP 44
Stroke max 520 mm
Manoeuvre speed 1,66 - 1cm/s
Opening time at 90° 35-50 s
Maximum dimension product in mm L1312 x W166 x 137H
Operating cycles per day (opening/closing - 24 hours no stop) 1000 cycles
Limit switch Mechanical stopper in opening and closing
Always included in the individual product package or kit Kit 3 hinge plates short, to weld.(KT238), 2 mechanical stop (MC782)
Reductor Type Reductor Type
