Roger Technology SMARTY 7 36v BRUSHLESS Electric Gate Kit - Double

The Brushless SMARTY industrial motors are the largest electromechanical actuators in the Roger Technology range. Boasting features such as low voltage & super intensive use, an onboard native encoder, irreversible swing and are suitable for gates up to 7m length! The SMARTY motors are the ideal replacement for hydraulic motors on large gates, bringing the next generation of on-board safety features.

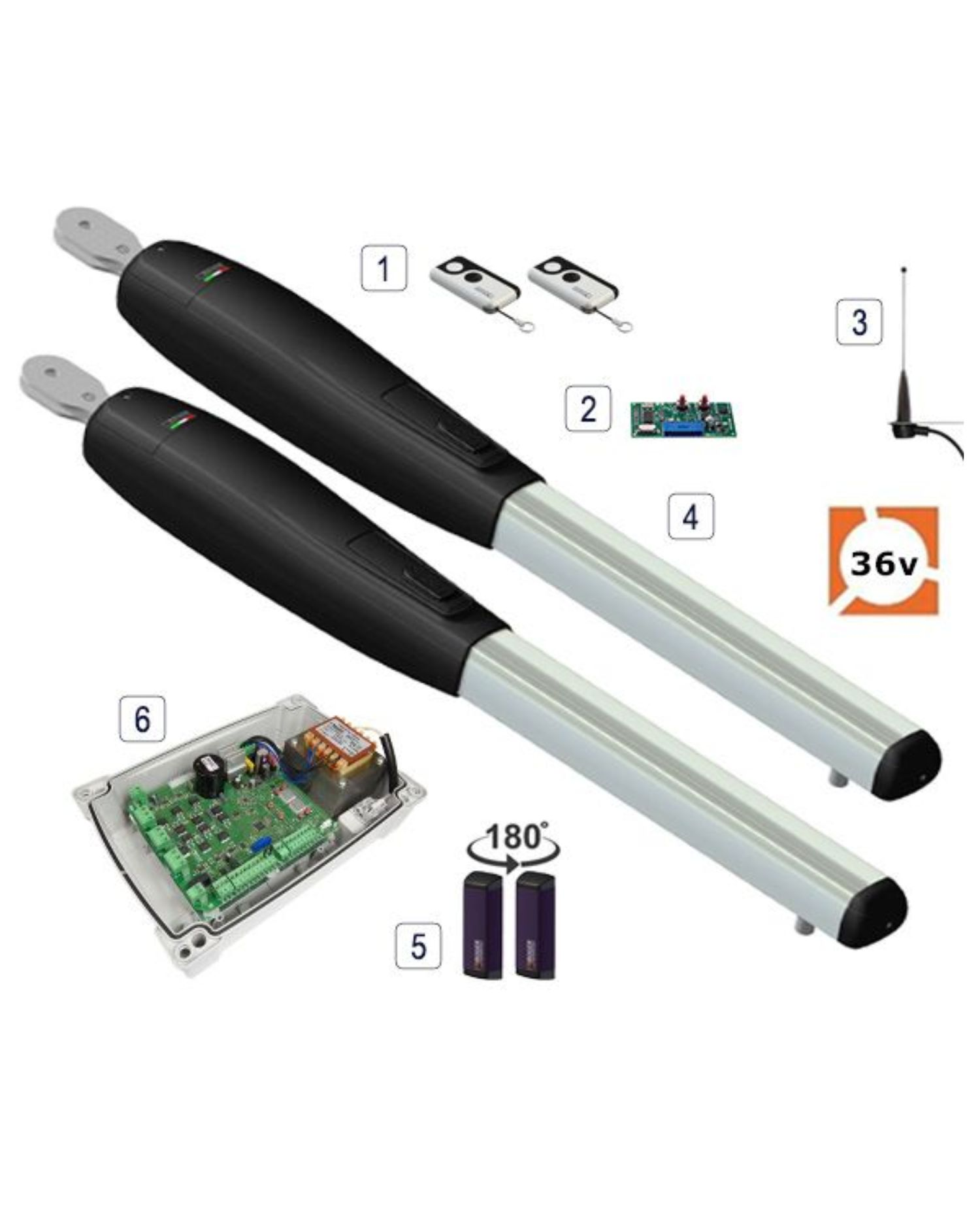

Kit Contents:

[1] SYNUS Remote Control (x2)
[2] H93 Receiver Card
[3] Aerial/Antenna
[4] SMARTY7 Super Intensive Motor (x2)
[5] 180° Roger Technology M90 Photocells
[6] Edge 1 'Digital' Brushless Controller

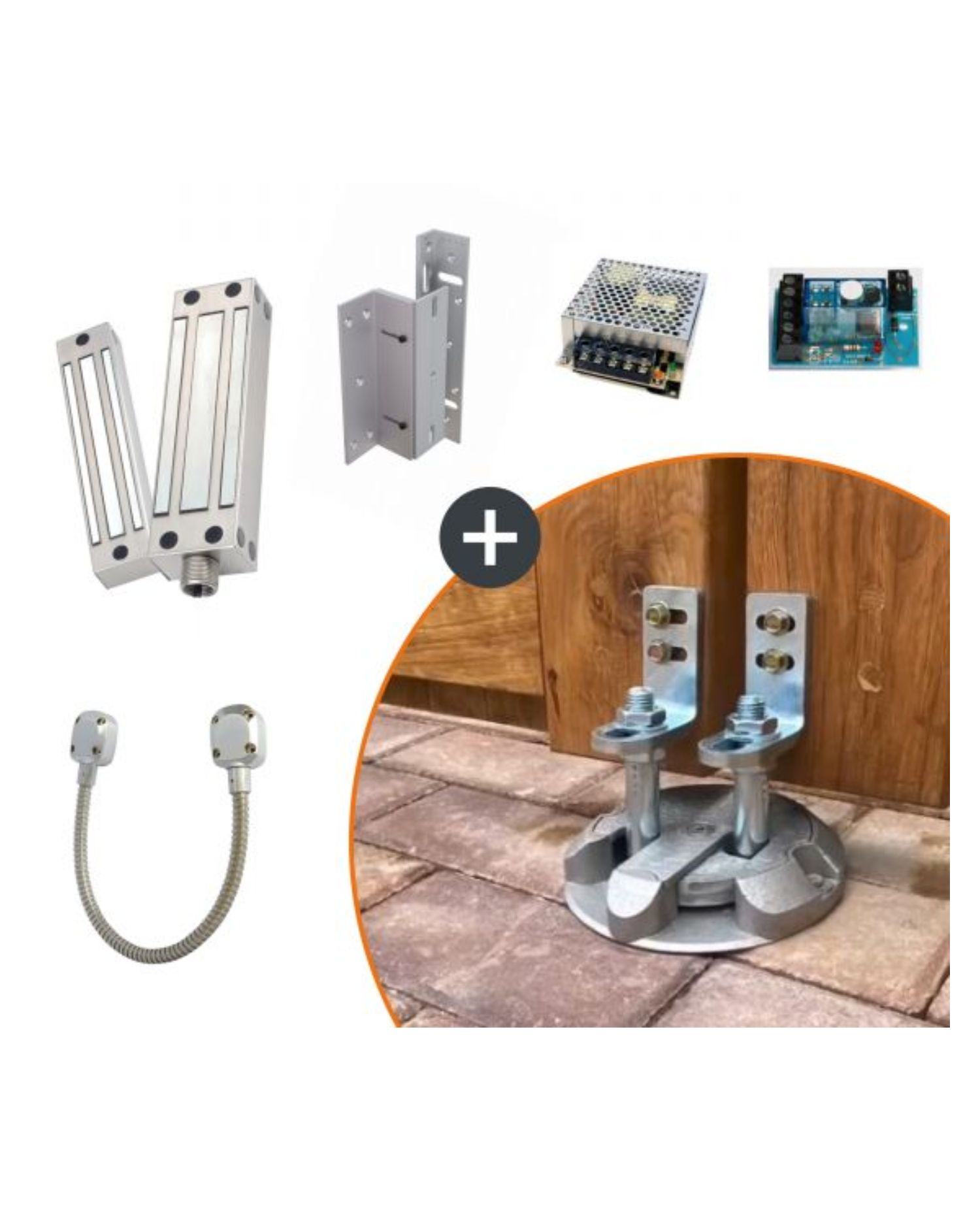

Optional Extras:

Double Gate Magnetic Lock Kit [A]
Interlocking floor device (left or right)
Adjustable pin and bracket kit (8mm Bracket)
Door Loop
250kg Maglock
Z & L Bracket
VHLR - Relay
2.5amp Lock Power Supply

Features include:
Super Intensive Use: Capable of running non-stop.
Twin Heavy Duty Bearings: For swing gates up to 7m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.

Technical Specifications.
Power 36V
Power rating 200W
Max Thrust 600 - 5000N
Frequency of use Intensive use
Operating temperature -20 C° to 55 C°
Protection level IP 44
Stroke max. 520mm
Manoeuvre speed 1,66 - 1 cm/s
Opening time at 90° 35-50 s
Maximum dimension product in mm L1312 x W166 x 137H
Operating cycles per day (opening/closing - 24 hours no stop): 1000 cycles
Limit switch: Mechanical stopper in opening and closing
Always included in the individual product package or kit: Kit 3 hinge plates short, to weld.(KT238), 2 mechanical stop (MC782).
Reductor Type: Irreversible
