Roger Technology R23/373S 230v Electric Gate Kit - Single

Single Electric Gate Automation Kit
Electro-mechanical gear for swing electric gates for residential use up to 3.6 metres in width; ideal for gates with large posts, it comes complete with release handle and key. The main structure is in die-cast aluminium and the steel gears ensure a long lasting and silent operation.

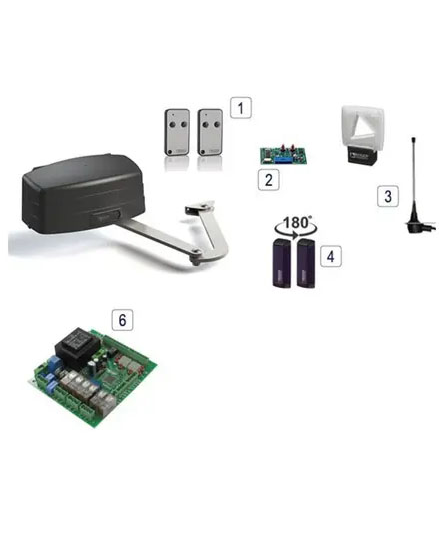

Electric Gate Kit Contents:
[1] E80/TX52R/R Remote Control (x2)
[2] H93 Receiver Card
[3] Aerial / Beacon (Design may vary)
[4] 180° Roger Technology M90 Photocells
[5] R23/372 230v Articulated Motor
[6] H70/200AC Control Board

Should your pillars or the (B) measurement be larger than 250mm please add the LT303 extension arms to your basket (See figure 1 on the right for details).

Technical Specifications:
Power supply 230V
Rating 200W
Thrust 400N
Duty cycle IP 43
Jogging 50%
Motor Overload Cutout 140 C
Working temperature -20°C to 70°C
Actuator weight 15.5 kg
Time for opening 90° 14s

A mains filter should be fitted on the supply to the control panel.
It reduces mains interference and prolongs the life of the PCB.

If you have wooden gates then we strongly recommend the use of our adjustable bracket set as these commercial grade motors come with standard weld-on brackets.
