Roger Technology R23/373D 230v Electric Gate Kit - Double

Name: Roger Technology R23/373D 230v Electric Gate Kit - Double
SKU: SETR23/373
Price: 1378.8 GBP
Availability: OutOfStock

Write a review

CODE: SETR23/373

£1,378⁸⁰

£1,149⁰⁰ exc. VAT

In Stock

Introducing the Double Electric Gate Automation Kit, designed specifically for residential use with swing electric gates up to 3.6 meters in width. This electro-mechanical gear is perfect for gates with large posts, ensuring robust performance and longevity. The kit includes a convenient release handle and key for easy manual operation when needed.

Constructed from die-cast aluminum, the main structure guarantees durability, while the steel gears provide a long-lasting and silent operation. Whether you're upgrading your home’s entryway or enhancing security, this double electric gate automation kit is the ideal solution for seamless access and peace of mind.

+ −

Double Electric Gate Automation Kit

Electro-mechanical gear for swing electric gates for residential use up to 3.6 metres in width; ideal for gates with large posts, it comes complete with release handle and key. The main structure is in die-cast aluminium and the steel gears ensure a long lasting and silent operation.

Delivery (Free UK Mainland for orders over £120*)

Payment options

Unsure of what you need?

Leaf Max Size3.5m

Description
Features
Attachments
Reviews

Double Electric Gate Automation Kit
Electro-mechanical gear for swing electric gates for residential use up to 3.6 metres in width; ideal for gates with large posts, it comes complete with release handle and key. The main structure is in die-cast aluminium and the steel gears ensure a long lasting and silent operation.

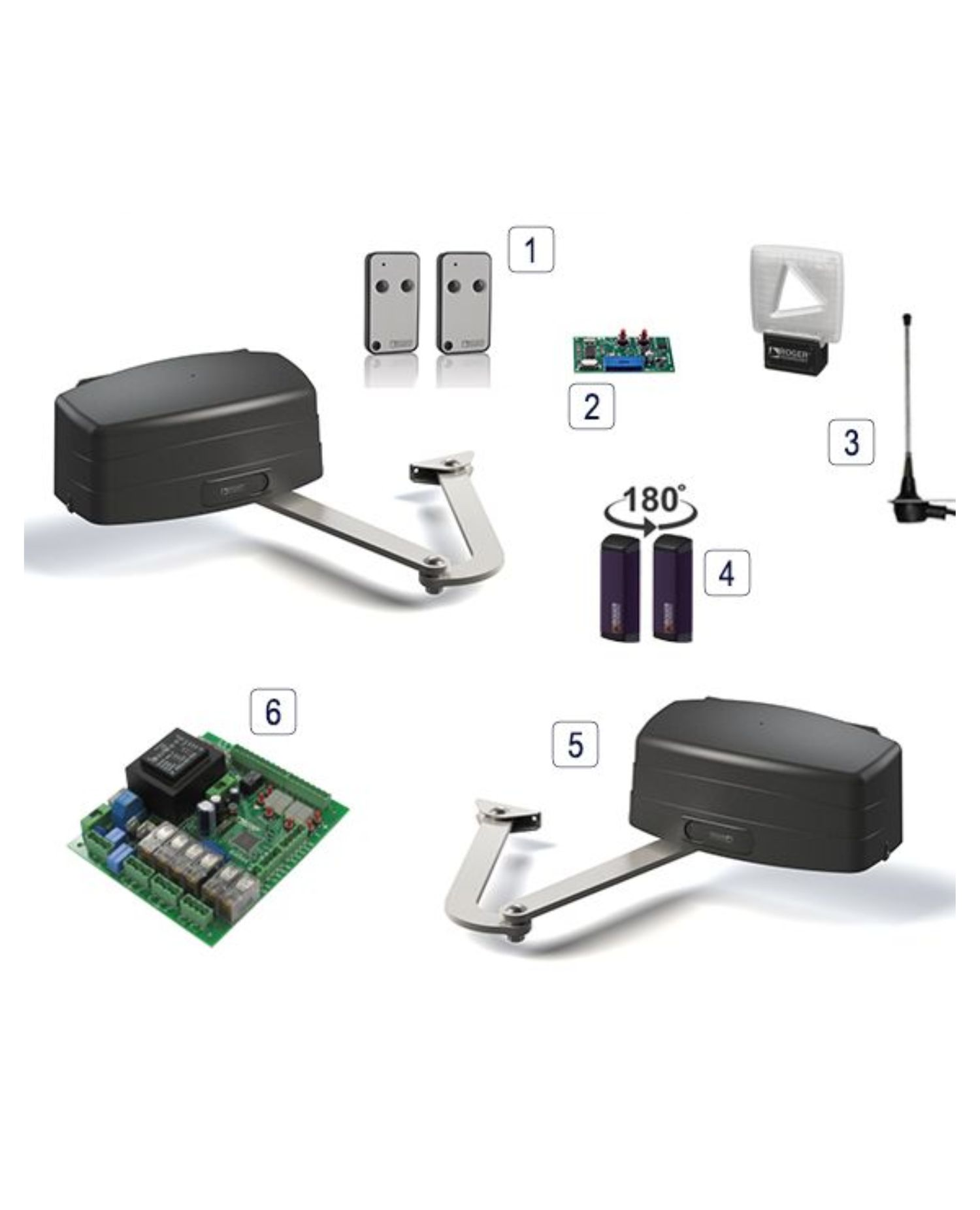

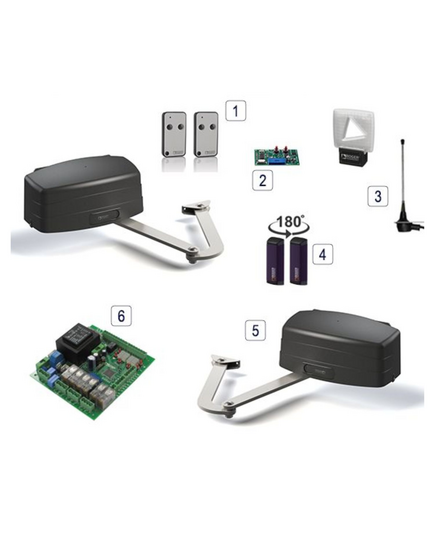

Electric Gate Kit Contents:
[1] E80/TX52R/R Remote Control (x2)
[2] H93 Receiver Card
[3] Aerial / Beacon (Design may vary)
[4] 180° Roger Technology M90 Photocells
[5] R23/372 230v Articulated Motors (x2)
[6] H70/200AC Control Board

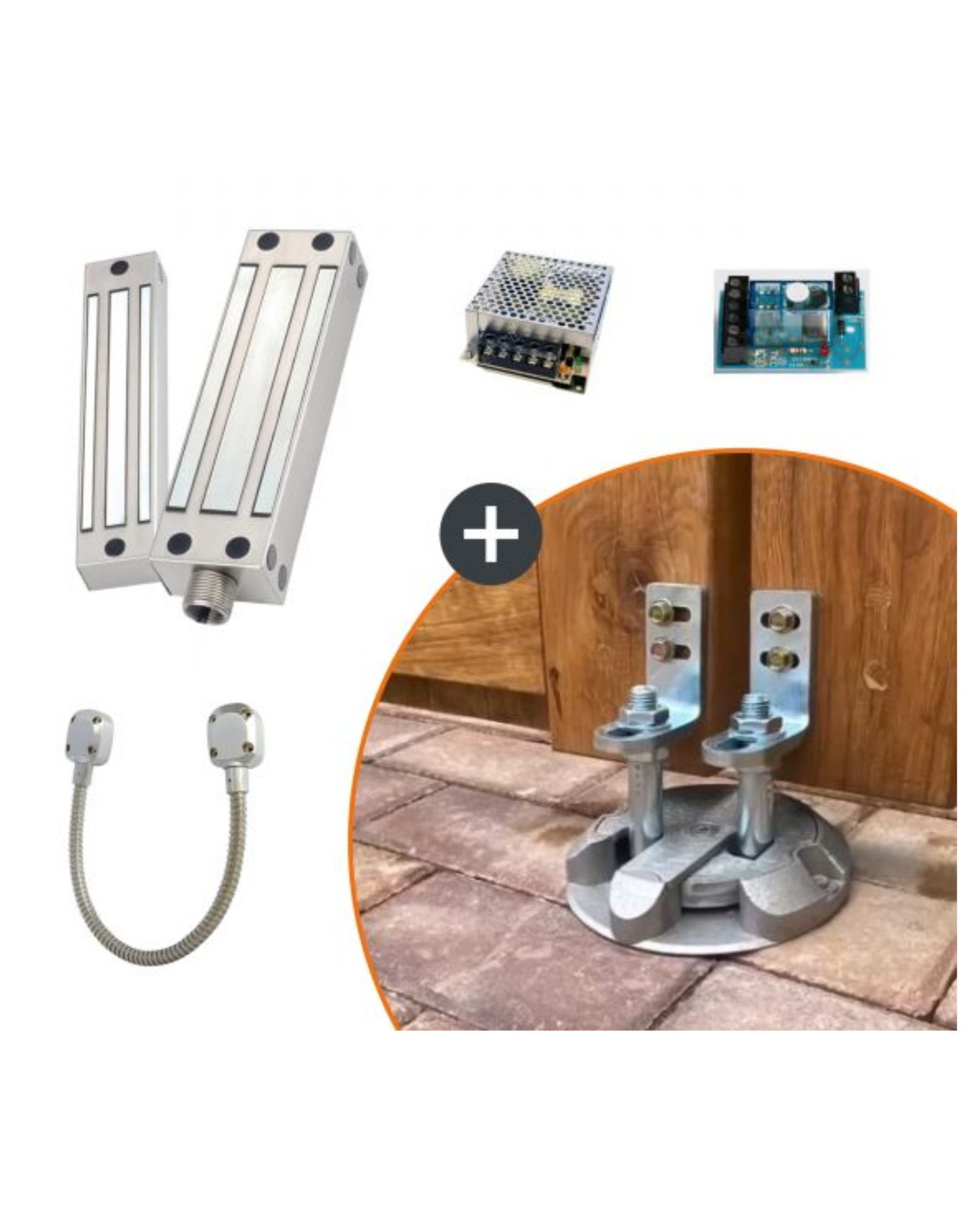

Optional Extras:

Double Gate Magnetic Lock Kit [A]

Interlocking floor device (left or right)
Adjustable pin and bracket kit (8mm Bracket)
Door Loop
250kg Maglock
Z & L Bracket
VHLR - Relay
2.5amp Lock Power Supply

Technical Specifications:
Power supply 230V
Rating 200W
Thrust 400N
Duty cycle IP 43
Jogging 50>#br###Motor Overload Cutout 140 C
Working temperature -20°C to 70°C
Actuator weight 15.5 kg
Time for opening 90° 14s

FREE Roger Mains brochure (R23/372 Page 34) (Roger_Technology_Mains_Catalogue___Egates_Knowledge_Base.pdf, 45,146 Kb) [Download]

Motor Datasheet (R23372__1_.pdf, 449 Kb) [Download]
