Roger Technology H21/510 230v Electric Gate Kit - Double

Double Electric Gate Automation Kit
The Roger Technology H21 underground motor is the largest belowground electric gate motor in the Roger Technology fleet. The Heavy duty underground gate kit is capable of automating 5m per wing. Features steel cut gears for long life maintenance-free motors. The positive drive system enables full control of the gate throughout the opening and closing cycles.

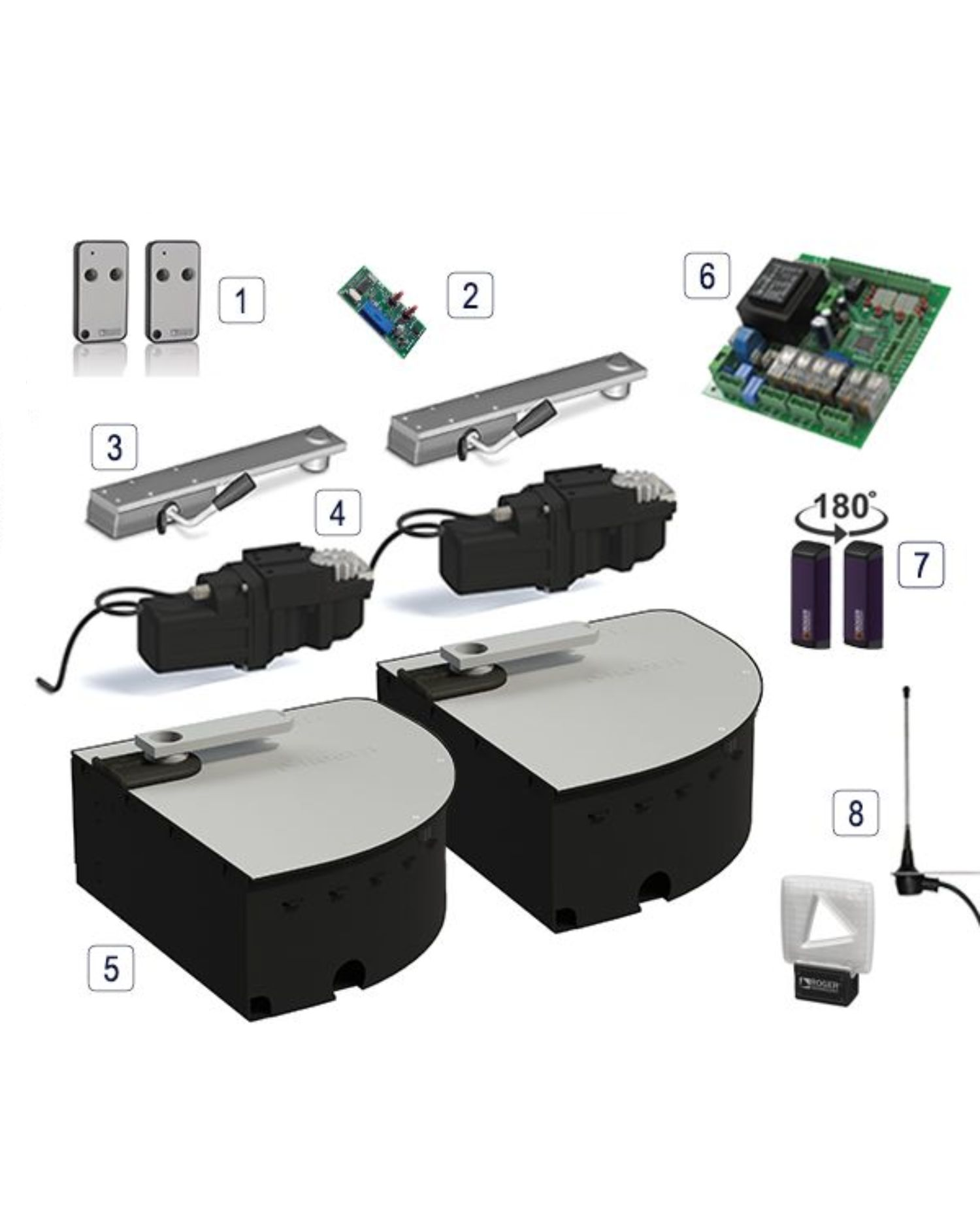

Electric Gate Kit Contents
[1] E80/TX52R/R Remote Control (x2)
[2] H93 Receiver Card
[3] RL750 Release Lever
[4] H21/500 Heavy Duty Motor (x2)
[5] FU500 Foundation Box (x2)
[6] H70/22 230v Control Panel
[7] 180° Roger Technology M90 Photocells
[8] Aerial / Beacon (Design may vary)

Electric Motor Features
Reliable and robust: The new gear motor completely made from aluminium die casting with IP67 protection, designed to meet very important installation requirements for swing gates with particular weights and dimensions.
Indestructible and almost invisible: Due to its robust foundation box and the development of the movement of the motor all based on a rack with an adjustable mechanical stop, allows completely linear movement of the suspended completion motor.
The kit uses a hot-dipped, galvanised foundation box with an internal opening and closing limit switches
Foundation box is compact and designed specifically to not intrude on the ground or the public area, available with a cover made from cold-dip galvanised steel and a cover made from AISI 304 stainless steel.

A mains filter should be fitted on the supply to the control panel.
It reduces mains interference and prolongs the life of the PCB.

If you have wooden gates then we strongly recommend the use of our adjustable bracket set as these commercial grade motors come with standard weld-on brackets.
