Roger Technology BR21/363 BRUSHLESS 36v Electric Gate Kit - Double

Write a review
KITBR21363
£1,99560
£1,66300 exc. VAT
In Stock

The Roger Technology BR21/361 Brushless underground electric gate kit provides powerful automation for swing gates up to 4.5 meters in length and 600 kg per leaf, with a reliable low-voltage, twin-bearing design.

+ −
Add to Quotation

The Roger Technology BR21/361 Brushless underground electric gate kit is our best seller thanks to its single bearing 600kg load capabilities. This below ground gate kit can automate leafs up to 4.5m.

BR21/361 Electromechanical actuator BRUSHLESS, low voltage, super intensive use, twin bearing, 10m cable, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 4.5.m lengths, with mechanical stopper in opening and closing.


Delivery (Free UK Mainland for orders over £120*)
Payment options
Unsure of what you need?
Leaf Max Size4.5m

Configure your security camera system:

Double Electric Gate Automation Kit
The Roger Technology BR21/363 Brushless underground electric gate kit is our best seller thanks to its single bearing 800kg load capabilities. This below ground gate kit can automate leafs up to 5.0mt length dependant on gate construction - see above).

Underground Electic Gate Kit - BR21/363
Electric Gate Motor Included - BR21/361
Foundation Box - Upgraded FU100 Cold Galvanised Foundation Box

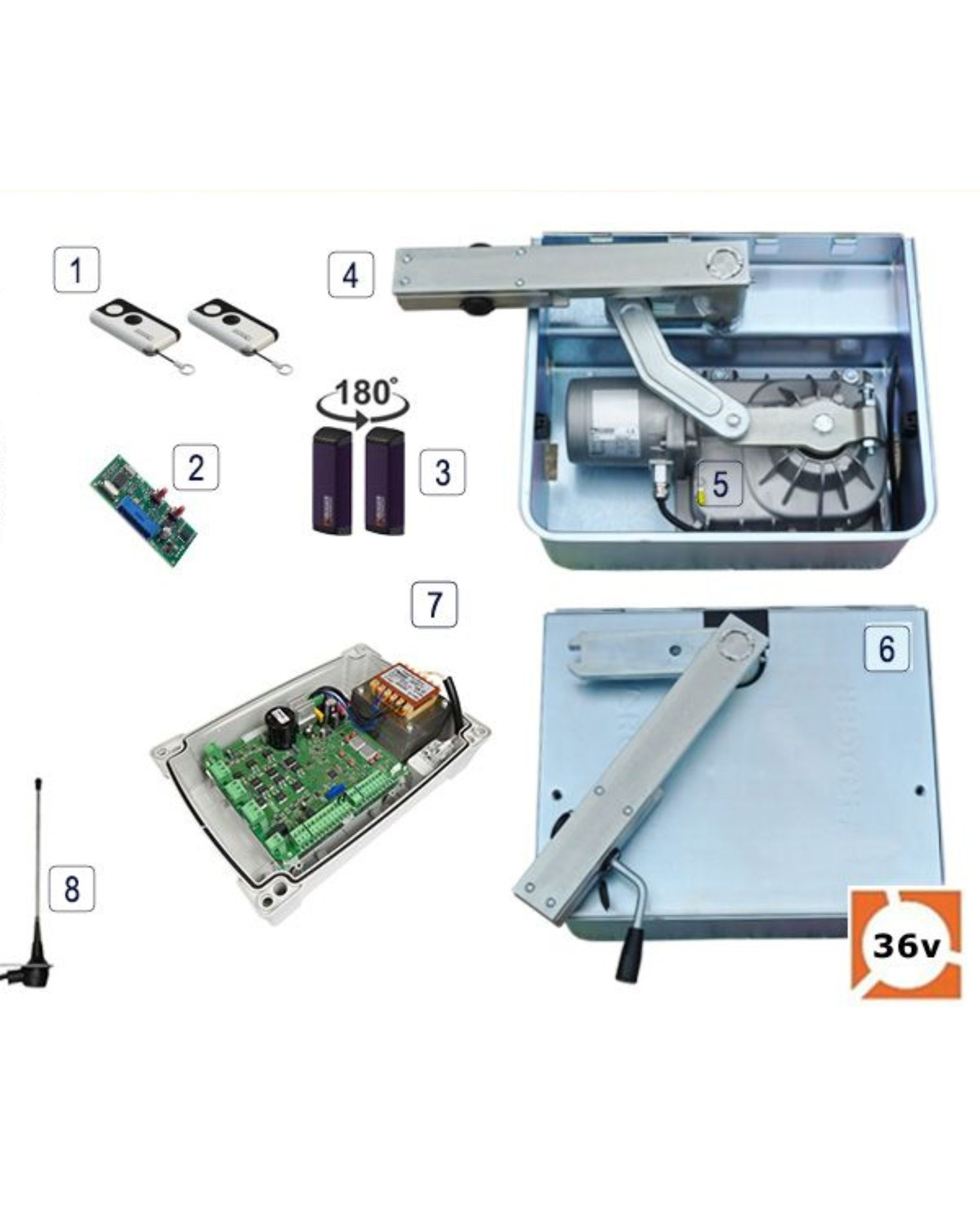

Electric Gate Kit Contents
[1] SYNUS Remote Control (x2)
[2] H93 Receiver Card
[3] 180° Roger Technology M90 Photocells
[4] RL650 Release Mechanism
[5] Roger BR21/361 Super Intensive Motor (x2)
[6] FU100 Foundation Box (x2)
[7] EDGE 1 36v Digital Control Panel
[8] Aerial/Antenna

Electric Motor Features
Super Intensive Use: Capable of running non-stop.
Single Bearings: Can carry up to 800kg.
Long Cable: 10m of cable (No joining required)
Ideal: For swing gates up to 5.0mt length dependant on gate construction - see above).
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate the lock
Convenient: Battery back up available.

Power line supply:    230V AC - 50Hz
Motor power supply:    24V - 36V
Power rating:    200W
Frequency of use:    Intensive use
Torque:    50 - 300 N m
Operating temperature:    -20+55°C
Protection level:    IP67
Reductor Type:    Irreversible
Manoeuvre speed:    1,2 Rpm
Opening time:    19-29 s
Limit switch:    Mechanical stoppers
Recommended digital controllers:    230V: EDGE1/BOX - 115V: EDGE1/BOX/115
Encoder:    Digital native encoder SENSORLESS 48 PPR
Maximun opening:    105°(optional 125° - 360°)
Power supply cable length:    10m
Bearing on main shaft:    Standard






Leaf Max Size
4.5m
Voltage
36V DC
Find similar

FREE BR21 Series brochure (Roger_Brushless_BR21_Brochure___Egates_Knowledge_Base.pdf, 15,656 Kb) [Download]

Instruction Manual for the Roger R21 Brushless Swing Gate Operator (Roger_BR21_Brushless_Swing_Gate_Operator_Instruction_Manual___Egates_Knowledge_Base.pdf, 870 Kb) [Download]

Instruction manual for the Roger FU100 Foundation Box (Roger_FU100_Foundation_Box_Instruction_Manual___Egates_Knowledge_Base.pdf, 2,401 Kb) [Download]
