Roger Technology BG30/2206 36v BRUSHLESS Electric Sliding Gate Kit - 2200kg

The Roger Technology BG30/2206 is a 2200kg industrial sliding electric gate kit which includes mechanical limit switch making it the safest sliding gate motor on the market which is perfect for openings to up 40m or 2200kg.

Roger Technology BG30/2206 INDUS BRUSHLESS motor kit, 36v single phase, intensive use, with native encoder onboard, irreversible ideal for sliding gates up to 2200Kg with a built-in control board and magnetic limit switch.

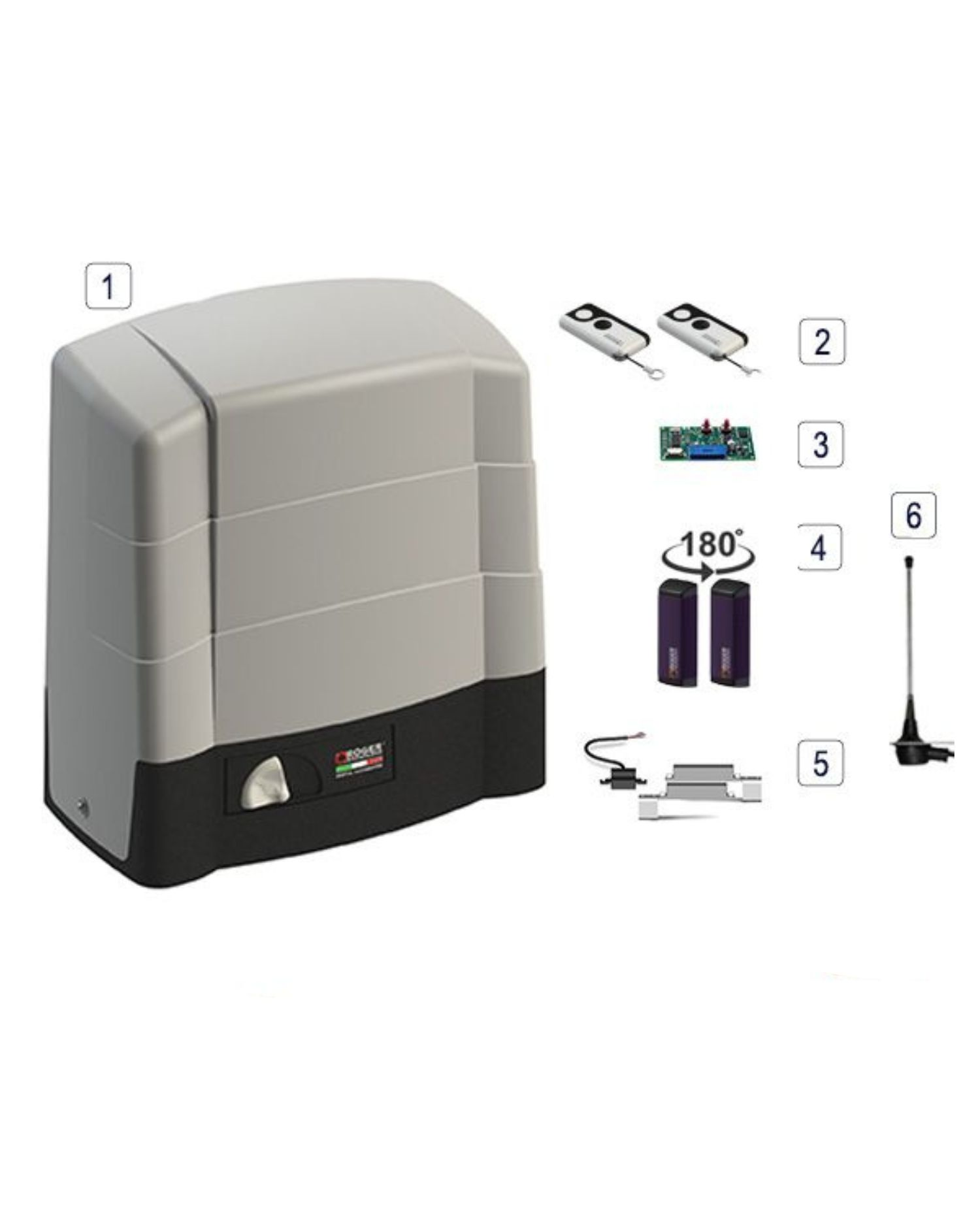

Kit Contains:
[1] Roger BG30/2204 Intensive Motor & PCB Controller
[2] SYNUS Remote (x2)
[3] H93 Receiver Card
[4] 180° Roger Technology M90 Photocells
[5] MC775 Magnetic Limit Switch
[6] Aerial/Antenna

Features:
Ideal: For commercial sliding gates up to 2200kg.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and start up due to its simple functions and its height and depth adjustments.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate lock.

Technical Specifications:
Max Gate Weight: 2200 kg
Power Line Supply: 230V AC - 50Hz
Motor Power Supply: 36V -
Power Rating: 470W -
Frequency of use: Intensive use
Thrust: 50 - 1700N -
Operating Temperature: -20+55°C -
Protection Level: IP43
Reductor: Type Irreversible
Manoeuvre Speed: 10 m/min (0.16 m/s)
Limit Switch: Magnetic
Onboard Control Unit: B70/1DCHP -
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR -
Batteries: recovery Optional 2 external battery 12V 4,5AH -
Type exit gear: Z17/mod 4
Operating cycles per day: (opening/closing - 24 hours no stop) 1000

Kit Contains:
[1] Roger BG30/2204 Intensive Motor & PCB Controller.
[2] E80/TX52R/R Remote Control (x2)
[3] H93 Receiver Card
[4] Aerial / Beacon (Design may vary)
[5] 180° Roger Technology M90 Photocells (Pair)
[6] MC775 Magnetic Limit Switch

Optional Extras:
[7] 4m Steel or Nylon Rack
