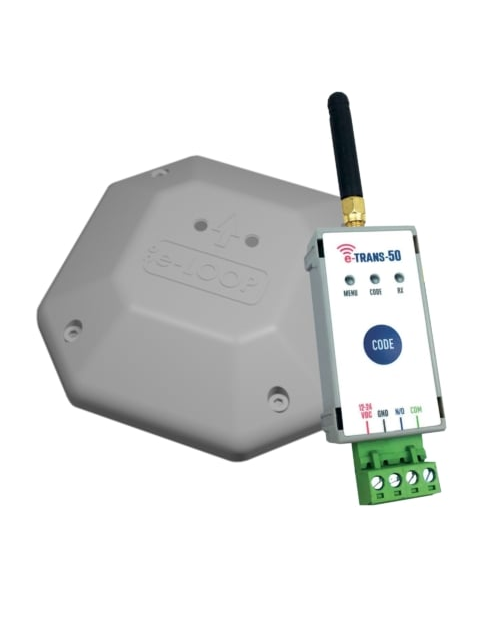

AES EL00M-K E-Loop domestic kit with 50 transceiver for exit mode (Vehicle detector)
All Eloop range require a 12V-1A-PSU for power supply, can not be wired direct to the gate automation control panel for power.

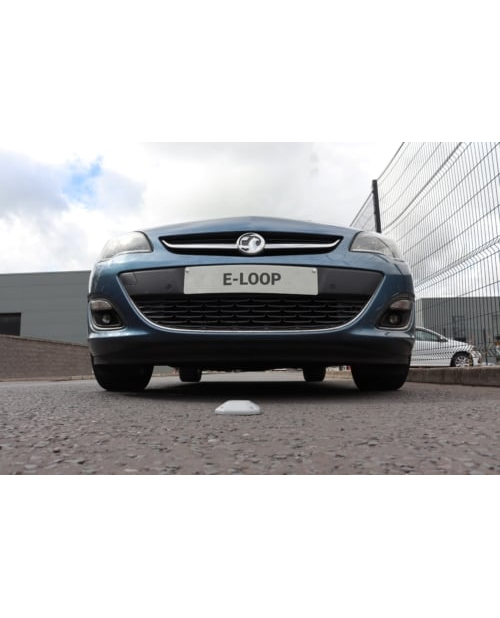

The e-Loop Mini is a simple bolt-in replacement for automatic vehicle detection systems for exit mode only.
Simply connects to your existing gate controller. This allows the e-loop mini to be used on almost any domestic gate. It utilizes magnetic sensor technology to provide a reliable, safe and cost-effective solution to automatic vehicle detection. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed on the surface of entry or exit passages using dynabolts, content to replace AA batteries, can the stand almost any vehicle.
Quick and easy installation.
Small compact design (120mm x 120mm x 30mm high).
Static load capacity 2500kg.
Uses standard 1.5V AA Lithium batteries (not included) providing up to 3 years of battery life.
High-security 128-bit encryption.
Range up to 50 meters.
Note: Gate or door controller must have a dedicated open input and autoclose function enabled.
Functions / Features
Lower power consumption
3-axis magnetometer for vehicle detection
• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode
Fast and simple installation
• Quick non-permanent installation
• Compact design
Up to 4 year battery life
Reliable radio communications with transceiver
• Reliable radio communication
• High security 128-Bit AES Encryption
