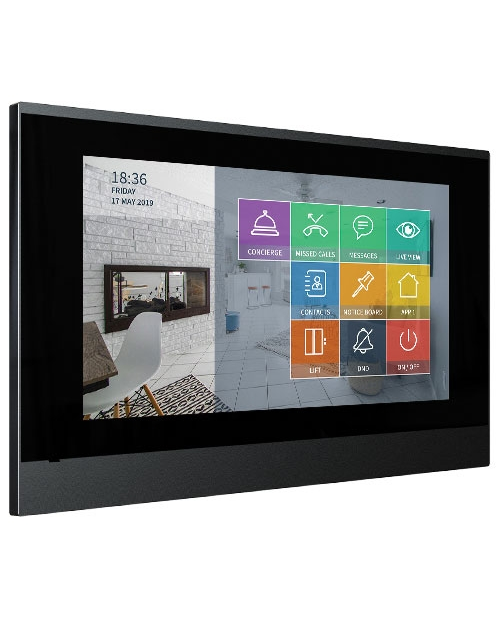

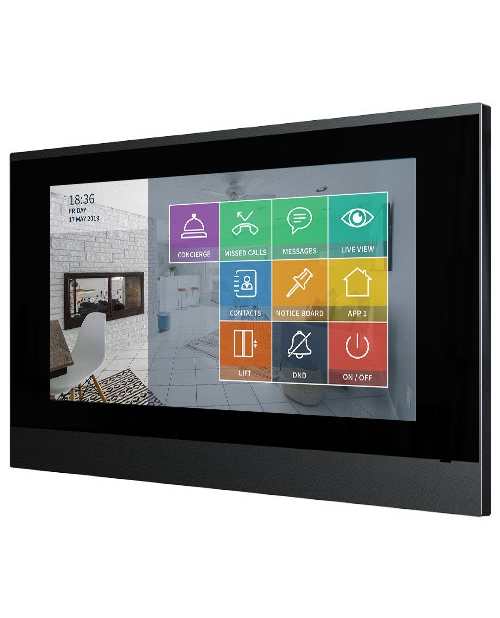

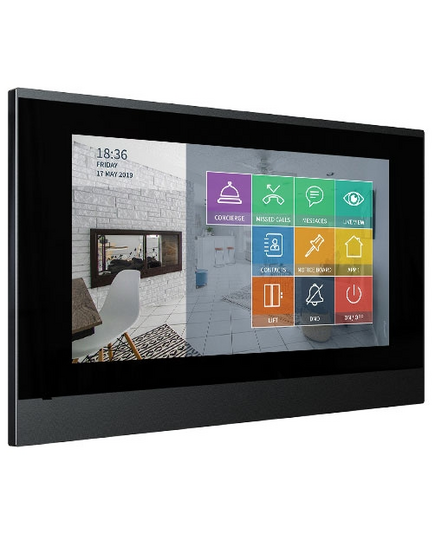

The Akuvox X7HD is a cost-effective, professional Touchscreen Door Entry Monitoring Panel with Android operating system.

Providing HD video and high quality communication for door intercom & video phone systems via SIP 2.0 protocol, the Akuvox X7HD is ideal for residential and multi-point MDU door entry systems.

This IP-connected door answering panel provides a stylish, budget-friendly touchscreen experience in an unobtrusive, space-saving design featuring 7" HD capacitive touchscreen display.

The Akuvox X7HDW is a professional, but cost-effective indoor intercom panel for interior use and is ideal for integration as part of an Akuvox Door Entry System using the Akuvox Intercom product range.

Ideal for use in MDUs (multi-dwelling units), apartments, home automation systems and high specification office environments.

Also available as WiFi-connected version - Model No. X7HDW.

Application Scenarios
• Apartment complexes / MDUs
• Home automation systems
• Modern interiors
• Villas

• 7 inch capacitive screen
• Android operating system; simple to use, control and configure
• Remote door unlocking
• Receive video and audio from connected intercom / door access devices on the network
• Easily integrates with SIP systems
• Finished in black

• Touch Screen Display Active matrix TFT, transmissive type, Aspect Ratio: 16:9, Resolution: 1024 x 600, Brightness: 300nits (cd/m²), Contrast: 800:1, Colour Depth: 24-bit, 16M colours, Illumination: Edgelit LED
• Touch Screen 7 inch (176 mm) diagonal, Projected Capacitive
• Video Streaming Formats: H.264
• Audio Built-in microphone and speaker
• Memory RAM 1GB, Flash 8GB
• Ethernet 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant
• Alarm Out: 1x Alarm output relay (Dry Contact), In: 8x Alarm input terminals
• Bell In: 1x Bell input terminal
• Operating Temperature -10° to 45°C
• Humidity 10% to 90% (non-condensing)
• Dimensions 132(H) x 200(W) x 17.5(D) mm
• Weight (Net) 0.90kg
• Weight (Gross) 1.00kg
