The Akuvox R29CBLK SIP Touchscreen Intercom is one of the most advanced, smart IP door intercom devices on today's market.

Featuring a high-impact touchscreen interface with intuitive Android-based user interface, this smart door phone device offers a wide range of authentication options for door intercom and access control systems.

The Akuvox R29CBLK Door Intercom is fully-equipped with Dual-cameras, NFC & Bluetooth contactless authentication, RFID Card Reader, secure infrared Face Recognition and QR Code Scanner for an all-round secure, smart intercom/access system.

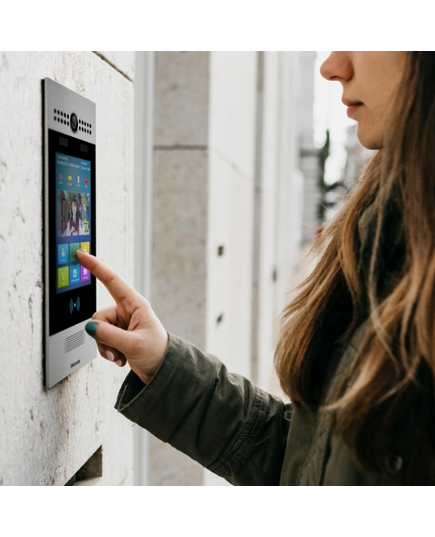

• Secure infrared Face Recognition

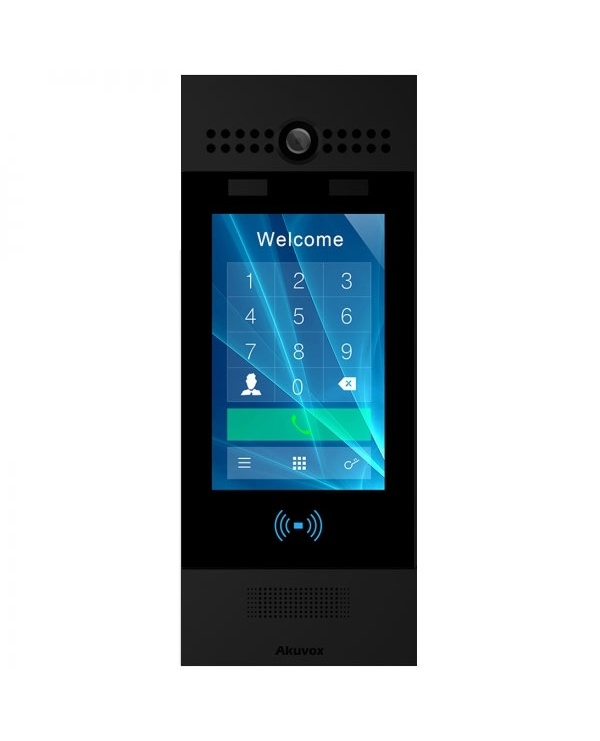

• Touchscreen Keypad
• Touchscreen Digital Phonebook
• NFC & Bluetooth contactless via Smartphone
• RFID contactless via ID card or keyfob
• QR Code (eg. for one-time access)

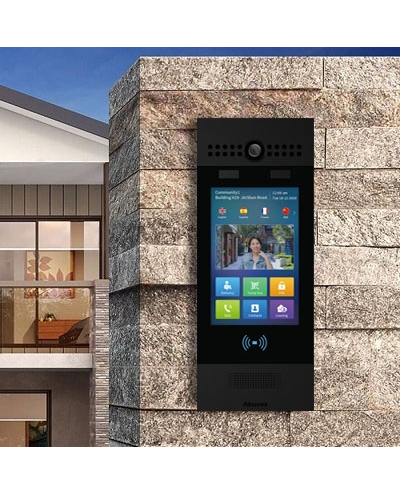

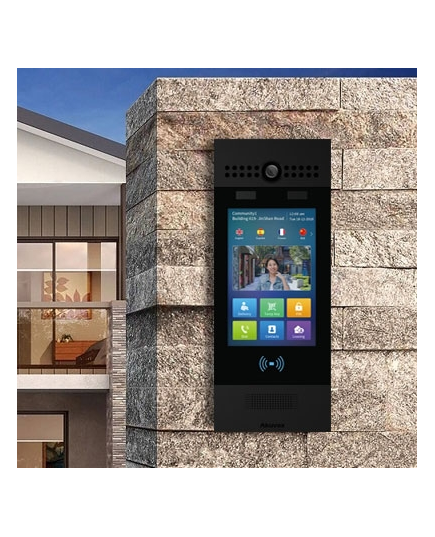

The R29CBLK Intercom can be used for door entrance or gate systems and is IP65 rated for outdoor and high impact areas.
This advanced door entry device also supports ONVIF open standard for effective integration with other 3rd party IP systems and devices such as IP CCTV cameras, NVRs, etc.

SIP Endpoint
• SIP v1(RFC2543), SIP v2(RFC3261)
• Audio codecs: G.711a, G.711μ, G.722
• Video codecs: H.264
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video
• Resolution: up to 1080p
• Maximum image transfer rate: 1080p - 30fps
• High intensity LEDs for picture lighting during dark hours

Networking
• 10/100 Mbps Ethernet connection
• DHCP Client or Static IP
• Network-Time-Protocol

Door Entry Features
• Android OS for any 3rd party software or customization
• Internal DPDT relay for controlling a door opener;
• Relays controlled individually by DTMF tones or messages
• Multi-way Unlock: IC Card, and PassNumber;
• G-sensor for self-defence alarm
• Volume control for speaker
• Gain control for microphone
• Camera permanently operational, not just during calls
• White balance: auto
• Viewing angle: 3MP camera -120°; a second 5MP camera - 60° (For R29C only)
• Auto-night mode with LED illumination
• Minimum illumination: 1LUX (without LED illumination)
• Max call length setting

Application Scenarios
• Office door phone with on-site or hosted IP-PBX
• Remote site entry over Internet
• Apartment / flat intercom with door access control
• Business information or a welcome experience for guests

• 7-inch large capacitive touch screen (works with gloves on)
• Antispoofing face likeness detection
• Premium audio and video quality
• Real-time entrance monitoring
• Remote door opening
• Multiple access / authentication methods
• Dual cameras: one 120° wide-angle 3MP camera with IR and a second VGA 60° angle 5MP camera
• Flush or Surface mountable (back boxes sold separately)
• QR Code Scanner for 'single use' access
• Android 5.1/SIP/ONVIF/Wiegand/PoE/IP65
• Finish - Black
• Supports Carson Living Remote Concierge service

• Enclosure Rating IP65
• Installation Surface mount using R29XS backbox : Surface mount using R29XS backbox : Flush mount using R29XF back box (each sold separately)
• Card reader 13.56MHz & 125kHz

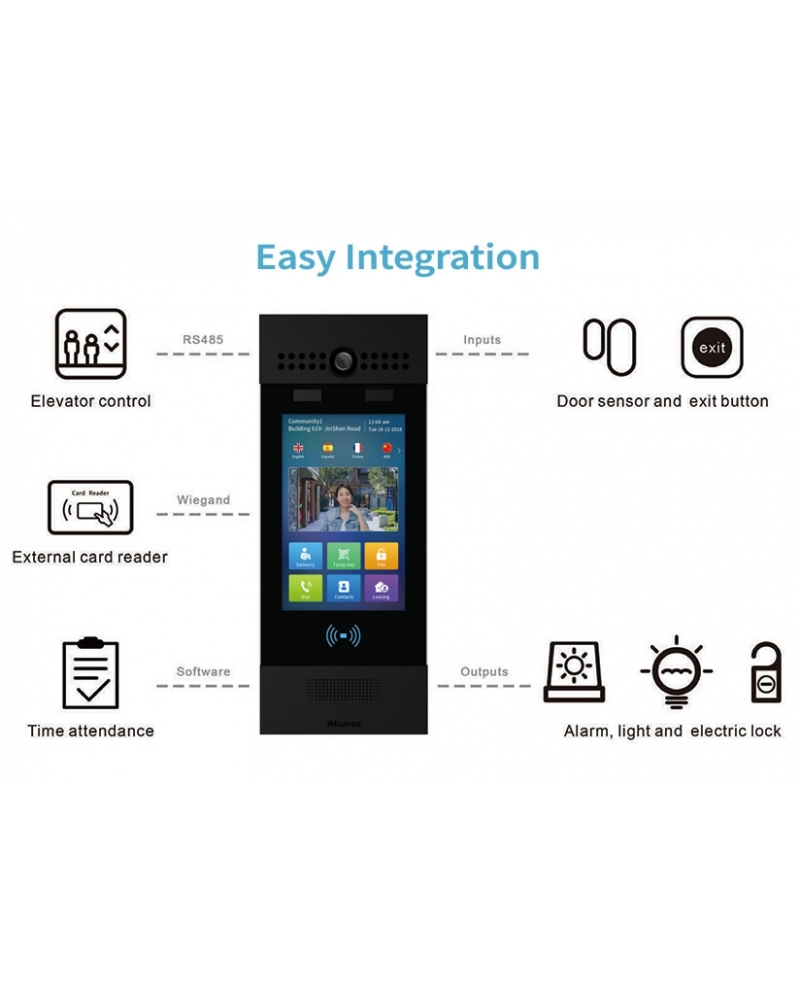

• Interface RS485 & Wiegand port
• Camera 3MP camera, automatic lighting; a second 5MP camera
• Screen 7 inch capacitive touch screen
• Number of Relays 3
• RAM/ROM 2/16GB
• Body material Aluminum
• Power PoE
• Dimensions 324(H) x 130(W) x 27(D) mm
• Weight (Net) 1.50kg
• Weight (Gross) 1.70kg
