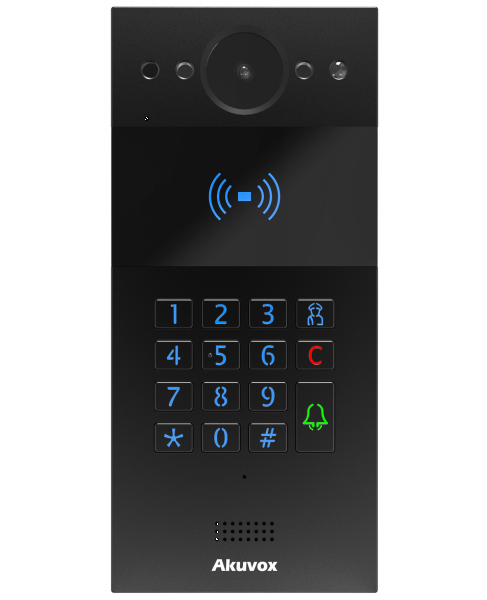

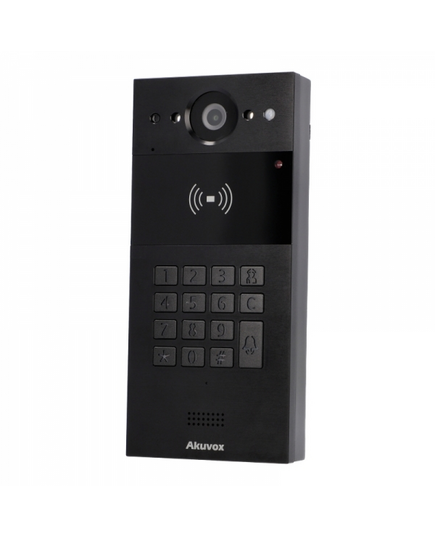

The new Akuvox R20KF-DRK IP Door Intercom is a highly-compact, IP-connected Door Intercom.

The latest addition to the Akuvox compact intercom range, this brushed black aluminium variant features a numeric keypad, high resolution colour camera, RFID card reader and NFC contactless via smart phone and secure remote audio/video communication and door entry.

Using the latest IP connectivity technology, the Akuvox R20KF-DRK intercom enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartment living, remote entrance gates and unmanned receptions.

• The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.
• The built-in NFC allows for contactless and secure access using NFC enabled smartphones.
• This model is supplied complete with flush-mount backbox.
• IP65 protection rating allows for internal and external location.

• IP connected Door Intercom
• Integrated RFID Card Reader
• NFC contactless via Smartphone
• IP65 protection rating
• Numeric keypad
• Wide-angle camera: 110°
• High resolution video: 1080p
• Complies with SIP standard for easy integration in every SIP capable PBXs
• Complies with ONVIF standard for easy integration with any network surveillance system
• Wide Dynamic Range for improved low light performance
• Flush mount version - including backbox

Description R20KF-DRK
Water-proof & Dust-proof protection rating IP65
Camera 2M pixels, with automatic lighting
RFID Card Reader 13.56MHz & 125kHz
Video Codec H.265 & H.264
Low light image performance Digital Wide Dynamic Range
Body Material Aluminium Alloy
Buttons 15 Key Numeric Keypad
Relays 2
Inputs 2
Colour Black brushed aluminium
Power Requirements PoE or 12v DC
PoE (IEEE802.3af, Power-over-Ethernet)
Installation Flush mounted (Backbox included)
Dimensions 185(H) x 85(W) x 24(D) mm
Dimensions visible when flush mounted 226(H) x 108(W) x 13(D) mm
Weight (Net) 1.20kg
Weight (Gross) 1.80kg
