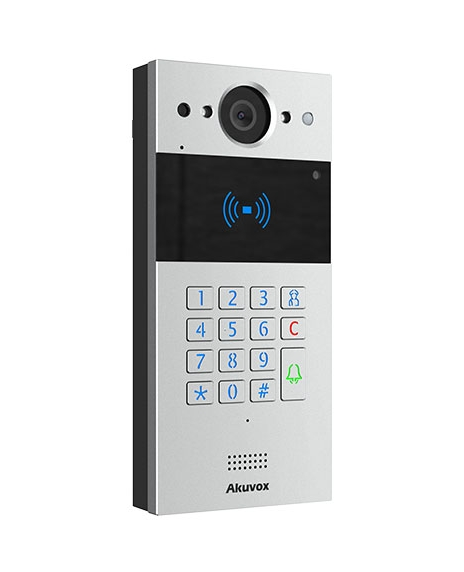

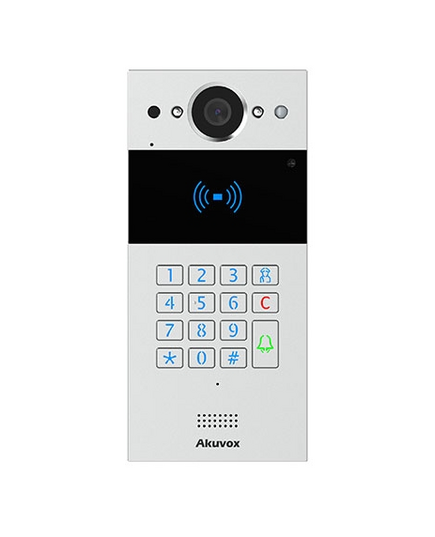

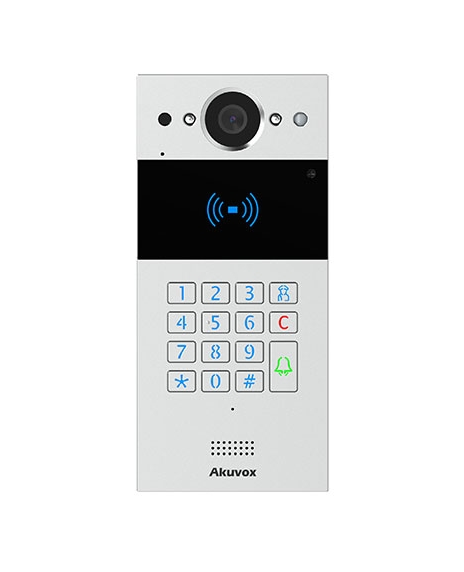

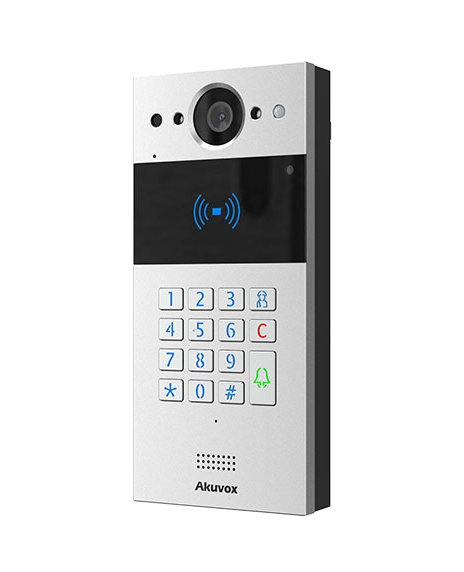

The Akuvox R20K-2 2-wire IP door intercom is ideal for premises with old wiring in the walls. The R20K-2 allows you to get the benefits of IP network- type system, whilst using the old wiring with no need to replace the whole system.

The R20K-2 is a highly-compact, IP-connected Door Intercom. It features a numeric keypad, high resolution colour camera, RFID card reader and NFC contactless via smart phone and secure remote audio/video communication and door entry.

Using the latest IP connectivity technology, Akuvox R20K-2 intercom enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs. This model is supplied complete with surface-mount backbox. IP65 protection rating allows for internal and external location.

• Two-pin wire for power supply and network acce
• Wide-angle camera: 110º (H), 58º (V)
• IC/ID Card Reader & Keypad embedded
• Two-way audio communication over IP networks with Echo Cancel & Noise suppression
• H.264 video compression

Description R20K-2

• Front panel Aluminum alloy
• Camera 2M pixels, automatic lighting
• Keypad Yes
• Light sensor Support
• Infrared sensor Support
• Wiegand port Support
• RS485 port Support
• RF Card Reader 13.56MHz (with NFC) & 125kHz
• Microphone -40dB
• Relays out 1
• Inputs 1
• Speaker 4Ω / 3W
• Power Supply 48VDC two-wire power suppl
• Water-proof & Dust-proof IP65
• Working Humidity 10~90%
• Working Temperature -30°C ~ +60°C
• Storage Temperature -40°C ~ +70°C
• Installation Flush-mounted or Wall-mounted
• Flush-mounted dimensions 226 x 108 x 52 mm
• Wall-mounted dimensions 185 x 85 x 29 mm
• Weight (Net) 0.60kg
• Weight (Gross) 1.80kg
