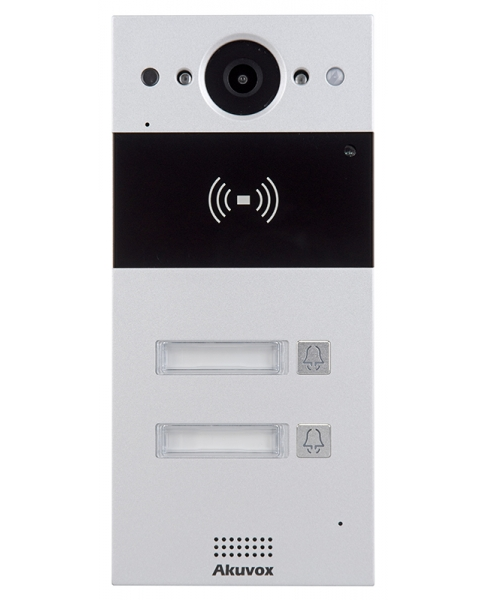

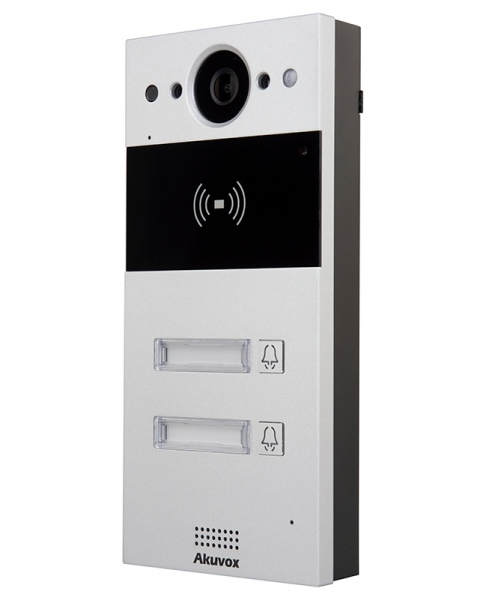

The Akuvox R20B2S  is a highly-compact, IP-connected Door Intercom. It features 2 Call Buttons with Nameplates, high resolution colour camera, RFID card reader and NFC contactless via smart phone for secure remote audio/video communication and door entry.

Using the latest IP connectivity technology, the Akuvox R20B2S intercom enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.
In addition, the built-in NFC allows for contactless and secure access using NFC enabled smartphones.

This model is supplied complete with surface-mount backbox.

IP65 protection rating allows for internal or external location.

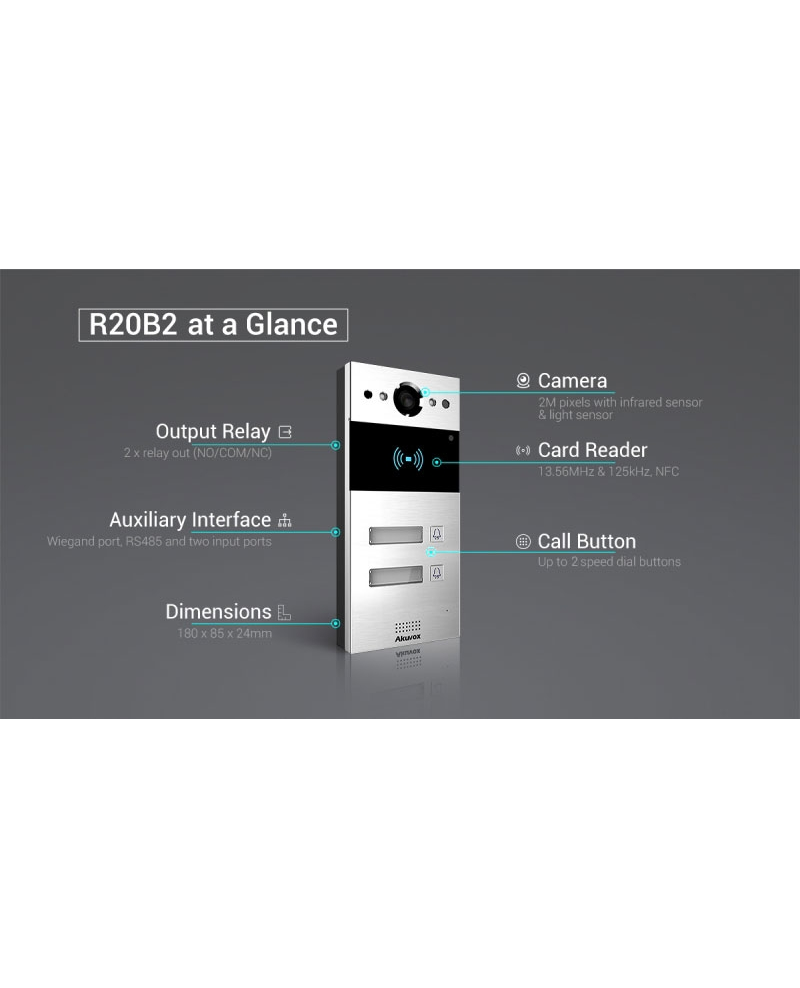

• IP connected Door Intercom
• Integrated RFID Card Reader
• NFC contactless via Smartphone
• IP65 protection rating
• 2 x Call Buttons
• Wide-angle camera: 110°
• High resolution video: 1080p
• Complies with SIP standard for easy integration in every SIP capable PBXs
• Complies with ONVIF standard for easy integration with any network surveillance system
• Wide Dynamic Range for improved low light performance

• Water-proof & Dust-proof protection rating IP65
• Camera 2M pixels, with automatic lighting
• RFID Card Reader 13.56MHz & 125kHz
• Video Codec H.265 & H.264
• Low image light performance Digital Wide Dynamic Range
• Body Material Aluminium Alloy
• Buttons 2 x Call Buttons and Nameplates
• Relays 2
• Inputs 2
• Power Requirements PoE or 12v DC
• PoE (IEEE802.3af, Power-over-Ethernet)
• Installation Surface mounted (Back box included)
• Dimensions 185(H) x 85(W) x 27.5(D) mm
• Weight (Net) 1.20kg
• Weight (Gross) 1.80kg
