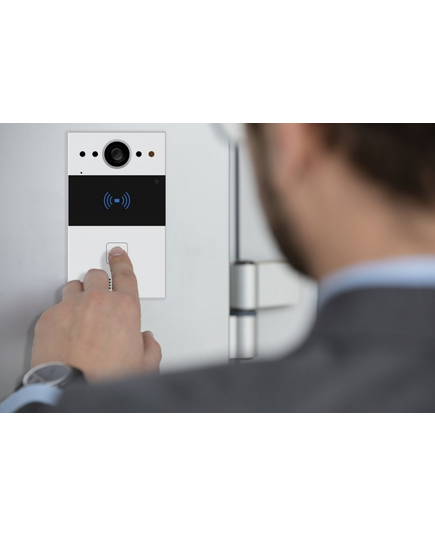

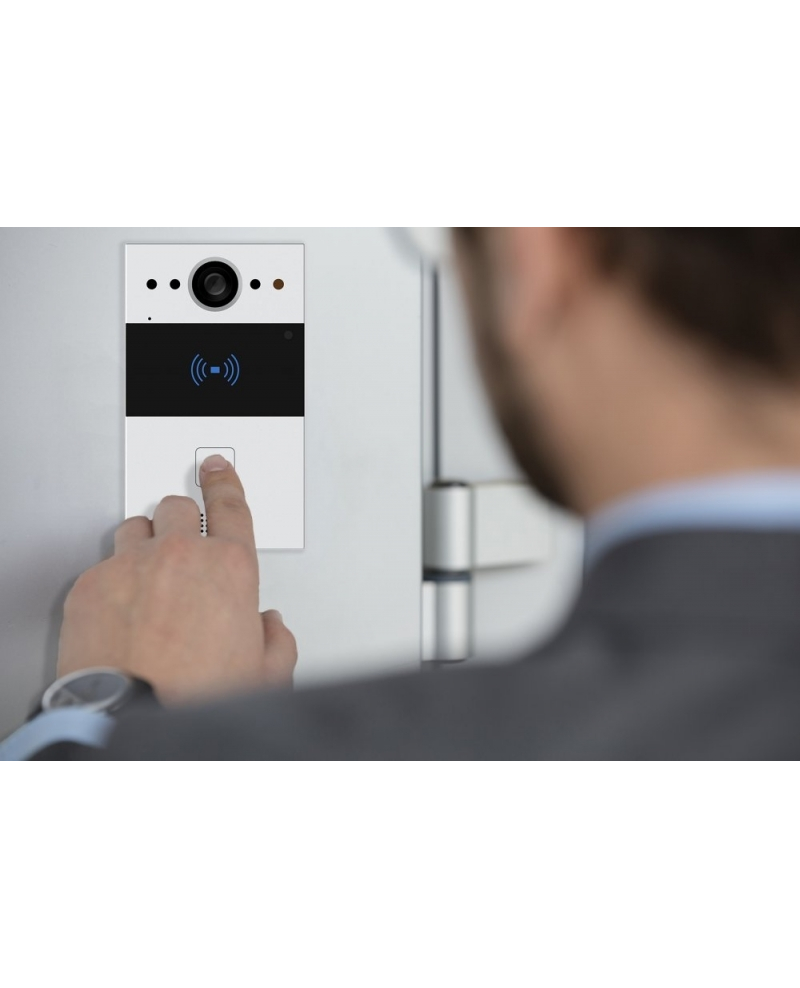

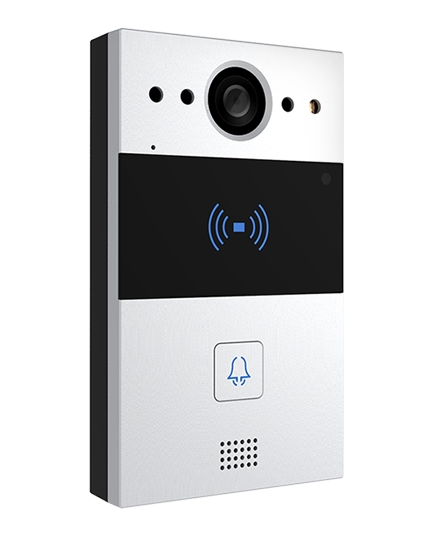

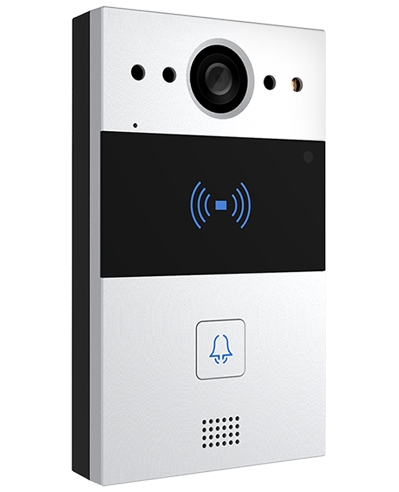

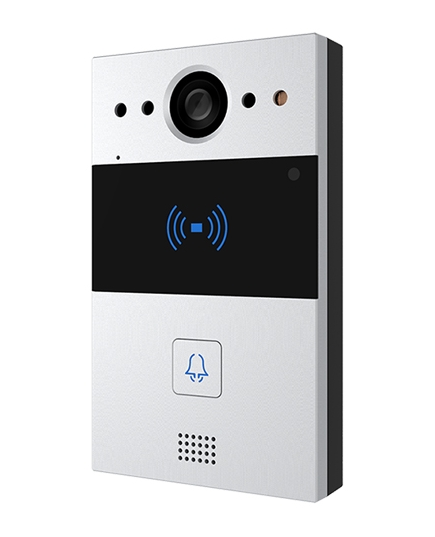

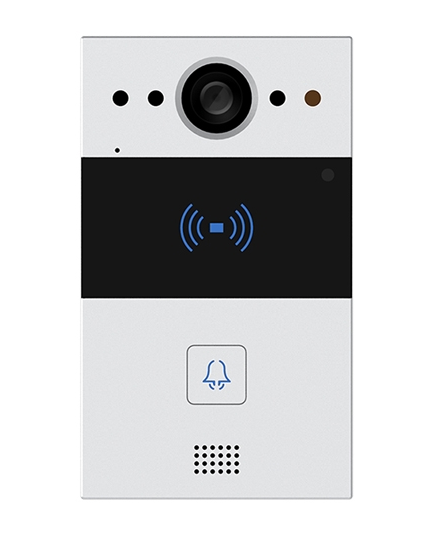

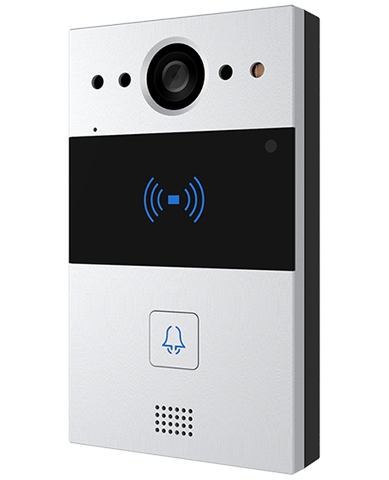

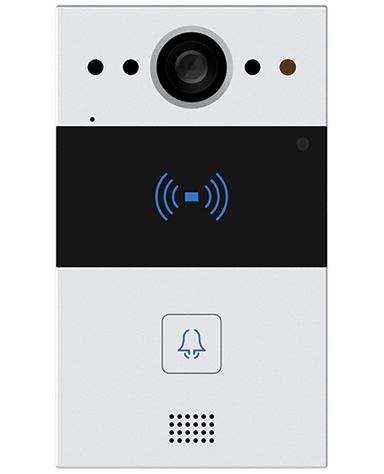

The R20AF SIP Intercom is a highly-compact, single call button, IP-connected Door Intercom, featuring high resolution colour camera and RFID card reader for swift , secure remote audio/video communication and door entry.

Using the latest IP connectivity technology, Akuvox R20AF enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.

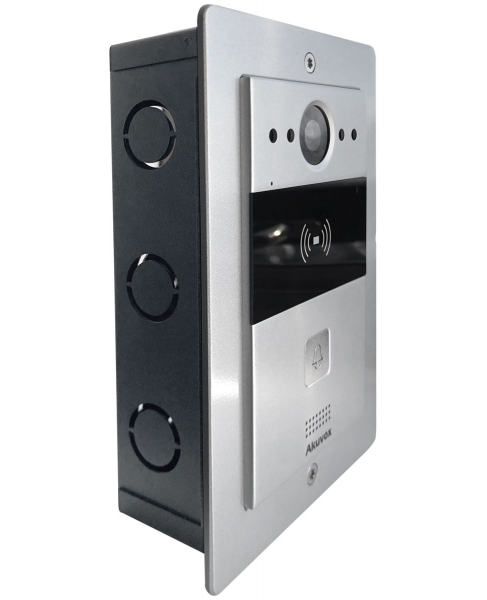

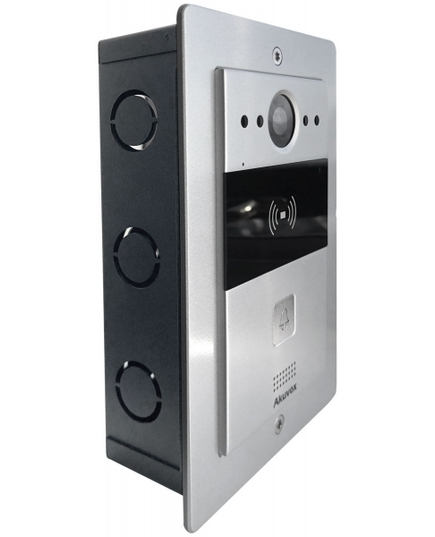

This model is supplied complete with flush-mount backbox.
IP65 protection rating allows for internal and external location.

SIP Endpoint
• SIP v1(RFC2543), SIP v2(RFC3261)
• Audio codecs: G.711a, G.711μ, G.722, G.729
• Video codecs: H.264
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator
• Door opener via DTMF post-dial

Video
• Resolution: up to 720p
• Maximum image transfer rate: 720p - 30fps
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Compatible to 3rdPartyVideo components, e.g. NVRs

Door Entry Features
• Relays controlled individually by DTMF tones
• Camera permanently operational
• White balance: auto
• Auto-night mode with LED illumination
• Minimum illumination: 0.1LUX
• Wiegand output for integration with 3rd party door release

Networking
• 1x10/100 Mbps Ethernet port
• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Application Scenarios
• Office door phone with on-site or hosted IP-PBX
• Remote site entry over Internet
• Apartment/flat intercom with door access control

IP connected Door Intercom
Single Call Button
Integrated RFID Card Reader
IP65 protection rating
Wiegand output for integration with 3rd party door release
Wide-angle camera: Horizontal 120°, Vertical 65°
PoE (IEEE802.3af, Power-over-Ethernet)
Two-way audio communication over IP networks with Echo Cancel feature
Complies with SIP standard for easy integration in every SIP capable PBXes
Complies with ONVIF standard for easy integration with any network surveillance system

Description R20AF

• Water-proof & Dust-proof protection rating IP65
• Camera 3M pixels, automatic lighting
• Button 1 call button
• G-sensor Supported
• Infrared Sensor Supported
• RS485 Supported
• RF Card Reader 13.56MHz & 125kHz
• Output Relay 2 output relays for remote door lock control
• PoE IEEE 802.3af
• Power Requirements PoE or 12v DC
• Installation Flush mounted (backbox included)
• Body Material Zinc alloy
• Overall Dimensions (incl backbox & faceplate) 190(H) x 120(W) x 55.5(D) mm
• Backbox Cut-out Dimensions 180(H) x 101.5(W) x 50(D) mm
• Dimensions visible when flush mounted 190(H) x 120(W) x 7(D) mm
• Weight (Net) 0.60kg
• Weight (Gross) 1.00kg
