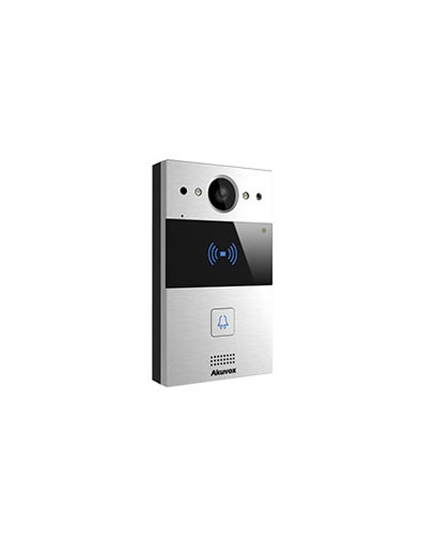

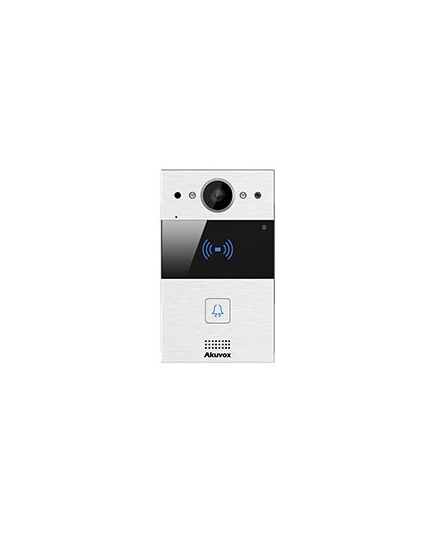

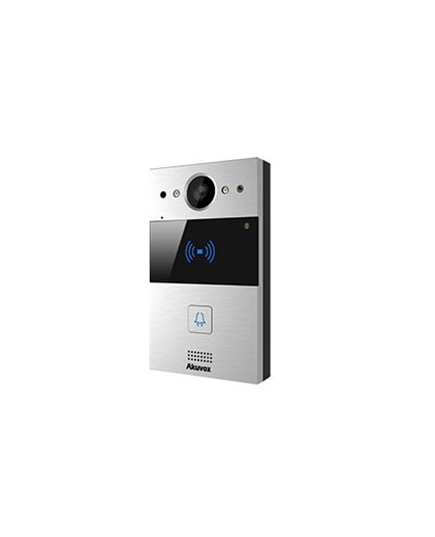

The Akuvox R20A-2 2-wire IP door intercom is ideal for premises with old wiring in the walls. The R20A-2 allows you to get the benefits of IP network- type system, whilst using the old wiring with no need to replace the whole system.

The R20A-2 SIP Intercom is a highly-compact, single call button, IP-connected Door Intercom, featuring high resolution colour camera and RFID card reader for swift , secure remote audio/video communication and door entry.

Using the latest IP connectivity technology, Akuvox R20A-2 enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs. This model is supplied complete with surface-mount backbox. IP65 protection rating allows for internal and external location.

• Vandal resistant body, with a flush butto
• Two-pin wire for power supply and network acc
• Wide-angle camera: 110º (H), 58º (V)
• IC/ID Card Reader embedde
• Two-way audio communication over IP networks with Echo Cancel & Noise suppressio
• H.264 video compression

Description R20A-2

• Camera 2M pixels, automatic lighting
• Button 1 call button
• Light sensor Support
• Infrared sensor Support
• Wiegand port Support
• RS485 port Support
• RF Card Reader 13.56MHz (with NFC) & 125kHz
• Microphone -40dB
• Speaker 4Ω / 3W
• Power Supply 48VDC two-wire power supply
• Water-proof & Dust-proof IP65
• Installation Flush-mounted or Wall-mounted
• Flush-mounted Dimensions 189 x 120 x 56.5 mm
• Wall-mounted Dimensions 145 x 85 x 27.5 mm
• Working Humidity 10~90%
• Working Temperature -30°C ~ +60°C
• Storage Temperature -40°C ~ +70°C
• Protocols Support IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
• Weight (Net) 0.60kg
• Weight (Gross) 0.70kg
