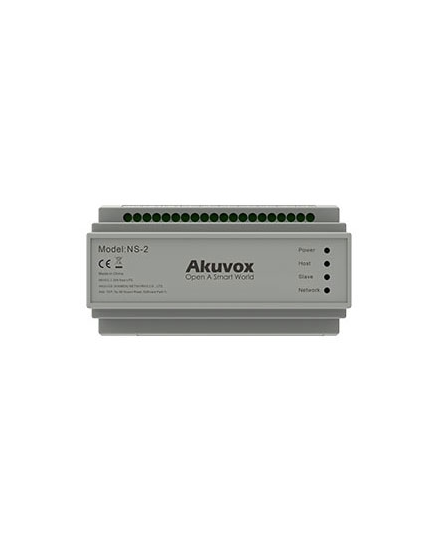

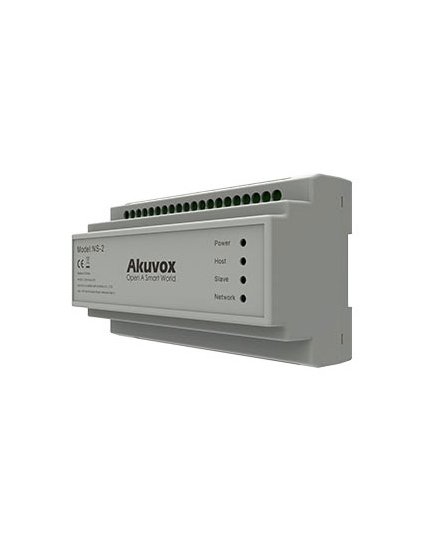

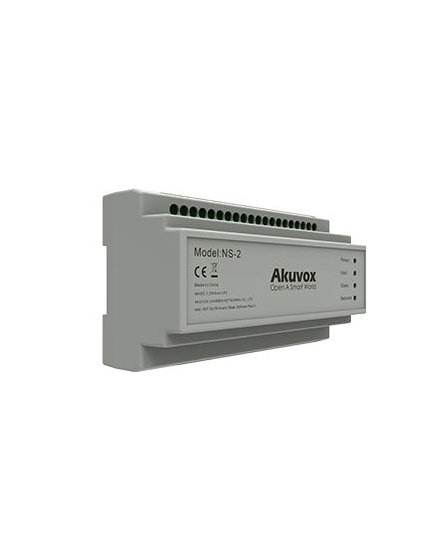

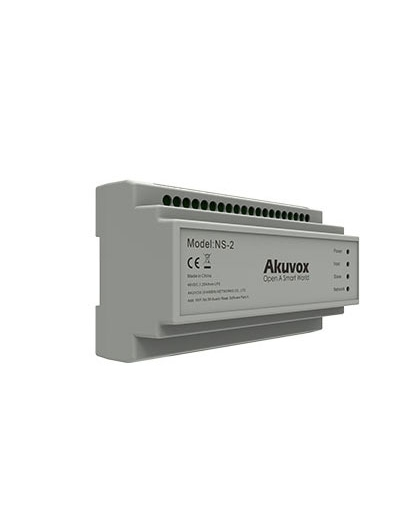

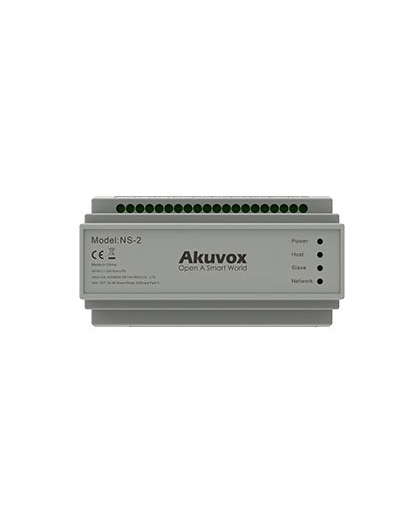

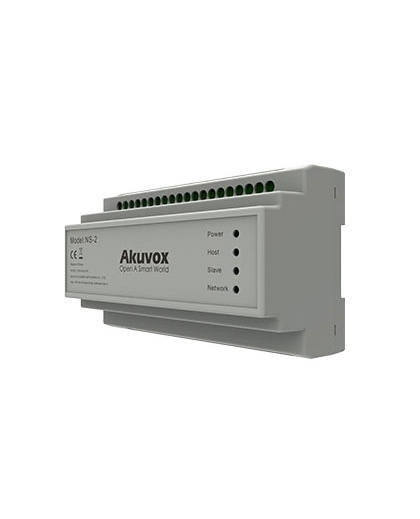

Akuvox - NS-2 Akuvox 2-Wire IP Network Switch
The Akuvox NS-2 is a 2-wire IP network switch, it provides a convenient way to upgrade analogue intercom systems with no need for rewiring. Its super long transmission distance & good compatibility with existing lines makes it fit for most of old buildings
- Support network and power supply for R20A-2 or C313W-2 through 2-wire cable
- Support multi-level cascade through 2-wire cable
- Connects up to 6 pcs of Akuvox 2-wire IP intercom devices
- Super long transmission distance via 2-wire cable
- Powerd by 48VDC or 24VDC power supply unit
- Rail mounting installation
Description NS-2
Communication TCP/IP
RJ45 Port 1 x RJ45 port, 10/100Mbps adapter
2-wire ports 6 pair
Working voltage 48V or 24V
Status Indicator 4
Installation Rail mounting
Working Temperature -20°C~+50°C
Storage Temperature -20°C~+70°C
Working Humidity 10%~90%
Dimensions 161 x 90 x 65 (mm)
Weight (Net) 0.20kg
Weight (Gross) 0.40kg
