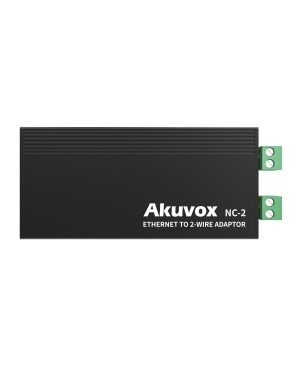

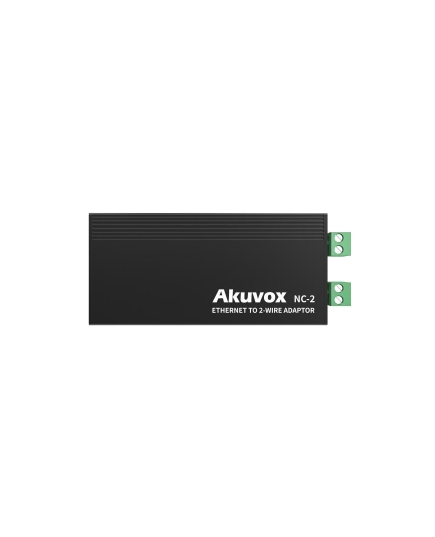

The Akuvox NC-2 is a 2-wire IP network switch which allows for any IP device to be connected using a standard 2-core cable (such as twisted pair). The NC-2 provides a convenient way to upgrade analogue intercom systems as there is no need for rewiring.

Ideal in retro-fit situations where there is a lack of availability of LAN cable in the existing infrastructure; existing 2-core cable can be utilised to transmit IP connected devices (such as IP door intercom, IP camera or IP telephone) or to add them to an existing analogue system.

The NC-2 can be used with the Akuvox NS-2 to connnect Akuvox doorphones to the 2-wire IP intercom network.

• Supports PoE Output
• Long transmission distance via 2-wire cable
• Support for paired use or use with Akuvox NS-2
• Powerd by 48VDC unit or NS-2

• Communication TCP/IP
• RJ45 Port 1 x RJ45 port, 10/100Mbps adapter
• 2 Wire Ports 1 pair
• Working voltage 48V
• Working Temperature -10℃~+50℃
• Storage Temperature -20℃~+70℃
• Working Humidity 10%~90%
• Dimensions 113(W) x 48(H) x 25(D) mm
• Weight (Gross) 0.30kg
