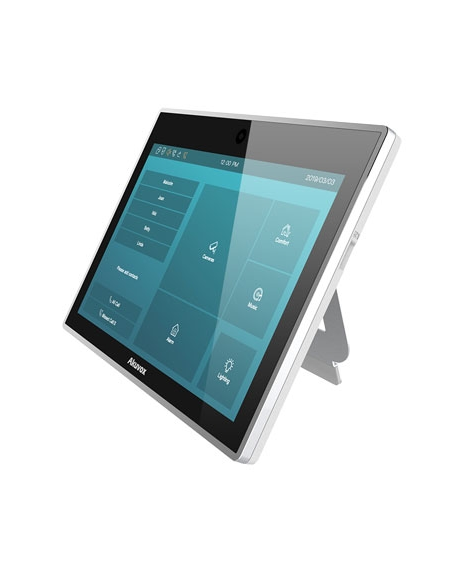

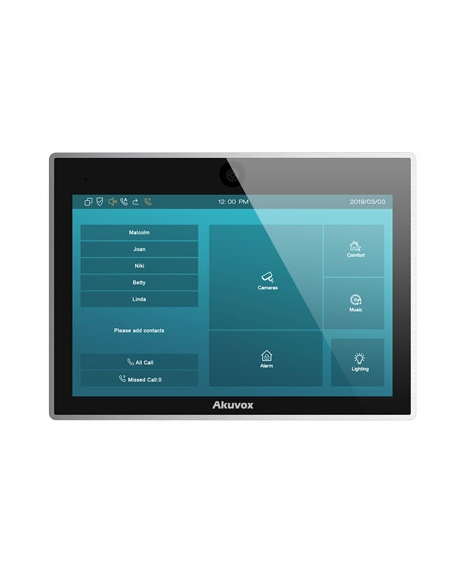

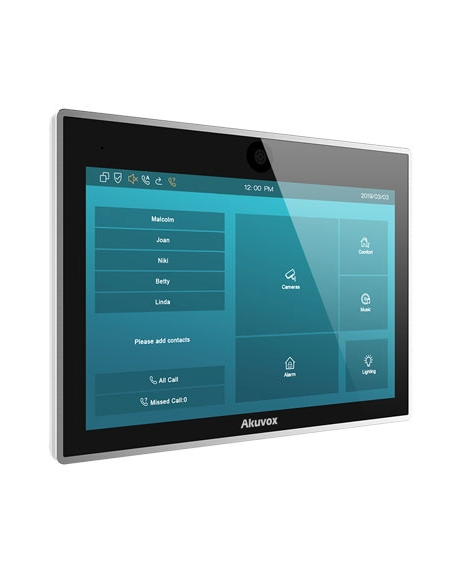

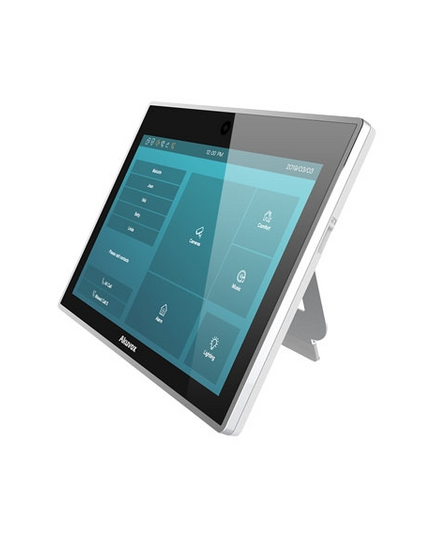

The IT83W Indoor Touchscreen Intercom is a multi-functional modern home security device featuring WiFi and Bluetooth capabilities with SIP PBX.

The IT83W is Android OS 6.0 and features capacitive touch screen with exceptional audio communication for identifying and allowing access into a building.

The IT83W can be used for room-to-room communication using SIP 2.0 protocol.

The rich interface featured in the IT83W is easy to integrate into a pre-existing digital installation where home automation or where tele health care in applications such as residential care homes may be necessary.

The user-friendly interface is easy to use offering a simple solution with minimum training  for users to operate.

The Akuvox Range:
Akuvox provides a series of high-end Intercom systems used in a wide-range of applications and encompasses a variety of products with different combinations of; SIP telephone, Touchscreen, Camera, Numeric Keypad, Card Reader, Facial Recognition technology, Vandal-proof and IP rating.

Application Scenario
• Villas
• Apartment complexes
• Home automation systems
• Modern interiors

Alternative PART NUMBER: AKIT82W

• 10 inch touch screen with 1280 x 800 resolution with energy saving mode
• 8 channel inputs and 2 embedded relays
• Support 3rd-party apps
• Optional built-in SIP PBX function
• Desktop mount available
• Ultra clear, stylish appearance
• Tamper resistant design
• Reception of a HD picture from the door communicator
• Two-way communication with other units in the network, based on SIP v2.0 protocol
• Powered by PoE or external source

Description IT83W

• Touch Screen Display 10 inch LCD (Diagonal), Aspect Ratio 16:9, 1280 x 800, Contrast ratio: 800:1, Luminance: 350 cd/m², Projected Capacitive, Viewing Angle: ±89° Left, ±89° Right / ±89° Upper, ±89° Lower
• Display Mode Normally black, Transmissive
• Interface RS485: 1 RS485 port, Alarm: Support 8 channels input, 2 Relay Out (NO/COM/NC), 1 Relay In, Memory Slot: 1 Micro SD slot
• Memory RAM: 2GB, Flash: 8GB
• Ethernet 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant, Wifi optional
• Video Streaming Formats: H.264
• Audio Features: Built-in microphone and speaker
• Temperature -10° to 45°C
• Humidity 10% to 90% (non-condensing)
• Dimensions 182.5(H) x 251(W) x 22(D) mm
• Weight (Net) 1.50kg
• Weight (Gross) 1.95kg
