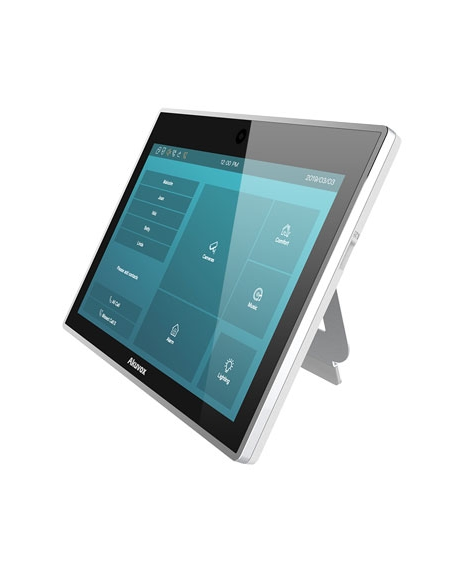

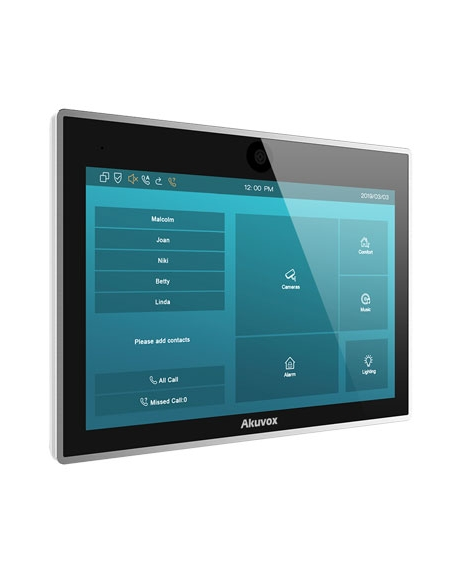

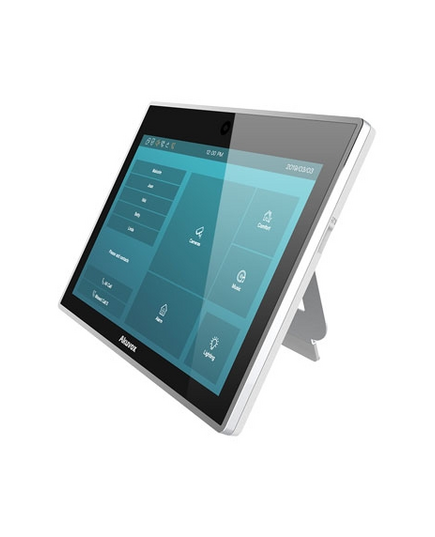

The IT83A Indoor Touchscreen Intercom is a multifunctional modern home security device with Camera featuring WiFi and Bluetooth capabilities with SIP PBX.

The IT83A is Android OS 6.0 and features capacitive touch screen with exceptional audio/video communication for identifying and allowing access into a building. The intercom supports real-time entrance monitoring through ONVIF/RTSP for view-to-view interaction.

The IT83A can be used for room-to-room communication using SIP 2.0 protocol.

The rich interface featured in the IT83A is easy to integrate into a pre-existing digital installation where home automation or where tele health care in applications such as residential care homes may be necessary.

The user-friendly interface is easy to use offering a simple solution with minimum training  for users to operate.

The Akuvox Range:
Akuvox provides a series of high-end Intercom systems used in a wide-range of applications and encompasses a variety of products with different combinations of; SIP telephone, Touchscreen, Camera, Numeric Keypad, Card Reader, Facial Recognition technology, Vandal-proof and IP rating.

Camera
• 1MP CMOS Camera

Application Scenario
• Villas
• Apartment complexes
• Home automation systems
• Modern interiors

• Android 6 OS
• 10-inch capacitive touch screen with energy saving mode
• Built-in 1MP CMOS camera
• Reception of a HD picture from the door communicator
• Two-way audio communication with other units in the network
• Complies with SIP standard for easy integration in every SIP capable PBXes
• Powered by PoE or external source
• Support US or European electrical wall box mounting
• Built-in smart voice assistant

• Camera 1MP CMOS Camera
• Screen 10 Inch capacitive touch screen
• Display mode Normally black, Transmissive
• Interface RS485: 1 RS485 port, Alarm: Support 8 channels input, 2 Relay Out (NO/COM/NC), 1 Relay In, Memory Slot: 1 Micro SD slot
• Memory RAM: 2GB, Flash: 8GB
• Audio Features: Built-in microphone and speaker
• Video Streaming Formats: H.264
• Ethernet 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant, Wifi optional
• Temperature -10°C ~ +45°C
• Humidity 10~90%
• Dimensions 182.5(H) x 251(W) x 22(D) mm
• Weight (Net) 1.50kg
• Weight (Gross) 1.95kg
