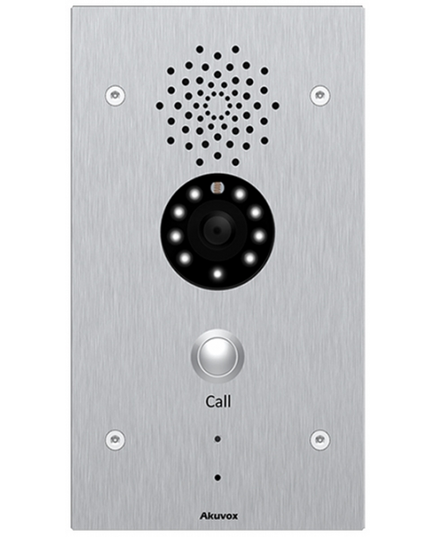

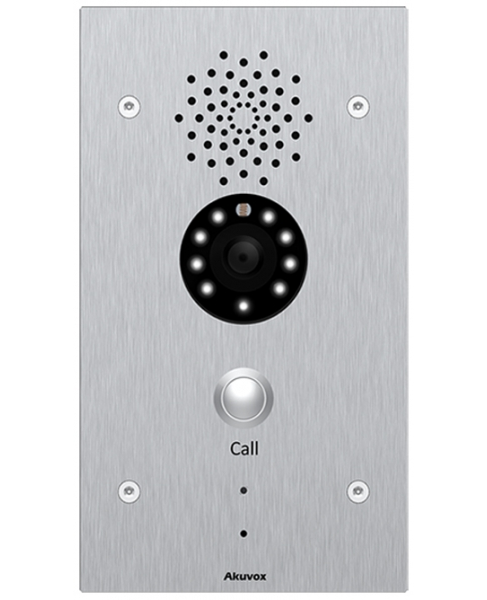

The E21V Vandal-resistant Intercom from Akuvox combines elegance and simple design with robust material to safeguard this product in public spaces. Audio and Video is featured for added security where visual two-way communication is ideal.

The Akuvox E21V robust Intercom features single call-button, colour camera and audio communication with high quality IP-rated microphone and loudspeaker.

The E21V provides immediate communication where security is a focus and can be used either indoors or outdoors thanks to an ingress protection rating of IP65.

This IP-connected professional intercom door station allows complete system control and distribution over LAN, WAN and web networks and is PoE (Power over Ethernet) compatible for greater installation flexibility.

Flush or Surface Mountable:

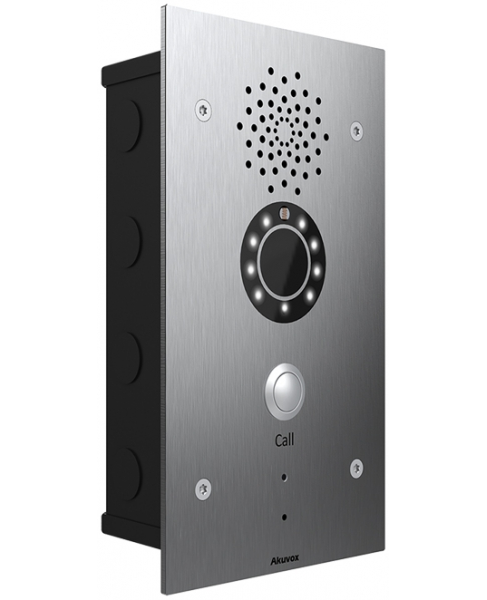

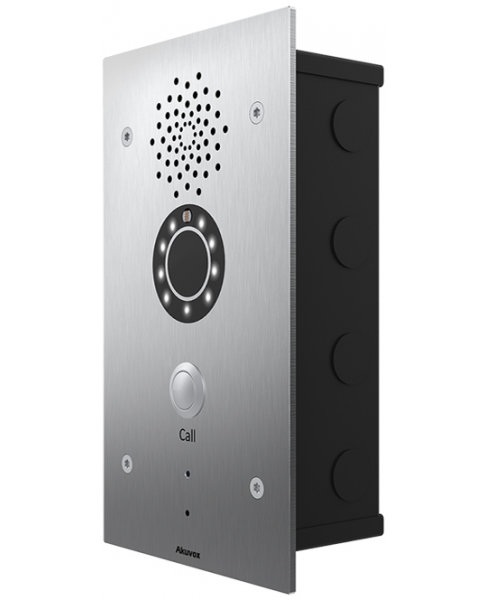

This unit can be flush-mounted (E21XF) or surface-mounted (E21XS Silver or E21XSBLK Black) using back box options sold separately.

Interface Features
• 2xRJ45 10/100 Mbps Ethernet ports
• Input relay: 2 relays for alarm alert
• Output relay: 2 relays for door opener

SIP Features
• SIP v1(RFC2543), SIP v2(RFC3261)
• Line: 2 SIP accounts

Audio Features
• 1 built-in microphone with IP67 rating
• 1.5W speaker with IP66 rating
• Codec: G.711a, G.711μ, G.722, G.729 and LPCM
• Speech quality: 7 kHz
• Echo cancellation
• Voice activity detection
• Comfort noise generator

Video Features
• Viewing angle: 116° (H) / 60° (U)
• Resolution: up to 1920 x 1080p
• Codec: H.264, MPEG-4 and MJPEG
• Support live stream and RTSP
• Compliance with ONVIF

Phone Features
• Auto-answering
• Volume control
• Direct IP calling
• Multi-language support

Application Scenarios
• Education: campuses
• Healthcare: hospitals, medical centers
• Logistics & Transportation: airports, parking facilities
• Industries: industrial parks of Manufacturing, Energy, Metal &  Mining, Chemical industries

• Vandal-resistant with 316 grade stainless steel body
• Outdoor-rated with IP67 grade microphone and IP66 grade speaker (overall IP65 rated)
• Premium audio and video quality
• 116° wide-angle 2MP camera with automatic lighting
• SIP/ONVIF/PoE
• Outdoor-rated with IP67 grade microphone and IP66 grade speaker (overall IP65 rated)
• Vandal resistant all-aluminium body
• Flush or Surface mountable (back boxes sold separately)

Description E21V

• Enclosure Rating IP65
• Camera Resolution 2M pixels
• Button 1 panic button and 1 reset button on board
• Call Status Indication 1 RGB LED (red, green, blue)
• PoE IEEE802.3af
• Power Consumption 12v DC input
• Flush-mount Installation Requires E21XF Back Box (sold separately)
• Surface-mount Installation Requires E21XS (silver) or E21XSBLK (black) Back Box (sold separately)
• Body Material 316 grade stainless steel
• Dimensions 210(H) x 120(W) x 61(D) mm
• Weight (Net) 0.85kg
• Weight (Gross) 1.00kg
