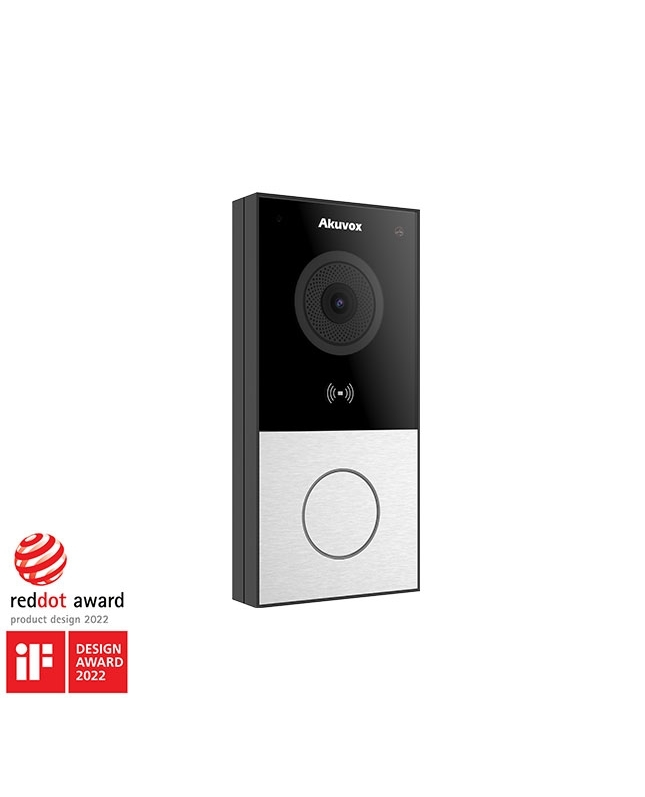

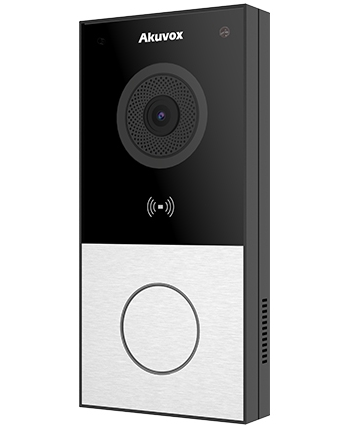

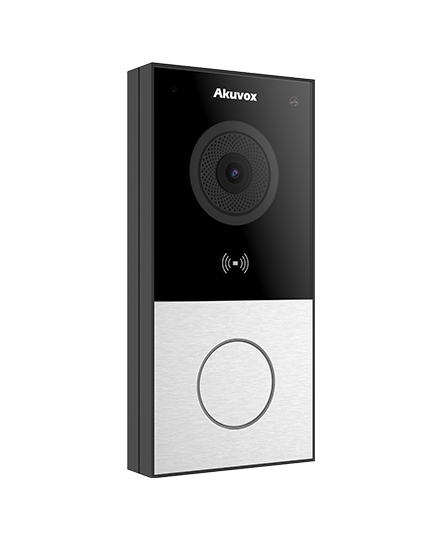

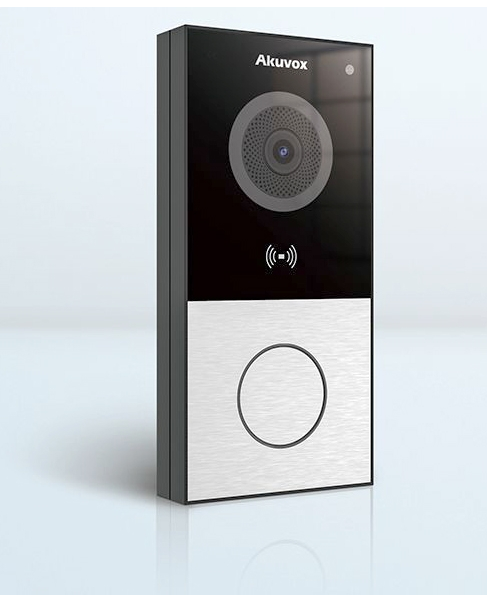

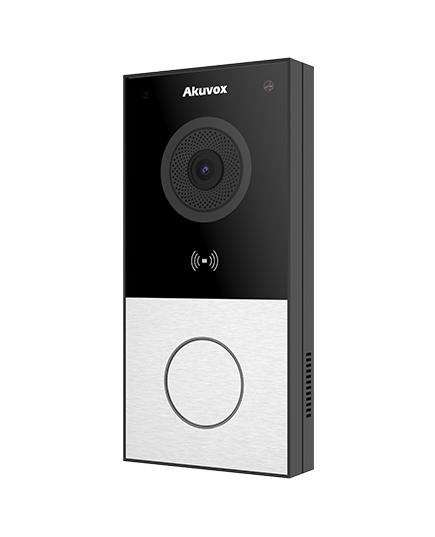

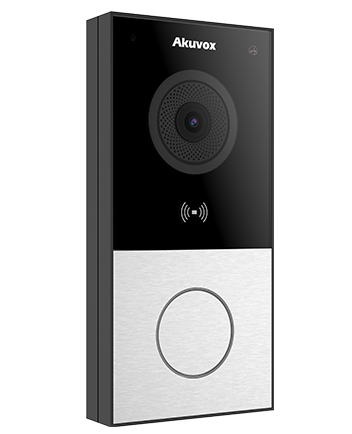

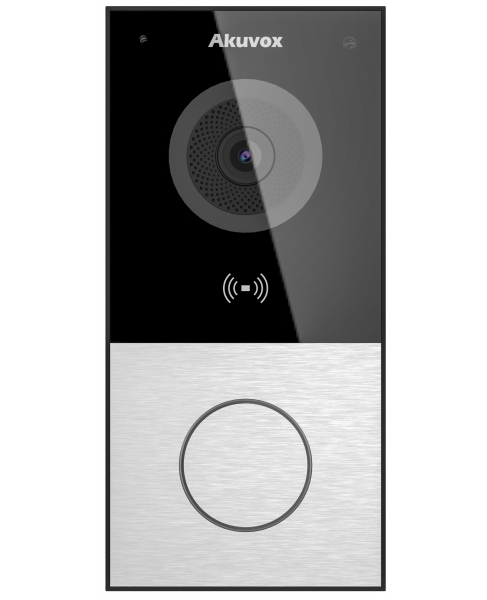

The E12W SIP Smart Doorbell is a highly-compact, single call button, IP-connected Door Intercom, featuring high resolution colour camera and RFID card reader for swift, secure remote audio/video communication and door entry.

Using the latest IP connectivity technology, the Akuvox E12W Doorbell enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.

WiFi Connectivity:
The E12W Door Phone features built-in WiFi connectivity which allows wireless connection to the network for easy installation (no wired Ethernet cable required - although a power supply is still required).
Finished in black and brushed aluminium and supplied with surface-mounting back plate.

Video
Resolution: up to 1080p
Maximum image transfer rate: 1080p - 25fps
High intensity IR LEDs for picture lighting during dark hours with internal light sensor
Compatible to 3rd­ Party­ Video components, e.g. NVRs
Door Entry Features
Integrated RFID Card Reader
Relays controlled individually by DTMF tones
Camera permanently operational
White balance: auto
Auto-night mode with LED illumination
Minimum illumination: 0.1LUX
Networking
1x10/100 Mbps Ethernet port
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
SIP Endpoint
SIP v1(RFC2543), SIP v2(RFC3261)
Audio codecs: G.722
Video codecs: H.264, H.265
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Door opener via DTMF post-dial
Application Scenarios
Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment/flat intercom with door access control

• IP connected Door Intercom
• Single Call Button (illuminated)
• Integrated RFID Card Reader

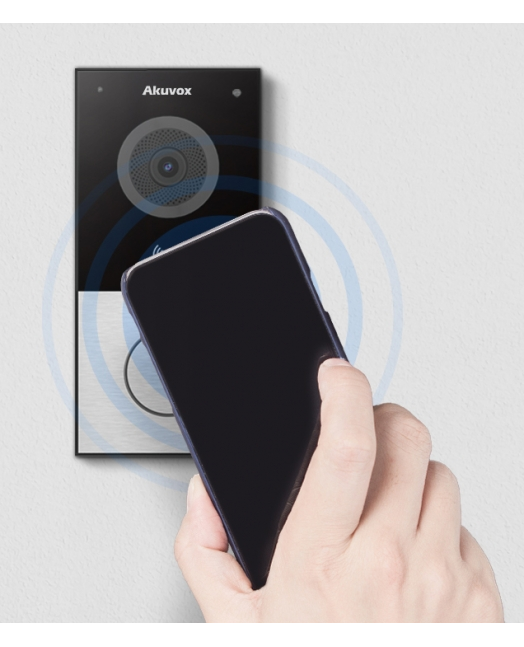

• Access Control authentication via RFID or Bluetooth BLE
• IP65 rated for indoor & outdoor applications
• WiFi network connectvity
• Wide-angle camera: Horizontal 123º, Vertical 69º
• Two-way audio communication over IP networks with Echo Cancel feature
• Easily integrates with SIP Systems
• Power supply via PoE or adapter
• Finished in black plastic and brushed aluminium

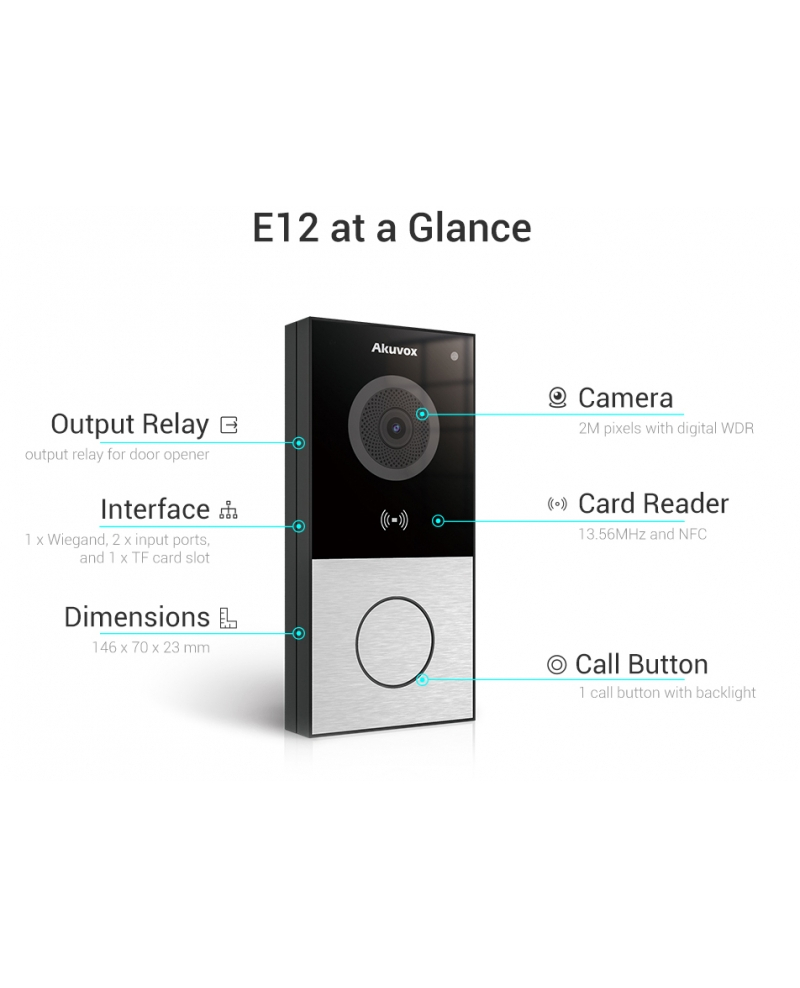

• Colour Black and brushed aluminium
• Body material Plastic and aluminium

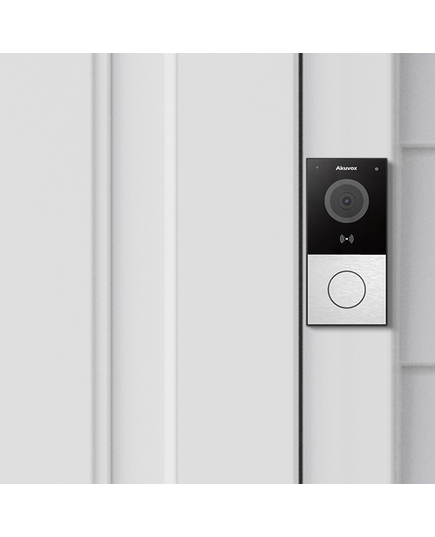

• Installation Surface mounted (back plate included)

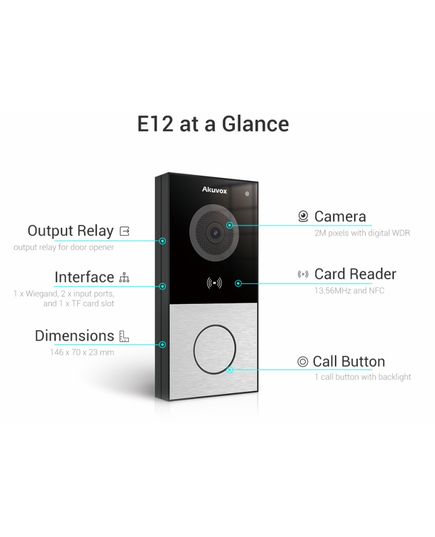

• Camera 2M pixels, automatic lighting
• Button 1 call button (illuminated)
• Relays Out 1
• Inputs 2
• Wiegand Support Yes
• Protection Rating IP65
• Bluetooth Authentication BLE
• RFID Card Reader 13.56MHz
• Output relay 2 output relays for remote door lock control
• Power Requirements PoE or 12v DC
• Dimensions 70(W) x 146(H) x 23(D) mm
• Weight (Net) 0.30kg
• Weight (Gross) 0.40kg
