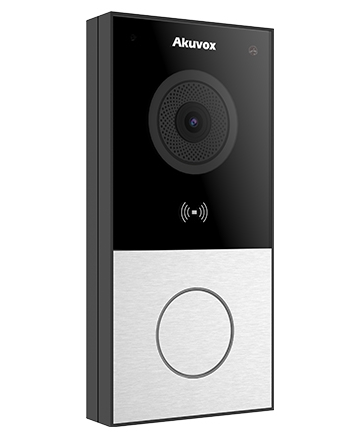

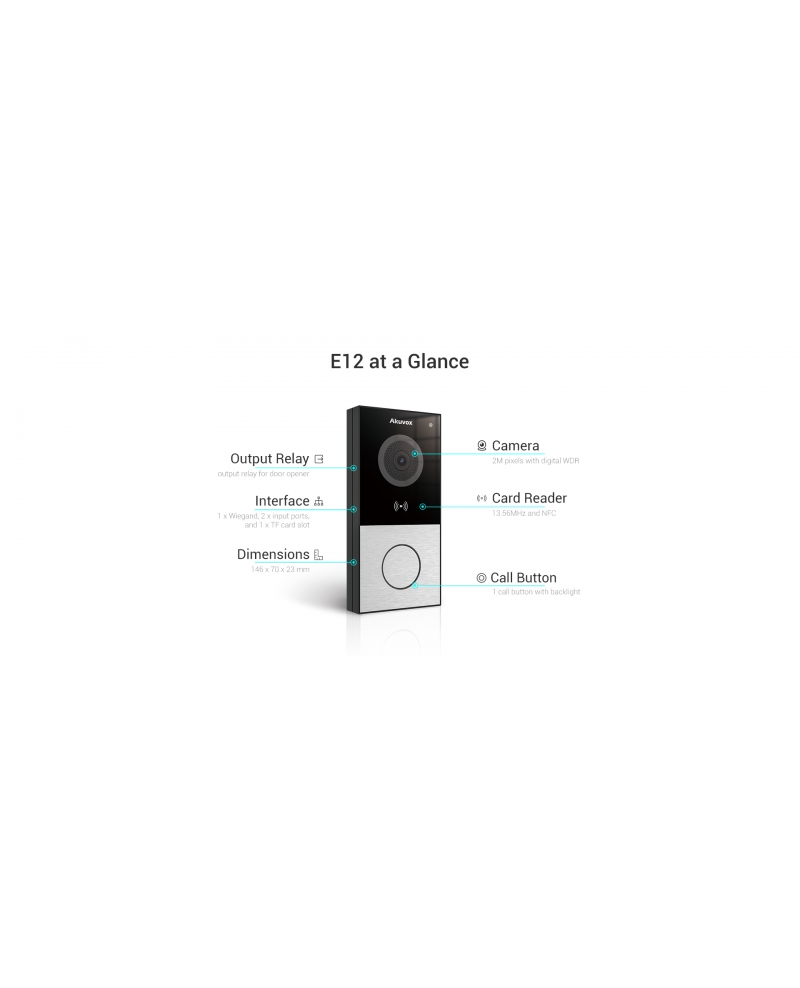

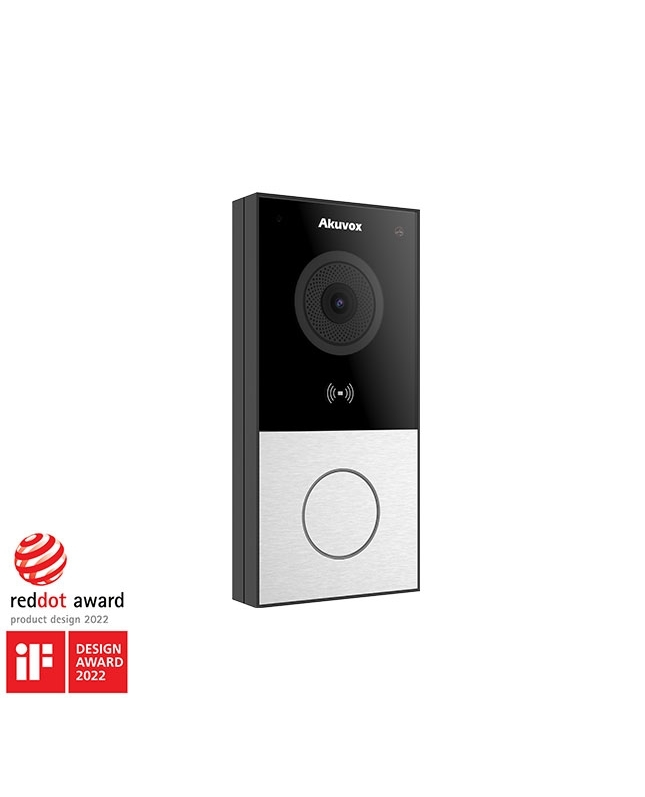

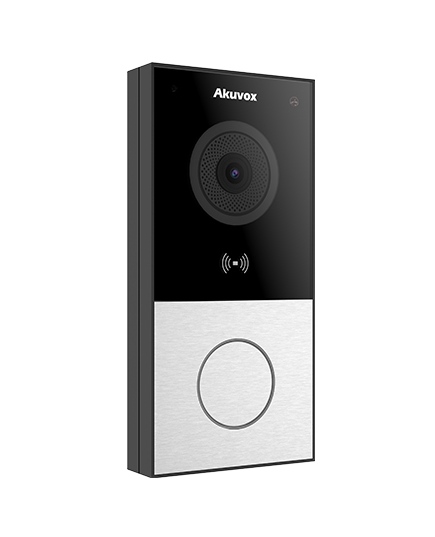

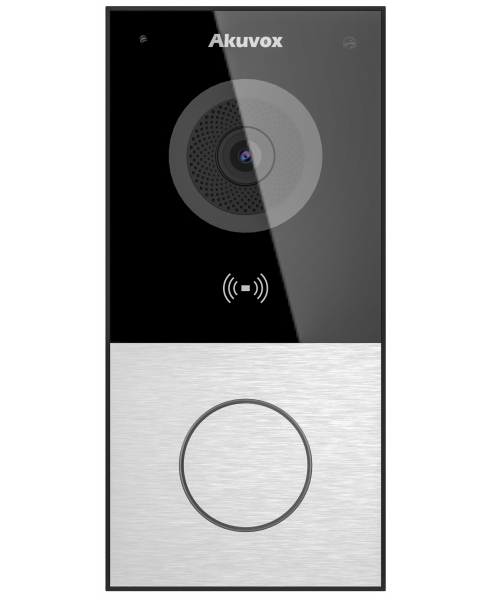

The E12S-2 2-Wire Smart Doorbell is a highly-compact, single call button, IP-connected Door Intercom, featuring high resolution colour camera and RFID card reader for swift, secure remote audio/video communication and door entry.

Using 2-Wire connectivity, the Akuvox E12S-2 Doorbell enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.
Finished in black and brushed aluminium and supplied with surface-mounting back plate.

• Resolution: up to 1080p
• Maximum image transfer rate: 1080p - 25fps
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Compatible to 3rd­ Party­ Video components, e.g. NVRs

• Integrated RFID Card Reader
• Relays controlled individually by DTMF tones
• Camera permanently operational
• White balance: auto
• Auto-night mode with LED illumination
• Minimum illumination: 0.1LUX

• 1x10/100 Mbps Ethernet port
• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

• SIP v1(RFC2543), SIP v2(RFC3261)
• Audio codecs: G.722
• Video codecs: H.264, H.265

• Voice Activation Detection
• Comfort Noise Generator
• Door opener via DTMF post-dial

• 2-Wire Door Intercom
• Single Call Button (illuminated)
• Integrated RFID Card Reader

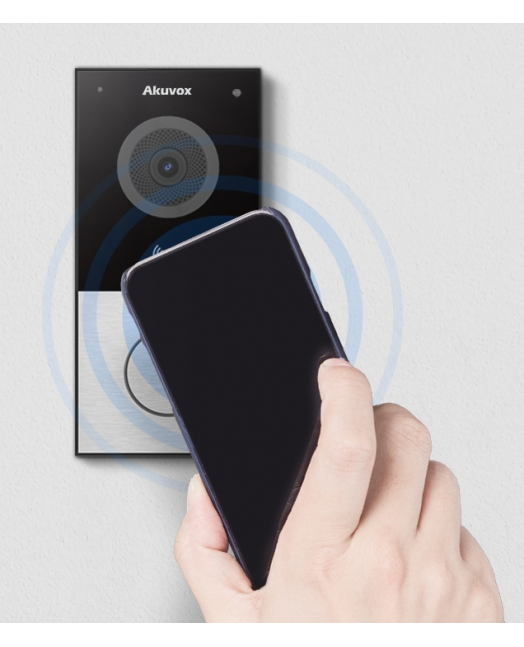

• Access Control authentication via RFID or Bluetooth BLE
• IP65 rated for indoor & outdoor applications
• Wide-angle camera: Horizontal 123º, Vertical 69º
• Two-way audio communication over IP networks with Echo Cancel feature
• Easily integrates with SIP Systems
• Finished in black plastic and brushed aluminium

• Colour Black and brushed aluminium
• Body material Plastic and aluminium
• Installation Surface mounted (back plate included)
• Camera 2M pixels, automatic lighting
• Button 1 call button (illuminated)
• Relays Out 1
• Inputs 2
• Wiegand Support Yes
• Protection Rating IP65
• Bluetooth Authentication BLE
• RFID Card Reader 13.56MHz
• Output relay 2 output relays for remote door lock control
• Dimensions 70(W) x 146(H) x 23(D) mm
• Weight (Net) 0.30kg
• Weight (Gross) 0.40kg
