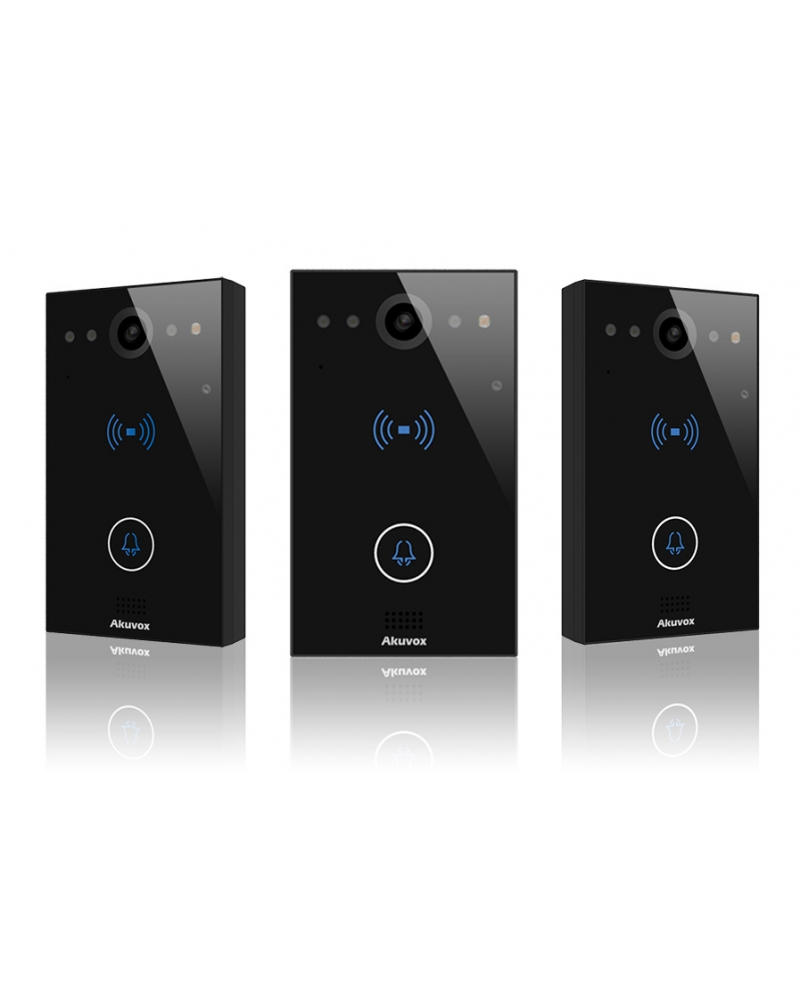

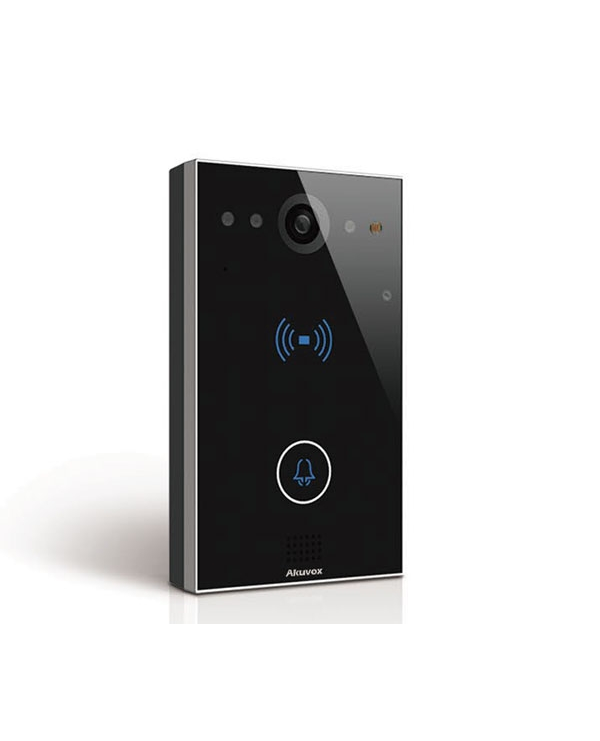

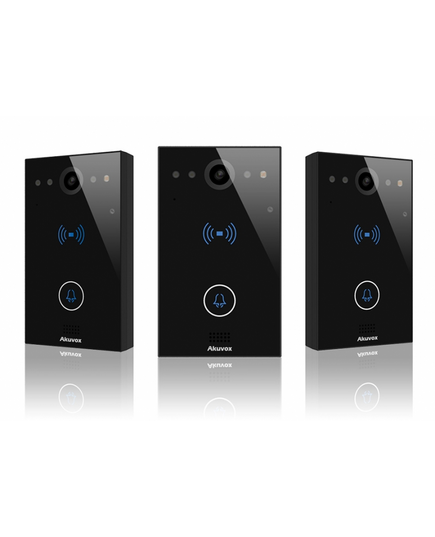

The E11R SIP Door Intercom is a highly-compact, single call button, IP-connected Door Intercom, featuring high resolution colour camera and RFID card reader for swift , secure remote audio/video communication and door entry.

Using the latest IP connectivity technology, the Akuvox E11R enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.

Finished in Black and supplied with surface-mounting back plate.

Video
Resolution: up to 720p
Maximum image transfer rate: 720p - 30fps
High intensity IR LEDs for picture lighting during dark hours with internal light sensor
Compatible to 3rd­Party­Video components, e.g. NVRs
Door Entry Features
Integrated RFID Card Reader
Relays controlled individually by DTMF tones
Camera permanently operational
White balance: auto
Auto-night mode with LED illumination
Minimum illumination: 0.1LUX
Networking
1x10/100 Mbps Ethernet port
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
SIP Endpoint
SIP v1(RFC2543), SIP v2(RFC3261)
Audio codecs: G.711a, G.711μ, G.722, G.729
Video codecs: H.264
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Door opener via DTMF post-dial
Application Scenarios
Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment/flat intercom with door access control

• IP connected Door Intercom
• Single Call Button
• Integrated RFID Card Reader
• Wide-angle camera: Horizontal 116º, Vertical 60º
• PoE (IEEE802.3af, Power-over-Ethernet)
• Two-way audio communication over IP networks with Echo Cancel feature
• Complies with SIP standard for easy integration in every SIP capable PBXes
• Complies with ONVIF standard for easy integration with any network surveillance system

• Colour Black
• Body material Plastic
• Installation Surface mounted (back plate included)
• Camera 2M pixels, automatic lighting
• Button 1 call button
• G-sensor Supported
• Infrared Sensor Supported
• RS485 Supported
• RF Card Reader 13.56MHz & 125kHz
• Output relay 2 output relays for remote door lock control
• Power Requirements PoE or 12v DC
• Dimensions 85(W) x 145(H) x 27.5(D) mm
• Weight (Net) 0.50kg
• Weight (Gross) 0.60kg
