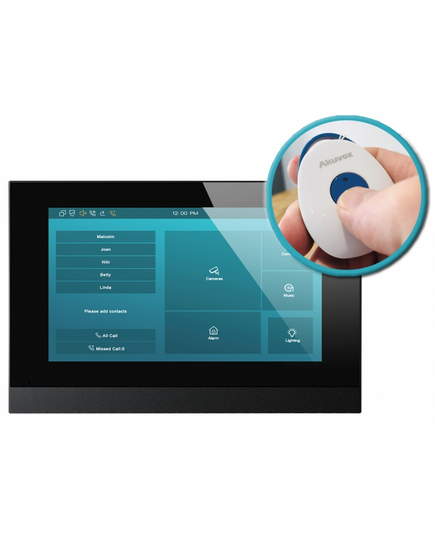

The Akuvox C315S(869) Indoor Intercom Panel is a cost-effective touchscreen answering panel featuring 7" full-colour screen and is fully compatible with the EP10 Emergency Call Telecare Pendant.

Providing HD video and high quality communication for door intercom & video phone systems via SIP 2.0 protocol, the Akuvox C315S(869) is ideal for residential and multi-point MDU door entry systems.

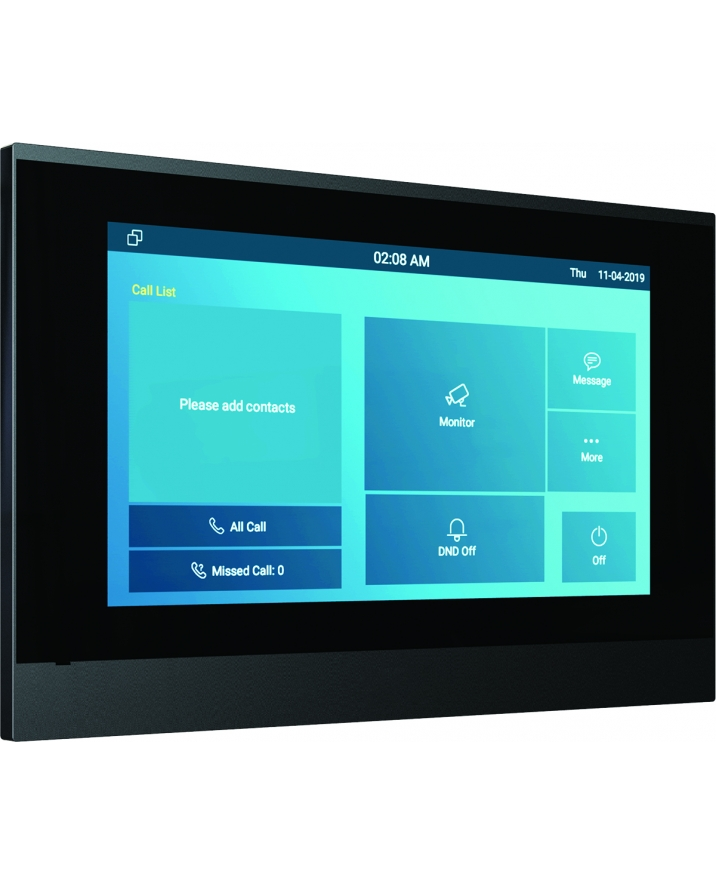

This IP-connected door answering panel provides a stylish, budget-friendly touchscreen experience in an unobtrusive, space-saving design featuring 7" HD capacitive touchscreen display.

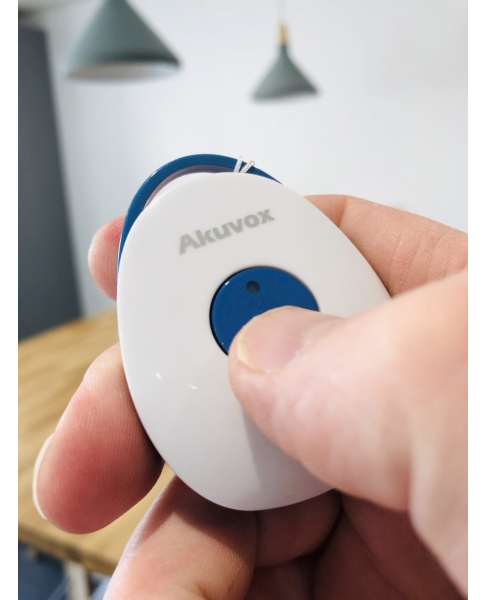

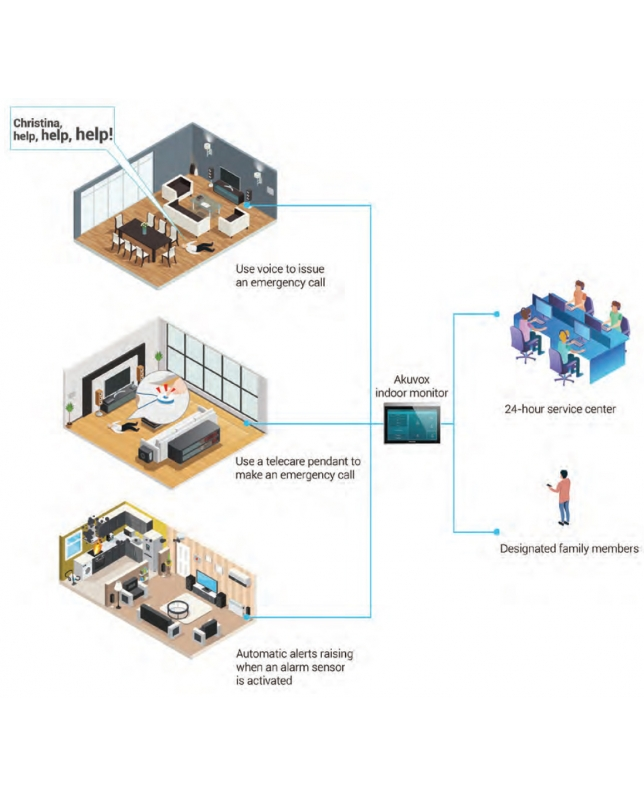

Compatible with the Akuvox EP10 Telecare Pendant, this allows elderly or infirm users and residents to simply press the pendant button to make an emergency call to a designated family member or twenty-four hour service centre should there be a fall or accident.
This product is supplied with 1x EP10 as part of the package.

Much more than just an internal door intercom, the C315S(869) uses a stylish, user-friendly interface featuring numerous pre-installed functions and applications and can be fully-integrated with other third-party, IP-connected / smart home devices (such as lighting, heating, blinds, etc) and automation platforms such as Control4.

• 7 inch capacitive screen
• Android operating system; simple to use, control and configure
• Remote door unlocking
• Receive video and audio from connected intercom / door access devices on the networkrece
• Easily integrates with SIP systems
• Finished in black
• Compatible with EP10 Emergency Call Telecare Pendant (comes supplied with 1 x EP10)

• Touch Screen Display Active matrix TFT, transmissive type, Aspect Ratio: 16:9, Resolution: 1024 x 600, Brightness: 300nits (cd/m²), Contrast: 800:1, Colour Depth: 24-bit, 16M colours, Illumination: Edgelit LED
• Touch Screen 7 inch (176 mm) diagonal, Projected Capacitive
• Video Streaming Formats: H.264
• Audio Built-in microphone and speaker
• Memory RAM 1GB, Flash 8GB
• Ethernet 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant
• Alarm Out: 1x Alarm output relay (Dry Contact), In: 8x Alarm input terminals
• Bell In: 1x Bell input terminal
• Telecare Pendant 1 x EP10 included
• Operating Temperature -10° to 45°C
• Humidity 10% to 90% (non-condensing)
• Dimensions (Panel) 132(H) x 200(W) x 17.5(D) mm
• Dimensions (Pendant) 57(H) x 43(W) x 18(D) mm
• Weight (Net) 1.00kg
• Weight (Gross) 1.30kg
