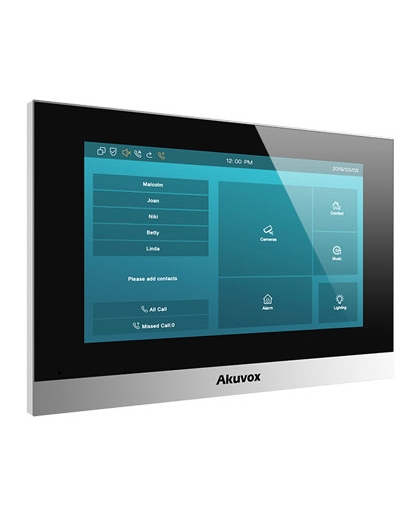

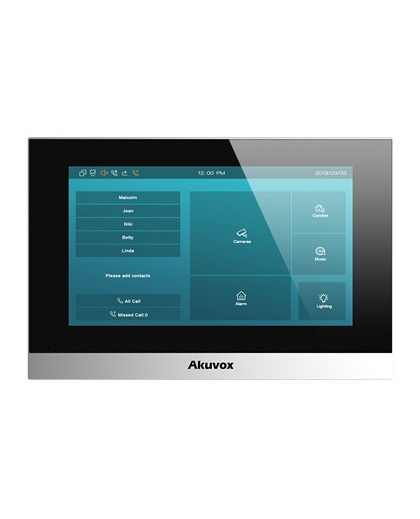

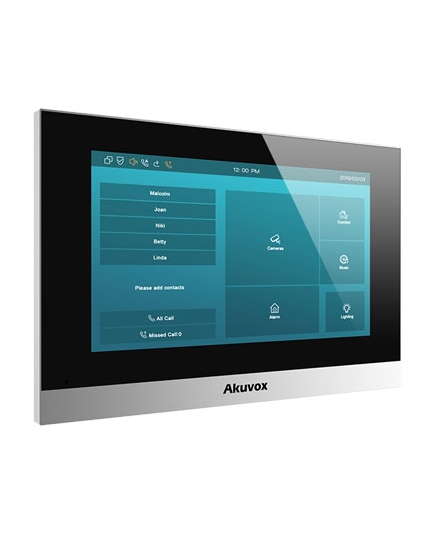

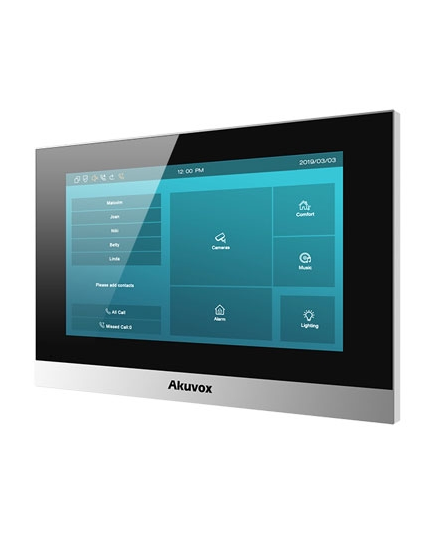

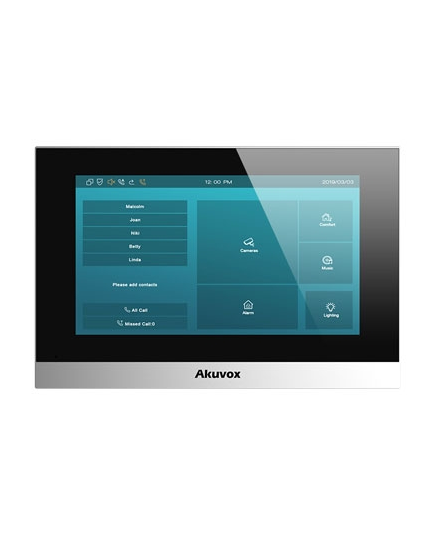

The Akuvox C313W-2 IP Indoor Touchscreen Intercom Answering Panel with a Linux (WiFi) operating system, provides audio and video communication with door phones via SIP 2.0 protocol.

The C313W-2 features a brilliant 7-inch capacitive touch screen display with energy saving mode .

The C313W-2 is 2 wire which allows for the IP device to be connected using a standard 2-core cable (such as twisted pair).

This option is ideal in retro-fit situations where there is a lack of availability of LAN cable in the existing infrastructure; existing 2-core cable can be utilized to transmit IP connected devices to add them to an existing analogue system.

• Ultra-clear, stylish appearance
• Thin profile and small footprint
• 7-inch capacitive touch screen with energy saving mode
• Two-way audio communication with other units in the 2-wire IP network
• Powered by NS-2 or external source
• Super long transmission distance via 2-wire cable
• Support US or European electrical wall box mounting

• RAM / ROM 64MB / 128MB
• Screen 7 Inch capacitive touch screen
• Display 7 Inch TFT LCD
• Wifi IEEE802.11 b/g/n, @2.4GHz
• Microphone -58dB
• Speaker 4Ω / 2W
• 2-wire ports 2 pair
• Ethernet ports 1xRJ45, 10/100Mbps adaptive
• Installation Wall-mounted & Desktop
• Working Humidity 0~90%
• Working Temperature -10°C ~ +45°C
• Storage Temperature -20°C ~ +70°C
• Protocols support Pv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
• Relay out 1
• Bell in 1
• I/O 8
• Dimensions 200.2 x 132.2 x 27.2 mm
• Weight (Gross) 0.00kg
