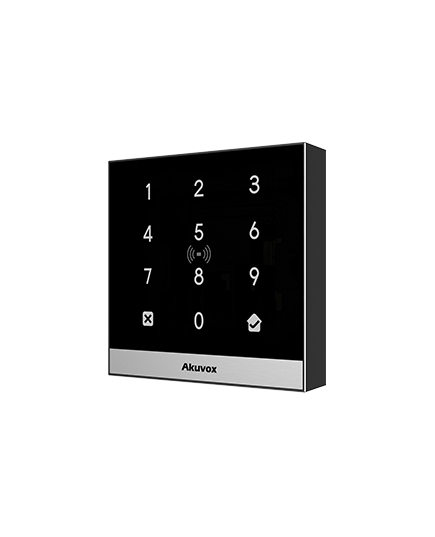

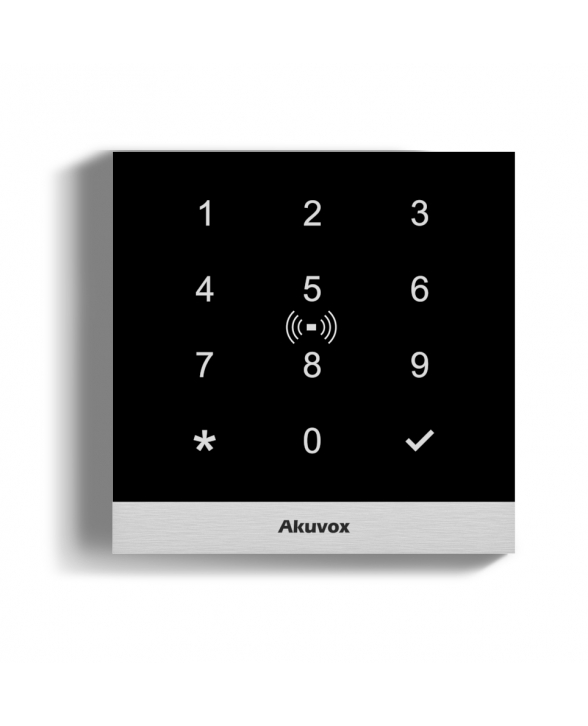

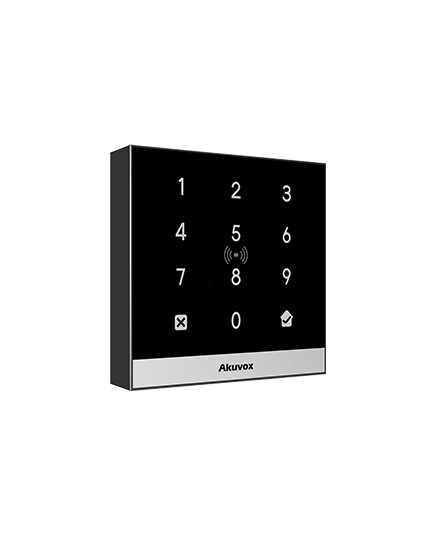

The Akuvox A02 Access Control Reader provides dual access authentication via Keypad, RFID and NFC - providing a flexible and secure door / gate access solution.
Part of the new Akuvox A0 Access Control Series, the A02 combines compact, modern design with simplicity and reliable performance.
The dual option authentication allows touch-free access via RFID cards & keyfobs or keyless access via smartphone NFC.

The A02 Access Reader is simple to order (out-of-the-box ready; no additional frames or backboxes required) and is fast & easy to install.

Can be Flush- or Surface-mounted. Includes surface-mount back plate.

• IP Access Control Reader
• Dual format access authentication via multi-frequency RFID, NFC & keypad
• Web interface administration
• Remote configuration and management
• Keyless entry via smartphone (NFC)
• 20,000 card capacity and 100,000 event log
• Tamper-proof alarm
• IP65 protection rating for indoor & outdoor applications
• Flush- or Surface-mountable

Description A02

• Power Supply PoE or 12V DC
• Recommended Cabling Cat5e or better
• Authentication Methods Keypad, RFID, NFC
• Dual Authentication Available as a combination of any two authentication methods
• RFID Supported Frequencies 13.56MHz, 125KHz
• Installation format Flush- or Surface-mounted
• Housing Material Aluminium Alloy
• Relay Port x1
• Input Port x2
• User ID Capacity Card Capacity - 20,000
• IP Protection Rating IP65
• Dimensions 86(W) x 86(H) x 33(D)mm
• Weight (Net) 0.30kg
• Weight (Gross) 0.40kg
